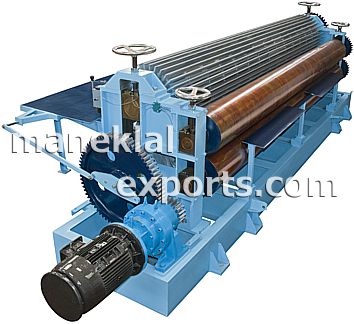

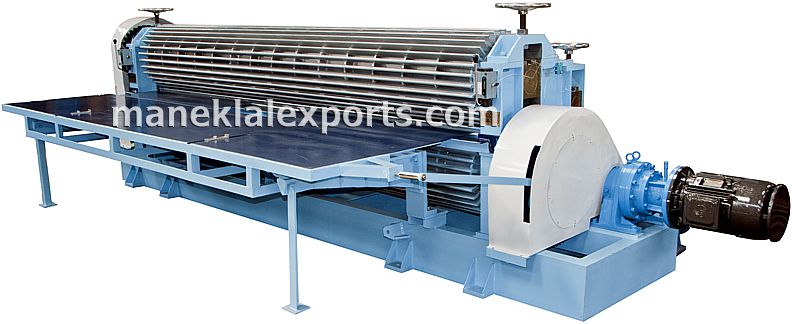

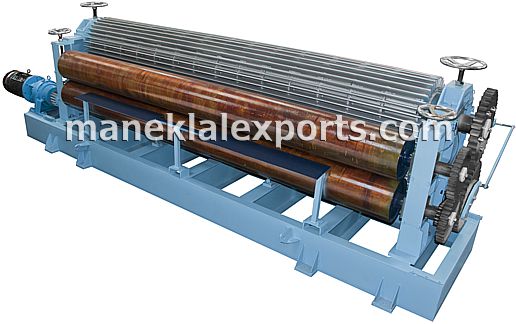

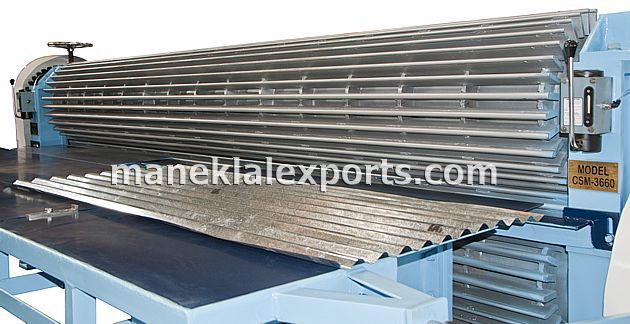

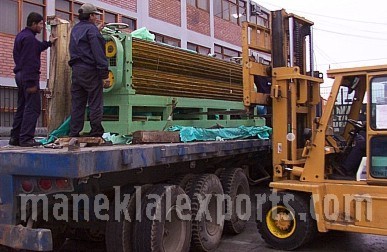

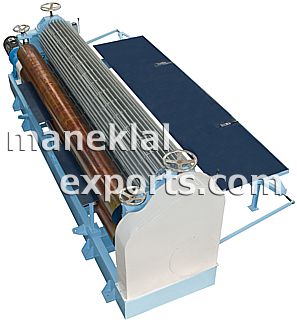

Corrugated Iron Roofing Sheet Making Machine
- Barrel Type (Crossway Corrugating Machine)

Specifications:

Model: CSM-3660/LD CSM-3660/LDX CSM-3660/SD CSM-3660/HDX CSM-3660/HD
Maximum Sheet Length (mm): 3660 3660 3660 3660 3660
Sheet Thickness (mm) in Full Hard: 0.14 - 0.20 0.14 - 0.30 0.17 - 0.30 0.18 - 0.50 0.30 - 0.60
Sheet Width (mm): 600 - 1250 600 - 1220 600 - 1250 600 - 1220 600 - 1250
Production Speed (m/min): 4.5 4.5 4.5 3.0 3.0
Number of Sheet at a time: up to 3 sheets up to 3 sheets (up to 0.28 mm) up to 3 sheets (up to 0.28 mm) up to 3 sheets (up to 0.28 mm) 1 sheet
Production Capacity (per 8 hours):
Single Sheet Feeding: 7200 7200 7200 4800 4800
Two Sheet Feeding: 14400 14400 14400 9600 --
Three Sheet Feeding: 21600 21600 21600 14400 --
Number of Corrugations: as per profiles shown as per profiles shown as per profiles shown as per profiles shown as per profiles shown
Corrugation Pitch (mm): 76.2 +/- 1.0 76.2 +/- 1.0 76.2 +/- 1.0 76.2 +/- 1.0 76.2 +/- 1.0
Corrugation Depth (mm): 16 +/- 1.5 16 +/- 1.5 16 +/- 1.5 16 +/- 1.5 16 +/- 1.5
Motor: 10 10 10 15 15
Net / Gross Weight (kg): 5000 / 6000 5000 / 6000 5000 / 6000 6000 / 7000 6000 / 7000
Case Dimensions (m): 5.8 x 1.25 x 1.85 5.8 x 1.25 x 1.85 5.8 x 1.25 x 1.85 5.8 x 1.25 x 1.85 5.8 x 1.25 x 1.85
Shipping Volume (m3 ): 14 14 14 14 14

Model: CSM-4260/LD CSM-4260/LDX CSM-4260/SD CSM-4260/HDX CSM-4260/HD
Maximum Sheet Length (mm): 4260 4260 4260 4260 4260
Sheet Thickness (mm) in Full Hard: 0.14 - 0.20 0.14 - 0.30 0.17 - 0.30 0.18 - 0.50 0.30 - 0.60
Sheet Width (mm): 600 - 1250 600 - 1220 600 - 1250 600 - 1220 600 - 1250
Production Speed (m/min): 4.5 4.5 4.5 3.0 3.0
Number of Sheet at a time: up to 3 sheets up to 3 sheets (up to 0.28 mm) up to 3 sheets (up to 0.28 mm) up to 3 sheets (up to 0.28 mm) 1 sheet
Production Capacity (per 8 hours):
Single Sheet Feeding: 7200 7200 7200 4800 4800
Two Sheet Feeding: 14400 14400 14400 9600 --
Three Sheet Feeding: 21600 21600 21600 14400 --
Number of Corrugations: as per profiles shown as per profiles shown as per profiles shown as per profiles shown as per profiles shown
Corrugation Pitch (mm): 76.2 +/- 1.0 76.2 +/- 1.0 76.2 +/- 1.0 76.2 +/- 1.0 76.2 +/- 1.0
Corrugation Depth (mm): 16 +/- 1.5 16 +/- 1.5 16 +/- 1.5 16 +/- 1.5 16 +/- 1.5
Motor: 10 10 10 15 15
Net / Gross Weight (kg): 5750 / 6750 5750 / 6750 5750 / 6750 6900 / 7900 6900 / 7900
Case Dimensions (m): 6.5 x 1.25 x 1.85 6.5 x 1.25 x 1.85 6.5 x 1.25 x 1.85 6.5 x 1.25 x 1.85 6.5 x 1.25 x 1.85
Shipping Volume (m3 ): 15.5 15.5 15.5 15.5 15.5

Standard Accessories:

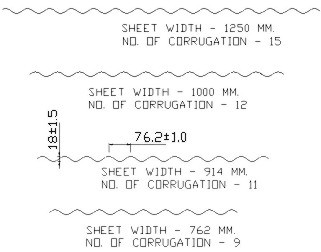

Profiles of Corrugation

Brief details of the machine parts:

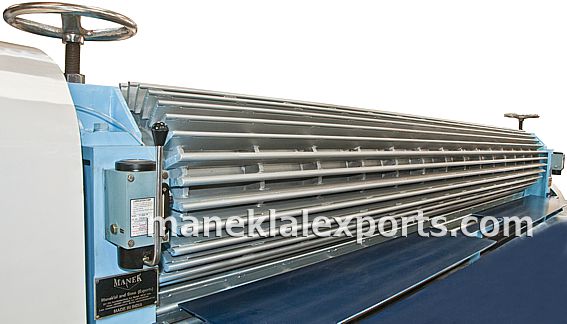

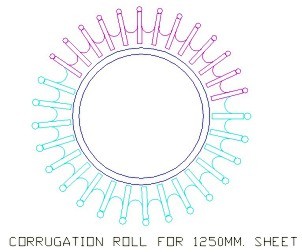

Corrugating roll 2 nos. fabricated with M.S. Pipe, shaft & flat Bar / Rod
Finish Roll 2 nos. fabricated with M.S. pipe and shaft
Roll stand 4 nos. fabricated with M.S. Plate
Moving table 1 no. fabricated with M.S. angle, plate, wheels
Tie Rod 3 nos.
Bearing block 8 nos. cast iron block with phosphor bronze liner
Up / Down Roll adjustment system 2 sets
Base frame fabricated with M.S. channel and plate
Foundation bolt 10 nos.
Drive Ac motor with reducer gear train / gear box
Electrical Panel 1 no.

VIDEO OF CSM-3660 MACHINE MAKING LARGE CORRUGATION

VIDEO OF CSM-3660 MACHINE IN PRODUCTION AT OUR CUSTOMERS' FACTORY

VIDEO OF AUTOMATIC CUT TO LENGTH LINE

VIDEO OF CSM-3660 MACHINE MAKING SMALL CORRUGATION

We also offer CUT TO LENGTH LINE - Please follow this link for details

We also offer ROLL FORMING LINE FOR MAKING CORRUGATED SHEETS - Please follow this link for details
