Wood Working Machines

Thickness Planer Surface Planer (Jointer) Circular saw
3 in 1 Planer + Saw 5 in 1 universal machine Planer Blade Grinder
Slotting Machine Vertical Spindle Moulder Tennoning Machine
Chisel Mortising Machine Chain Mortising Machine Jigsaw Machine
Wood Turning Lathe Vertical Band Saw Horizontal Band Saw

Autofeed Thickness Planer / Thickness Planer with Moulding Attachment

Autofeed Thickness Planer

ATP-13

Model: ATP-13 ATP-18 ATP-24
Thicknessing Capacity: 13" x 8" 18" x 8" 24" x 8"
Speed of cutter block (rpm): 5000 5000 5000
Diameter of cutter block: 3.5" 3.5" 3.5"
Motor (HP): 3.0 5.0 7.5
Net / Gross Weight (kgs): 450 / 600 500 / 650 600 / 750
Shipping Volume (m3): 1.00 1.10 1.50

Autofeed Thickness Planer with Moulding Attachment

Model: ATP-13M ATP-18M
Thicknessing Capacity: 13" x 8" 18" x 8"
Speed of cutter block (rpm): 5000 5000
Diameter of cutter block (Thicknesser): 3.5" 3.5"
Cutter block dia. x width (Moulding Attachment): 3.75" x 2" 3.75" x 2"
Table Size: 19" x 4" 19" x 4"
Table vertical movement: 2.75" 2.75"
Motor (HP): 3.0 5.0
Net / Gross Weight (kgs): 500 / 650 550 / 700
Shipping Volume (m3 ): 1.20 1.30

Standard Accessories:

Electric Motor, Starter, 'V' belts, Pulley and Guards

Surface Planer / Surface Planer combined with circular saw

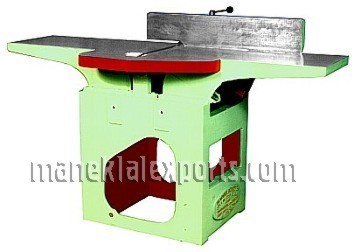

Surface Planer

Model: SP-6 SP-9 SP-13
Surface Planning Capacity: 6" 9" 13"
Length of table: 41" 48" 61"
Speed of cutter block (rpm): 5000 5000 5000
Diameter of cutter block: 3.35" 3.35" 3.35"
Motor (HP): 1.0 2.0 3.0
Net / Gross Weight (kgs): 125 / 175 170 / 210 250 / 300
Shipping Volume (m3): 1.00 1.30 1.40

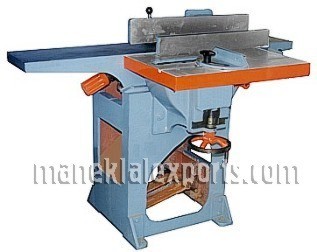

Surface Planer combined with Circular Saw

Model: SP-6C SP-9C SP-13C
Surface Planning Capacity: 6" 9" 13"
Length of table: 41" 48" 61"
Size of saw table: 9" x 12" 14.5" x 23.5" 14.5" x 23.5"
Saw size: 8" 10" 10"
Speed of cutter block (rpm): 5000 5000 5000
Diameter of cutter block: 3.35" 3.35" 3.35"
Motor (HP): 1.0 2.0 3.0
Net / Gross Weight (kgs): 150 / 200 190 / 225 275 / 325
Shipping Volume (m3 ): 1.10 1.40 1.50

Standard Accessories

Optional Accessories

Slotting Attachment

10"/12" Circular Saw with Rise, Fall & Tilting Table / Tilting Arbor Circular Saw

10" / 12" Circular Saw with Rise, Fall & Tilting Table

Model: CS-10/12
Dia. of saw Blade: 10" or 12"
Maximum depth of cut: 2.75"
Size of Table: 23.5" x 30.5"
Spindle Diameter: 3/4"
Saw Blade Speed (rpm): 3000
Motor (HP): 2.0
Net / Gross Weight (kgs): 175 / 220
Shipping Volume (m3 ): 1.30

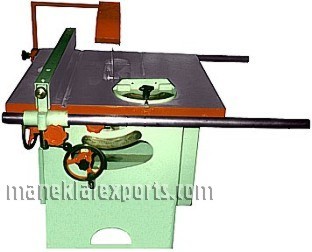

Tilting Arbor Circular Saw

Model: CS-12TA
Dia. of saw Blade: 12"
Maximum depth of cut: 3.25"
Size of Table: 31.5" x 31.5"
Spindle Diameter: 3/4"
Saw Blade Speed (rpm): 3000
Motor (HP): 2.0
Net / Gross Weight (kgs): 600 / 700
Shipping Volume (m3 ): 2.00

Standard Accessories

Electric Motor, Starter, 'V' belts, Pulley, Rip Fence, Mitre Gauge, Circular Saw Blade

Thickness Planer combined with Surface Planer / Thickness Planer combined with Surface Planer & 10" Circular Saw

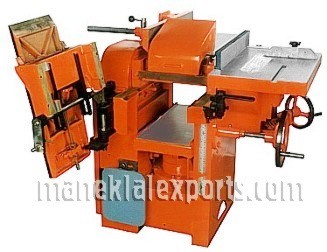

Thickness Planer, Surface Planer & Circular Saw

Machine: Thickness Planer combined with Surface Planer Thickness Planer combined with Surface Planer & 10" Circular Saw
Model: P/S-13 P/S/C-9 P/S/C-13
Thicknessing Capacity: 13" x 8" 9" x 8" 13" x 8"
Surface Planning Capacity: 13" 9" 13"
Saw Diameter: -- 10" 10"
Length of surfacing table: 45" 45" 45"
Diameter of cutter block: 3.5" 3.5" 3.5"
Motor (HP): 3.0 2.0 3.0
Net / Gross Weight (kgs): 600 / 800 450 / 550 650 / 850
Shipping Volume (m3 ): 1.30 1.40 1.50

Standard Accessories

Electric Motor, Starter, 'V' belts, Pulley, Guards, Rip Fence & Saw Blade (in machine combined with 10" circular saw)

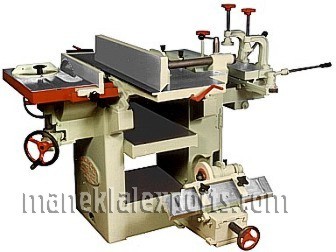

5 in 1 Universal Machine

Model: UM-5/1
Thicknessing Capacity: 13" x 8"
Surfacing Capacity: 13" x 45"
Saw Cutting Capacity: 2.5" (with 10" saw blade)
Slotting Attachment Cap.: up to 1/2"
Blade Grinding Capacity: 13"
Motor (HP): 3.0
Net / Gross Weight (kgs): 650 / 800
Shipping Volume (m3 ): 2.10

Standard Accessories

Electric Motor, Starter, 'V' Belt, Pulley, Mitre Gauge, Rip Fence, Drill Chuck, Circular Saw Blade and Grinding Wheel

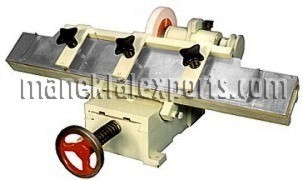

Planer Blade Grinder

Model: PBG-13 PBG-18 PBG-24
Max. Length of Knife Sharpening 13"
(328 mm) 		18"
(455 mm) 		24"
(610 mm)
Diameter of Grinding Wheel Required 6" x 1" x 3/4" 6" x 1" x 3/4" 6" x 1" x 3/4"
Speed of Grinding Wheel (rpm) 2800 2800 2800
Motor (HP) 0.5 0.5 0.5
Net / Gross Weight (kgs) 20 / 35 30 / 50 40 / 65
Shipping Volume (m3 ) 0.13 0.17 0.21

Standard Accessories

Electric Motor, Starter, 'V' Belt, Pulley and Grinding Wheel

Slotting Machine

Model: SM-1/2
Slotting Capacity: from 1/8" to 1/2"
Table Movements:
Across:
Horizontal:
Vertical:
4.5"
4.5"
4.5"
Motor (HP): 1.0
Net / Gross Weight (kgs): 125 / 175
Shipping Volume (m3 ): 0.80

Standard Accessories

Electric Motor, Starter, 'V' Belt, Pulley and Drill Chuck

Vertical Spindle Moulder with Tilting Spindle

Model: VSM-29
Size of Table: 29" x 29"
Spindle Rise and Fall: 4"
Spindle Tilts through: 45o
Spindle Arbor Diameter: 1"
Motor (HP): 2.0
Net / Gross Weight (kgs): 550 / 700
Shipping Volume (m3 ): 1.50

Standard Accessories

Electric Motor, Starter, 'V' Belt, Pulley and Guards

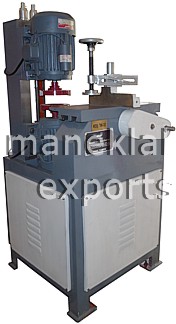

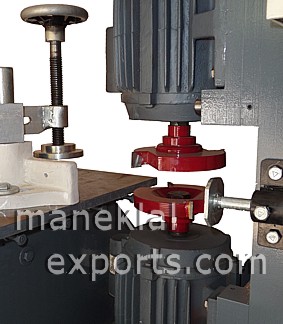

Tennoning Machine

Model: TNM-200
Table Size: 480 x 180 mm
Maximum Tenon Size: 200 x 125 mm
2 nos. Cutter Block Size: 125 dia. x 25 mm
Cutter Block Adjustment: 0 to 100 mm
Motor: 2 motors of 1.0 HP each
Net / Gross Weight (kgs): 600 / 800
Shipping Volume (m3 ): 1.50

Standard Accessories

Electric Motor, Starter, Cutter Blocks and Holding Device

Chisel Mortising Machine

Model: CLM-16
Square Hole Mortising: up to 16 mm
Round hole Drilling: up to 25 mm
Depth of Hole: up to 100 mm
Angular Tilt on either side: 90o to 45o
Max. clamping thickness: 150 mm
Work table size: 750 x 150 mm
Throat Depth: 150 mm
Longitudinal Travel: 320 mm
Cross Travel: 120 mm
Mortiser Shank: 19 mm
Motor (HP): 0.5
Net / Gross Weight (kgs): 250 / 350
Shipping Volume (m3 ): 1.30

Standard Accessories

Electric Motor, 1/2" Chisel, Drill Chuck or Collet Adaptor

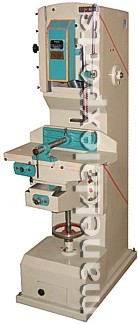

Chain Mortising Machine

Model: CNM-6/HD
Capacity: 1/4" to 1"
Maximum Depth of Mortize: 6"
Longitudinal Travel: 8"
Lateral Movement: 6"
Motor (HP): 2.0
Net / Gross Weight (kgs): 300 / 400
Case Dimensions (m): 1.10 x 0.75 x 1.70
Shipping Volume (m3 ): 1.50

Standard Accessories

Electric Motor, 1/2" x 36 link chain, Chain grinding attachment, Grinding Wheel, Vice and Lubricating System

Jigsaw Machine

Model: JM-24 JM-36
Throat: 24" 36"
Cutting Capacity: 1.35" 1.35"
Table Size: 11.5" x 13.25" 11.5" x 13.25"
Tilting of Table: 30o on both sides 30o on both sides
Machine Speed: 650 rpm 650 rpm
Motor (HP): 0.5 1.0
Net / Gross Weight (kgs): 85 / 120 115 / 150
Shipping Volume (m3 ): 0.55 0.95

Standard Accessories

Electric Motor, Switch, 'V' Belt, Pulley

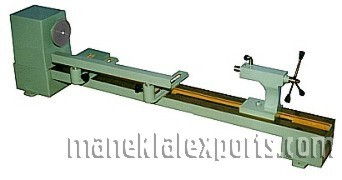

Wood Turning Lathe - Bench type

Model: WL-5
Length of Bed: 5 ft
Centre Height: 7"
Admit Between Centres: 40"
Motor (HP): 1.0
Net / Gross Weight (kgs): 100 / 130
Shipping Volume (m3 ): 0.40

Standard Accessories

Electric Motor, Reversing Switch, 'V' Belt, Pulley, Tool Rest, 2 Centres, Face Plate

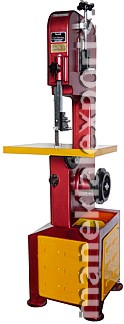

Vertical Band Saw Machines

Smaller Machines


Model: VB-9 VB-12
Size of Table (mm): 250 x 300 295 x 340
Depth of Throat (mm): 125 270
Diameter of Saw Wheel: 225 mm (6") 300 mm (12")
Max. Cutting Thickness (mm): 60 100
Motor (HP): 1.0 1.5
Net / Gross weight (kg): 90 / 150 125 / 200
Overall dimensions (m): 1.4 x 0.5 x 0.7 1.8 x 0.7 x 0.9
Shipping Volume (m3 ): 0.5 1.0

Standard Accessories

Electric Motor, Starter, Saw Blade

Larger Machines

Model: VBH-18 VBH-24 VBH-30 VBH-36 VBH-39 VBH-42
Wheel diameter: 18" 24" 30" 36" 39" 42"
Width of wheel: 1.5" 2.0" 2.5" 3.0" 3.0" 3.0"
Min. length of saw blade: 11' 13' 16.75' 20' 21' 22.5'
Max. length of saw blade: 12.5' 14.25' 18' 22' 22.5' 24'
Size of Table: 21.5" x 23" 27" x 28" 35" x 36.5" 40" x 42.5" 41" x 43" 41" x 43"
Height from floor to table: 24" 29" 33" 37" 38" 39"
Distance from saw blade to frame: 15" 21" 27" 32" 36" 38"
Diameter of drive shaft: 1.75" 2.0" 2.5" 2.75" 3.0" 3.0"
Drive pulley size: 8" x 2" 10" x 3" 12" x 3" 16" x 4" 16" x 4" 16" x 4"
Motor (HP): 2.0 5.0 7.5 10.0 12.5 15.0
Wheel speed (RPM): 850 750 700 600 550 500
Net weight (kg): 450 625 800 1250 1300 1400
Gross weight (kg): 500 700 900 1400 1500 1600
Overall dimensions (m): 0.9 x 0.7 x 2.2 1.0 x 0.8 x 2.3 1.4 x 0.9 x 2.6 1.6 x 1.1 x 2.8 1.7 x 1.2 x 2.9 1.8 x 1.3 x 3.0
Shipping Volume (m3 ): 1.4 1.9 3.2 5.0 6.0 7.0

Standard Accessories

Optional Accessories

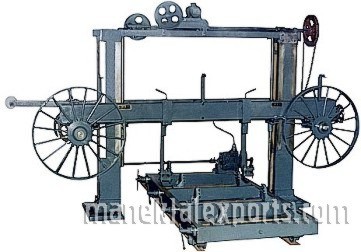

Horizontal Band Saw Machines

Model: HB-39 HB-42
Wheel diameter x width x thickness: 39" x 3" x 0.75" 42" x 3" x 0.75"
Distance between Pillars: 6’ 6.5’
Maximum Cut: 4’ 9" 5’ 3"
Size of carriage: 18’ x 4’ 18’ x 4’
Length of Rail: 100’ 100’
Channel size: 10" x 3" 10" x 3"
Diameter of drive shaft: 3" 3"
Drive pulley size: 16" x 4" 16" x 4"
Motor for main drive (HP): 12.5 15.0
Motor for Auto Lifting (HP): 1.0 1.0
Motor for Auto movement to Carriage (HP): 2.0 2.0
Wheel speed (RPM): 600 550
Net / Gross weight (kg): 2400 / 2700 2700 / 3100
Shipping Volume (m3 )*: 7.0 8.0

* Note - Machine packed in approximately eight cases

Standard Accessories

Electric Motors (for main drive, auto lifting and auto movement to carriage), Starter, Log Holders

Optional Accessories

Wheel Guards, Band Saw Blade, Brazing Clamp, Blade Sharpening Tool
