High Speed Automatic Wire Nail Making Machines

Specifications of the Machines Videos of our Nail Making Machines
Typical 1.25 Ton, 3.0 Ton and 5.0 Ton Wire Nail Making Plants Production Chart of Wire Nail Making Machines

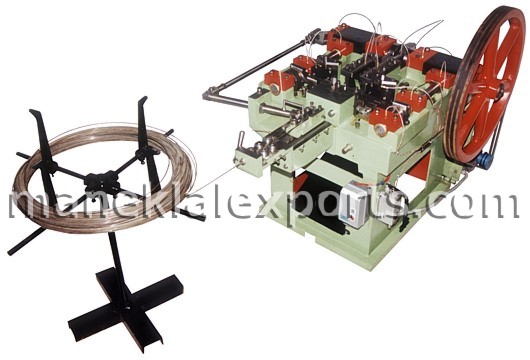

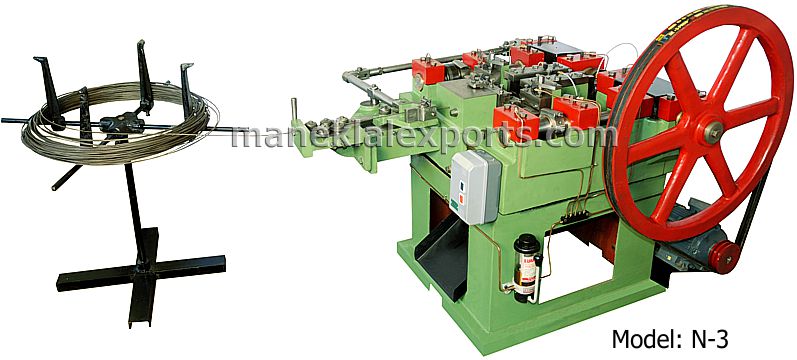

Wire Nail Making Machine - Model: N-3

Specifications

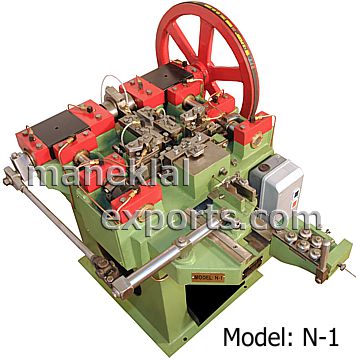

Model: N - 1 N - 2 N - 3 N - 4 N - 5 N - 6 N - 8
Length of Nails (Inches): 0.5 - 1.5 0.5 - 2 0.75 - 3 1 - 4 2 - 5 3 - 6 3 - 8
Length of Nails (mm): 13 - 38 13 - 50 19 - 76 25 - 100 50 - 125 75 - 150 75 - 200
Wire Gauge (SWG): 18 - 14 16 - 12 14 - 9 12 - 8 10 - 6 8 - 4 8 - 2
Wire Diameter (mm): 1.2 - 2.0 1.6 - 2.6 2.0 - 3.6 2.6 - 4.0 3.2 - 4.8 4.0 - 5.9 4.0 - 7.0
Production / min.: 400 - 450 300 - 350 225 - 275 175 - 210 110 - 125 100 - 125 90 - 100
Power Required (HP): 2 2 3 5 7.5 7.5 10
Net / Gross Weight (Kg.): 350 / 450 500 / 650 850 / 1050 1200 / 1550 1600 / 2400 1800 / 2600 2400 / 3200
Dimensions (m): 0.85 x 0.85 x 0.90 1.05 x 1.05 x 1.02 1.20 x 1.20 x 1.10 1.35 x 1.25 x 1.10 1.50 x 1.50 x 1.16 1.80 x 1.90 x 1.40 2.15 x 1.96 x 1.38
Shipping Volume (m3 ): 0.65 1.15 1.60 1.90 2.65 4.80 5.80

Standard Accessories:

  • Electric Motor
  • Starter
  • Belts
  • One set of Tooling
  • Wire Stand
  • Hand Operated Lubricating Pump

Optional Accessories:

  • Additional sets of Tooling (Set of Gripping Dies, Cutting Tools, and Header Dies)
Gripping Dies Cutting Die Header Dies
Machines are provided with round dies having 8 or 10 nail holding grooves For cutting nails and making point after the head & shank are formed Diamond, Chisel, Round, Long or Blunt shaped Points can be made by grinding the tools appropriately Used for formation of nail head Chequered or Plain Heads can be formed with these dies

Auxiliary Equipment:

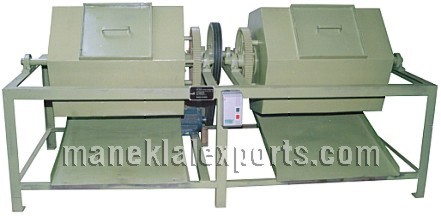

Nail Polishing Drums (with motor, starter and belts)
Model No. 1 Model No. 2

Model: No. 1 No. 2
No. of drums: Single Double
Power Requirement (HP): 2 3
Output / Charge (Kg.): 200 400
Batch Period (min.): 30 to 40 30 to 40
Net / Gross Weight (Kg.): 250 / 400 500 / 800
Dimensions (m): 1.60 x 1.20 x 1.30 2.80 x 1.25 x 1.45
Shipping Volume (m3 ): 2.50 5.00

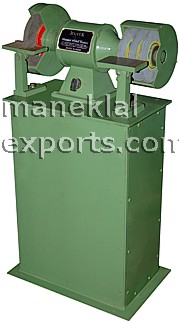

Nail Cutter and Die Grinder
(supplied with motor, Emery wheels and Pedestal Stand)

Model NCG-4
Motor (HP / RPM): 1 / 2800
No. of Grinding Wheel: 4
Net / Gross Weight (Kg.): 150 / 200
Dimensions (m): 1.30 x 0.75 x 0.55
Shipping Volume (m3 ): 0.55

Videos of Nail-Making Machines

VIDEO OF OUR NAIL MAKING MACHINES MODELS: N-1 to N-8

DETAILED VIDEO OF NAIL MAKING MACHINE MODEL: N-1 DETAILED VIDEO OF NAIL MAKING MACHINE MODEL: N-2 DETAILED VIDEO OF NAIL MAKING MACHINE MODEL: N-3 DETAILED VIDEO OF NAIL MAKING MACHINE MODEL: N-4 DETAILED VIDEO OF NAIL MAKING MACHINE MODEL: N-6 DETAILED VIDEO OF NAIL MAKING MACHINE MODEL: N-8 VIDEO OF A NAIL MAKING MACHINE FACTORY USING OUR NAIL MACHINES VIDEO OF NAIL CUTTER & DIE GRINDER MODEL: NCG-4

WE OFFER A COMPLETE WIRE DRAWING LINE TO DRAW NAIL WIRE IN VARIOUS DIAMETERS FROM 6 mm or 5.5 mm WIRE RODS. KINDLY FOLLOW THIS LINK FOR DETAILS ON OUR WIRE DRAWING EQUIPMENT


Typical Wire Nail Making Plants

Capacity to Make 1.25 Metric Tons of Wire Nail (per 8 Hour Shift)

No. Description Quantity
1. Nail Machine Model: N-1 02 nos.
2. Nail Machine Model: N-2 01 no.
3. Nail Machine Model: N-4 01 no.
Extra Die & Cutter Sets
4. For Model: N-1 10 Sets
5. For Model: N-2 05 Sets
6. For Model: N-4 05 Sets
Auxiliary Machines
7. Tool & Cutter Grinder 01 no.
8. Nail Polisher - Single Drum - Model No. 1 01 no.

Capacity to Make 3.0 Metric Tons of Wire Nail (per 8 Hour Shift)

No. Description Quantity
1. Nail Machine Model: N-2 02 nos.
2. Nail Machine Model: N-4 01 no.
3. Nail Machine Model: N-6 01 no.
Extra Die & Cutter Sets
4. For Model: N-2 10 Sets
5. For Model: N-4 05 Sets
6. For Model: N-6 05 Sets
Auxiliary Machines
7. Tool & Cutter Grinder 01 no.
8. Nail Polisher - Double Drum - Model No. 2 01 no.

Capacity to Make 5.0 Metric Tons of Wire Nail (per 8 Hour Shift)

No. Description Quantity
1. Nail Machine Model: N-2 04 nos.
2. Nail Machine Model: N-3 03 no.
3. Nail Machine Model: N-4 01 no.
4. Nail Machine Model: N-6 01 no.
Extra Die & Cutter Sets
5. For Model: N-2 20 Sets
6. For Model: N-3 15 Sets
7. For Model: N-4 05 Sets
8. For Model: N-6 05 Sets
Auxiliary Machines
9. Tool & Cutter Grinder 01 no.
10. Nail Polisher - Double Drum - Model No. 2 02 nos.
Production Chart for High Speed Automatic Wire Nail Making Machines

Production in Kg. per Machine per 8 Hours Shift

MODEL N-1

Wire Thickness Length of Nails
0.50" 0.75" 1.00" 1.25" 1.50"
18 swg (1.22 mm) 20 kg. 30 kg. 40 kg. 50 kg. 60 kg.
17 swg (1.42 mm) 25 kg. 40 kg. 52 kg. 68 kg. 80 kg.
16 swg (1.63 mm) 28 kg. 42 kg. 56 kg. 70 kg. 90 kg.
14 swg (2.03 mm) 50 kg. 75 kg. 100 kg. 125 kg. 150 kg.

MODEL N-2

Wire Thickness Length of Nails
1.00" 1.25" 1.50" 1.75" 2.00"
14 swg (2.03 mm) 90 kg. 110 kg. 130 kg. 175 kg. 200 kg.
12 swg (2.64 mm) 175 kg. 200 kg. 225 kg. 262 kg. 300 kg.

MODEL N-3

Wire Thickness Length of Nails
2.00" 2.25" 2.50" 3.00"
10 swg (3.25 mm) 275 kg. 325 kg. 375 kg. 425 kg.
9 swg (3.66 mm) 350 kg. 400 kg. 450 kg. 550 kg.

MODEL N-4

Wire Thickness Length of Nails
2.00" 2.50" 3.00" 4.00"
10 swg (3.25 mm) 200 kg. 250 kg. 300 kg. 500 kg.
9 swg (3.66 mm) 300 kg. 400 kg. 500 kg. 700 kg.
8 swg (4.06 mm) 400 kg. 500 kg. 600 kg. 800 kg.

MODEL N-5

Wire Thickness Length of Nails
2.00" 3.00" 4.00" 5.00"
8 swg (4.06 mm) 350 kg. 550 kg. 700 kg. 900 kg.
6 swg (4.88 mm) 500 kg. 850 kg. 1100 kg. 1300 kg.
4 swg (5.89 mm) 750 kg. 1100 kg. 1600 kg. 1800 kg.

MODEL N-6

Wire Thickness Length of Nails
3.00" 4.00" 5.00" 6.00"
6 swg (4.88 mm) 750 kg. 1000 kg. 1200 kg. 1500 kg.
4 swg (5.89 mm) 850 kg. 1100 kg. 1400 kg. 1600 kg.

MODEL N-8

Wire Thickness Length of Nails
3.00" 4.00" 5.00" 6.00" 8.00"
6 swg (4.88 mm) 700 kg. 900 kg. 1100 kg. 1300 kg. 1600 kg.
4 swg (5.89 mm) 900 kg. 1000 kg. 1200 kg. 1400 kg. 1700 kg.

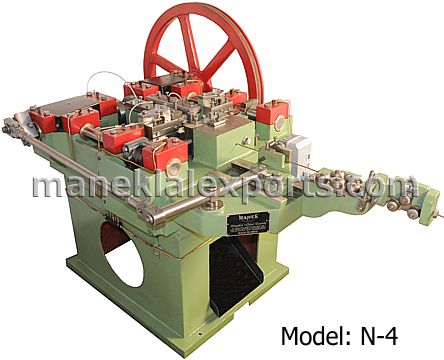

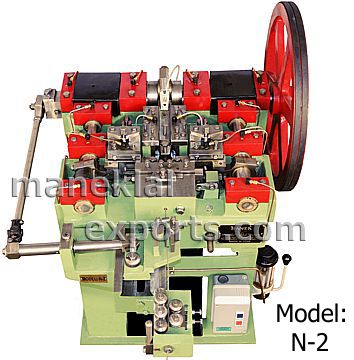

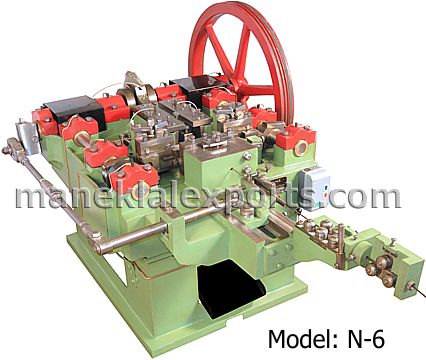

Wire Nail Making Machine - Model: N-4 Wire Nail Making Machine - Model: N-8
