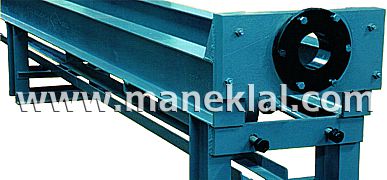

Bar and Tube Drawing Machine / Draw Bench
Features:
- The Bar Drawing Machines are suitable for drawing round bars, sectional bars, re-bars, ribbed bars, reinforcement bars, tubes, etc.

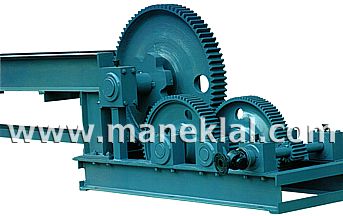

- Machine supplied with Single Rod Holding Device, Gearbox, Bull Gear, Pinion Gear and Chain Link
Specifications:
| Model: | BDM-20 | BDM-40 |
|---|---|---|
| Bar Drawing Capacity: | up to 20 mm Round | up to 40 mm Round |
| Tube Drawing Capacity: | up to 25.4 mm | up to 50 mm |
| Max. Length (Standard): | 30 feet / 9 meters | 30 feet / 9 meters |
| Girder: | 200 mm x 100 mm | 200 mm x 100 mm |
| Chain Plate: | 62 x 12 mm | 75 x 12 mm |
| Drive Gears: | 26” x 6” x 18” x 5” | 30” x 8” x 26” x 7” |
| Chain Pin: | 32 mm - EN-8 | 40 mm - EN-8 |
| Die Plate: | 50 mm | 60 mm |
| Motor: | 15 HP | 15 HP |
| Approx. Weight: | 2500 kilos | 3000 kilos |
| Dimensions: | Two cases of size: 5.0 x 1.0 x 0.7 m each | Two cases of size: 5.0 x 1.1 x 0.8 m each |
| Shipping Volume: | 8 m3 | 10 m3 |

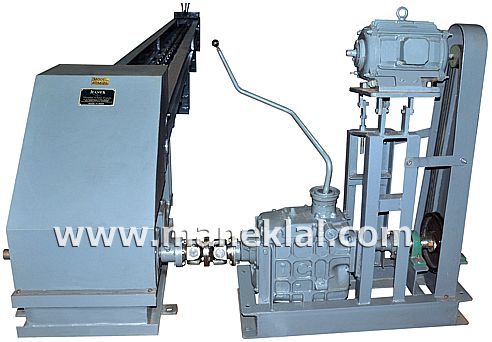

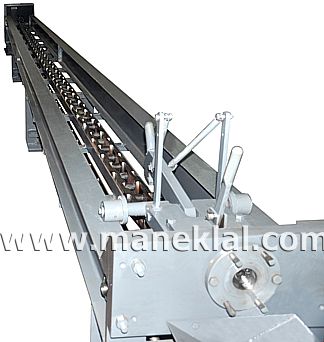

VIDEO OF ROD / BAR & TUBE DRAWING MACHINE - DRAW BENCH MODEL:
BDM-20
Standard Accessories:
- Electric Motor
- Single Rod Holding Device
- Gear Box
- Bull Gear
- Pinion Gear
- Shaft fitted in Cast Iron Bearing
- Chain Link
Optional Accessories:
- Wire Pointing Machine
- Tube Diameter Reduction Machine
- Maximum Length Capacity longer than standard (longer than 9 meters)
