Cotton Ginning Machines / Cotton and Wool Carding Machines

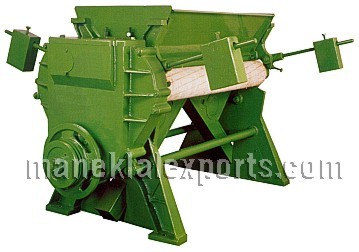

Cotton Ginning Machines

Standard Machine	Machine with Auto Feeder

Compact and Rigid Construction
Low consumption of electric power
Steel Helical Gears for high contact ratio and noiseless working
Less Wear and Tear
Machine with Double Sealed Self Aligning Bearings
Inter-Changeability of parts
Oil immersed Gear Box for Long Life of Gears and Bearings
EN-8 steel materal used for most of the Shafts and Stud / Pin duly tempered
Also offered
Machine with Auto Feeder which increases the lint production by 15% to 20%, reduces labour cost (as one worker can operate 4 machines), tilting type for easy maintenance of beater shaft portion, provided with a net so that the immature balls, stones and big dust particles are removed and collect in a tray supplied with the machine automatically.

Model		CGM-600
Machine Size:		54"
Lint Production Capacity (in 8 hours shift) (kg):		450 - 600*
Minimum distance between two machines (mm):		600
Motor (HP):		5
Standard Machine	Net Weight (kg):	840
	Dimensions (m)	2.3 x 1.7 x 1.2
	Shipping Volume (m³ )	5.0
Machine with Auto Feeder	Net Weight (kg):	900
	Dimensions (m)	2.3 x 1.7 x 1.8
	Shipping Volume (m³ )	7.0

*NOTE: Production depends on the quality and type of cleaned and opened seed cotton with proper moisture and setting of the machine by the operator

Leather Roller Grooving Machine

Model	CCM-15	CCM-18	CCM-18HD	CCM-24	CCM-24HD	CCM-30
Roll dimensions (Length x Diameter):	15" x 15"	18" x 15"	18" x 18"	24" x 18"	24" x 22"	30" x 22"
Recommended Motor (HP):	2	3	3	4	4.5	5
Approximate Output per hour (lbs):	60	80	100	120	130	150
Net / Gross Weight (kg):	100 / 155	115 / 165	125 / 180	145 / 205	165 / 230	200 / 280
Dimensions (m):	1.02 x 0.85 x 0.54	1.02 x 0.96 x 0.53	1.12 x 0.96 x 0.59	1.19 x 1.14 x 0.60	--	--
Shipping Volume (m³ ):	0.5	0.6	0.7	0.8	1.1	1.2
