Punched Tape Concertina / Razor Blade Barbed Wire Making Machine
|

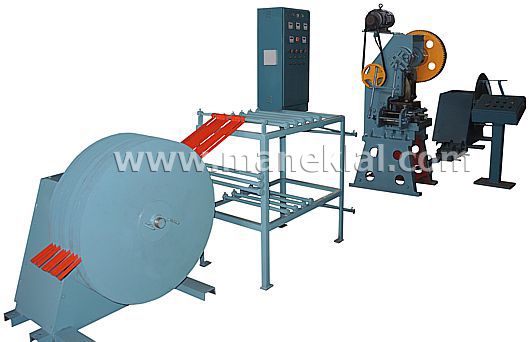

| Strip Decoiler, Strip Punching Press with die for making 9 strips of razor blades and Coiler for 9 strips of razor blades Model: CRBW-P20 |
|---|
|
|
| Strip Decoiler, Strip Punching Press with die for making 9 strips of razor blades and Coiler for 9 strips of razor blades Model: CRBW-P20 |
|---|
|
|

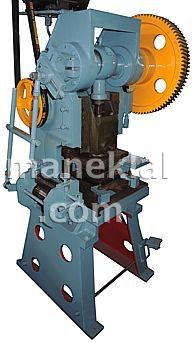

| Razor Blade and Wire Assembling Machine Model: CRBW-A15 | Strip Punching Press with die Model: CRBW-P20 |
|---|
|
|

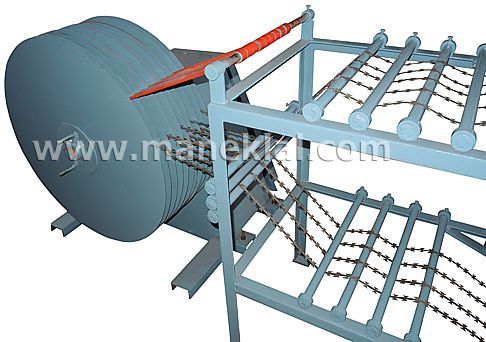

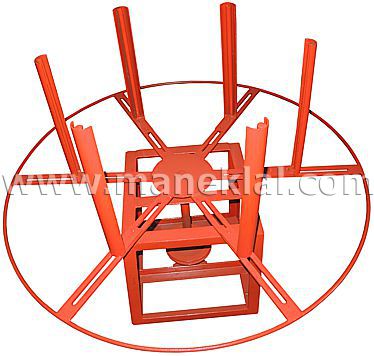

| 9 Punched Strip Coiler with Separator Table | Concertina Coiler |
|---|
| Model: | CRBW-P20 |
|---|---|
| Description: | Strip Punching Press for making Concertina / Razor Blades |
| Strip Width: | 130 mm |
| Number of Punched Strips: | 9 |
| Strip Thickness: | 28 to 25 gauge (0.37 to 0.50 mm) |
| Strip Material: | Soft Galvanized Iron Strip |
| Strokes per Minute: | 101 |
| Pressure: | 50 Tons |
| Production: | 22 meters / minute |
| Main Motor for Press: | 5 HP |
| Motor for Decoiler: | 2 HP |
| Motor for Coiler: | 3 HP |
| Model: | CRBW-A15 |
|---|---|
| Description: | Razor Blade and Wire Assembling Machine |
| Strip: | Punched Strip from CRBW-P20 |
| Wire Diameter: | 10 to 14 gauge (3.25 to 2.03 mm) |
| Wire Material: | Hard Bright Wire, preferably Galvanized |
| Production: | 15 meters / minute |
| Main Motor: | 2 HP with AC Drive |
| Coiler Motor: | 3 HP with AC Drive |
| Coiler Diameter: | Adjustable: 400, 500, 600 & 800 mm |
VIDEO OF CONCERTINA MAKING
MACHINE
|
|
|---|
CRBW-P20:

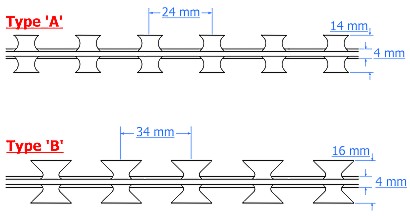

Punching Die for making 9 strips of Type 'A' Concertina, Strip Decoiler, 9 Punched Strip Coiler with Separator
Table, Electric Motors, Control Panel
CRBW-A15:
Wire Coil Stand, Punched Tape Coil Stand, Motorized Concertina Wire Coiler with adjustable diameter (400, 500, 600
& 800 mm), Clip fixing machine, Motors with AC Drive for variable speed, Control Panel

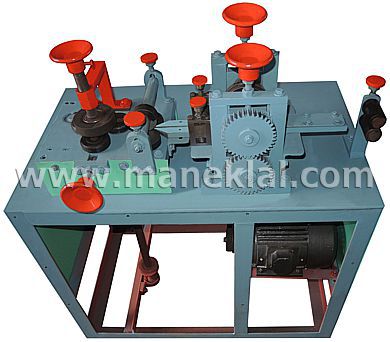

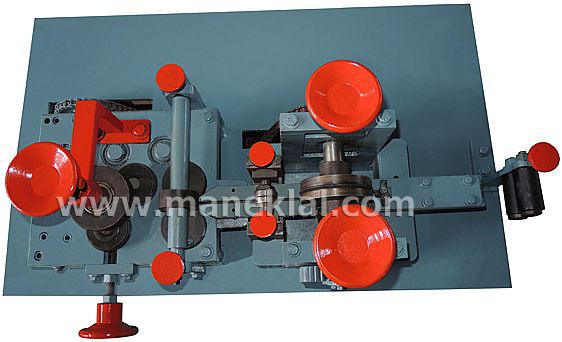

Razor Blade and Wire Assembling Machine Model: CRBW-A15

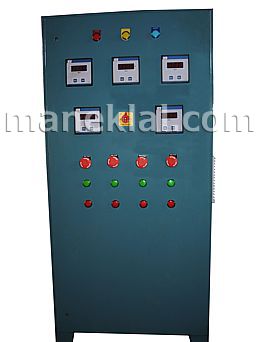

Control Panel
We also offer machines for making conventional barbed wire - follow this link for details
