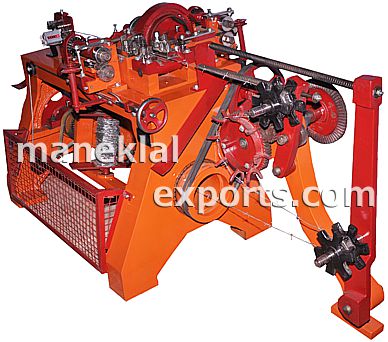

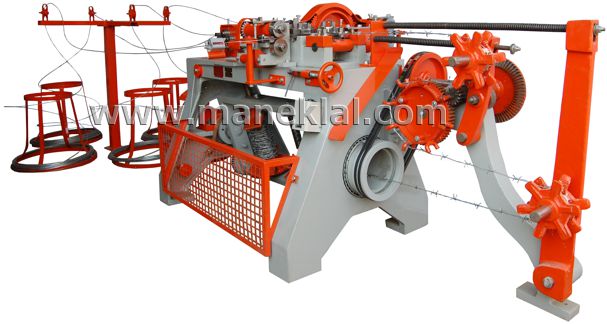

Barbed Wire Making Machines
|
|
- The machine is extremely rigid to withstand overloading and can be used 24 hours / day.
- The High Speed Winding Unit revolves at approximately 180 RPM.

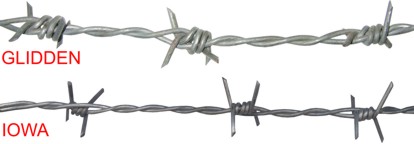

- It produces both 'GLIDDEN' and 'IOVA' double ply Barbed Wire with 2 point, 4 point consecutively.
| Model: | BWM-500 |
|---|---|
| Wire Gauge: | Standard: 12 SWG (diameter 2.64 mm) On request, we can prepare the machine to use any wire gauge between 12 and 17 SWG (diameter 2.6 to 1.4 mm) |
| Material: | Hard bright, hot dip galvanized wire with Tensile Strength under 30 to 55 Kg. F / mm Alternatively: PVC Coated Wire or PET / Plastic Wire |
| Production Capacity: | 500 Kg. / 8 Hrs. shift for 12 SWG wire with 140 to 160 barbs / min. |
| Bundle / Coil: | Up to 400 meters of Barbed Wire Bundles can be made on the machine |
| Bundle / Coil Size: | 16" diameter x 10" width, having weight of 40 / 50 Kg. |
| Barb Spacing: | Standard: 3" & 4" pitch On request, we can prepare the machine to have barb spacing of 5", 6", etc. |
| Motor: | 5 HP / 960 RPM |
| Net / Gross Weight: | 1100 / 1400 Kg. |
| Shipping Dimensions: | 2.55 x 1.15 x 1.25 m |
| Shipping Volume: | 3.70 m3 |

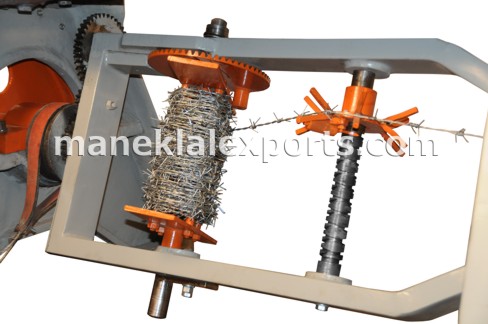

Standard Accessories: 5 HP Motor, Starter, Set of Spares, Twisting Sleeves, Take Up Reel, Pay Off Load Stand

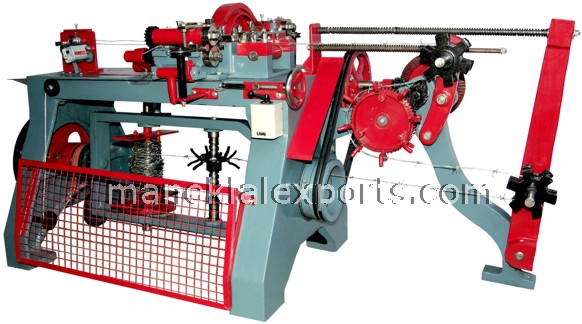

BWM-500 with additional pulley for more twists between bars
