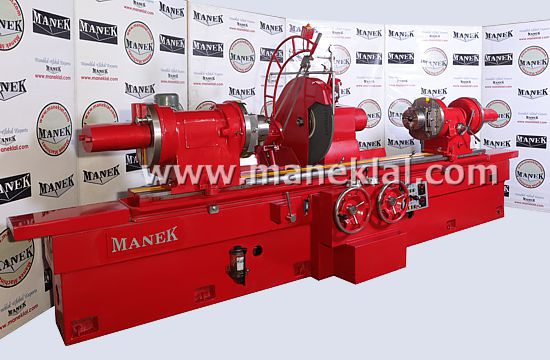

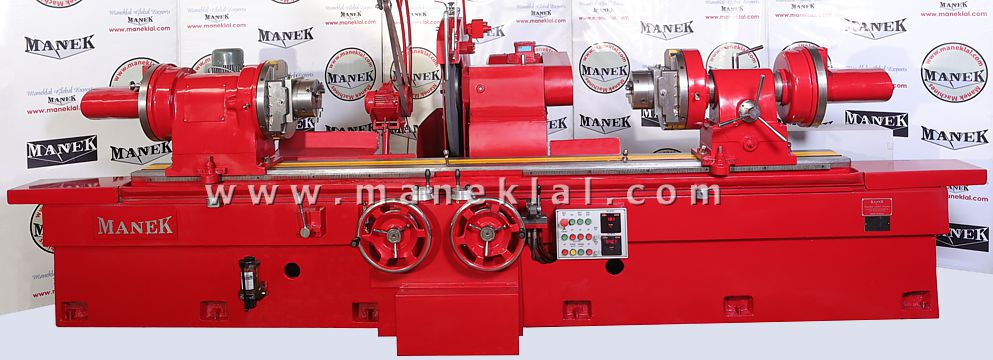

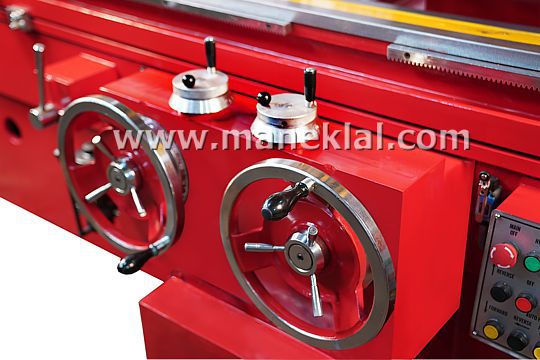

Model - MCG-84, 84" (2100 mm) Crankshaft Grinder with
Optional
Accessories:
Hydraulic Movement to Wheel Head, AC Drive for Table, Automatic Sizing Gauge,
Belt Polisher and Lubrication Pump

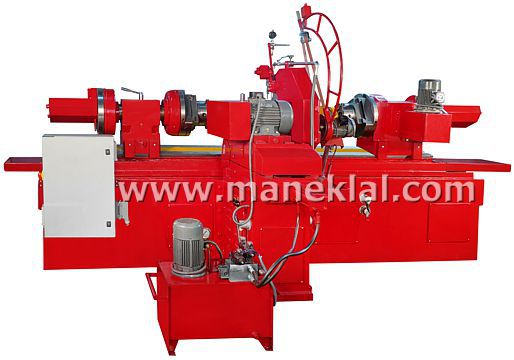

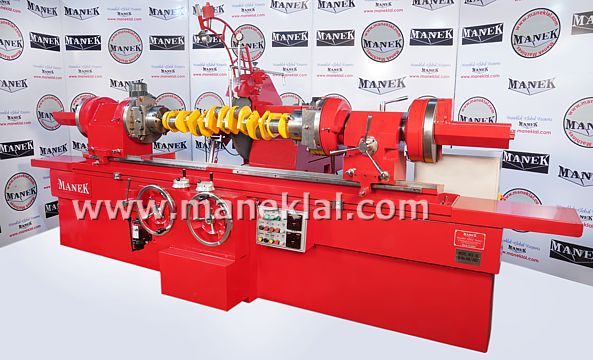

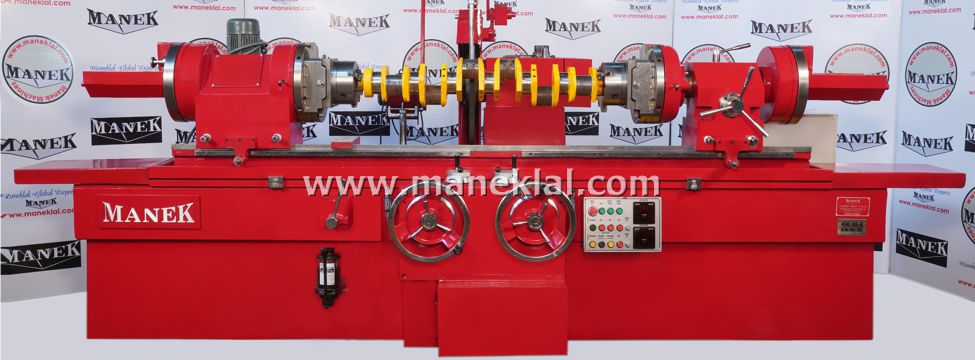

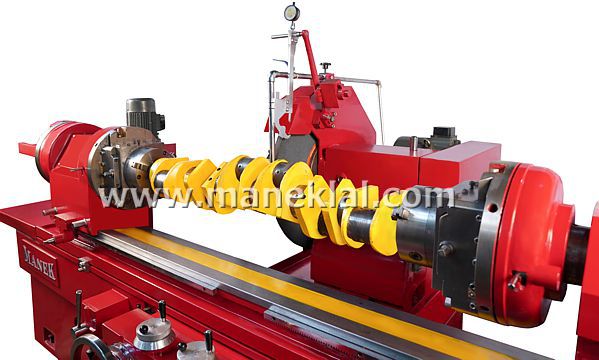

Model - MCG-60, 60" (1500 mm) Crankshaft Grinder with
Optional
Accessories:
Hydraulic Movement to Wheel Head, AC Drive for Table, Automatic Sizing Gauge,
Belt Polisher and Lubrication Pump
|
|
Model - MCG-84, 84" (2100 mm) Crankshaft Grinder |
|
|
Model - MCG-60, 60" (1500 mm) Crankshaft Grinder |
| MODEL | MCG-48 | MCG-60 | MCG-84 | MCG-90 | MCG-120 |
|---|---|---|---|---|---|
| Size (in inches) | 48" | 60" | 84" | 90" | 120" |
| Max. distance between centres (mm) | 1100 | 1425 | 2100 | 2250 | 3000 |
| Max. distance between chucks (mm) | 1050 | 1370 | 2050 | 2200 | 2800 |
| Height of centres above table (mm) | 240 | 270 | 300 | 350 | 480 |
| Max. swing over table (mm) | 480 | 540 | 600 | 700 | 950 |
| Max. grinding diameter with new wheel (mm) | 250 | 250 | 250 | 250 | 400 |
| Max. diameter admitted on steady rests (mm) | 150 | 150 | 175 | 175 | 225 |
| Max. weight admitted between centres (Kg.) | 175 | 200 | 250 | 350 | 750 |
| Max. weight admitted with steady rests (Kg.) | 350 | 450 | 500 | 550 | 1000 |
| WORKHEAD | |||||
| Max. head offset (mm) | 90 | 115 | 140 | 170 | 215 |
| Diameter of self centering chucks (mm) | 150 | 200 | 200 | 250 | 315 |
| Workhead rotation speeds (rpm) | 27-42-65 | 27-42-65 | 27-42-65 | 27-42-65 | 15-30-40-60 |
| Max. quill stroke on tailstock (mm) | 70 | 70 | 70 | 70 | 80 |
| WHEELHEAD | |||||
| Max. diameter of grinding wheel (mm) | 660 | 710 | 760 | 815 | 915 |
| Standard thickness of grinding wheel (mm) | 20 | 20 | 20 | 20 | 25 |
| GENERAL | |||||
| Grinding wheel motor (HP) | 5 | 5 | 7.5 | 7.5 | 10 |
| Headstock spindle motor (HP) | 0.75 | 1 | 1.5 | 2 | 2 |
| Coolant unit motor (HP) | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| Work space required (LxW) (m) | 4.6 x 1.8 | 5.8 x 2.0 | 7.0 x 2.3 | 7.2 x 2.4 | 9.2 x 3.1 |
| Net / Gross weight (kg.) | 3000 / 3500 | 4000 / 4700 | 5000 / 6000 | 5500 / 6200 | 11500 / 13000 |
| Dimensions (L x W x H) (m) | 3.5 x 1.9 x 1.9 | 4.0 x 2.1 x 2.1 | 4.5 x 2.2 x 2.2 | 4.8 x 2.3 x 2.3 | 7.0 x 2.4 x 2.4 |
| Shipping volume (m³) | 13.00 | 18.00 | 22.00 | 26.00 | 40.00 |
VIDEO OF HYDRAULIC CRANKSHAFT GRINDER MODEL: MCG-60,60" (1500 mm)
With Hydraulic Movement to Wheel Head and AC Drive for Table (Optional Accessories)
VIDEO OF HYDRAULIC CRANKSHAFT GRINDER MODEL: MCG-84, 84" (2100 mm)
With Hydraulic Movement to Wheel Head and AC Drive for Table (Optional Accessories)
|
|

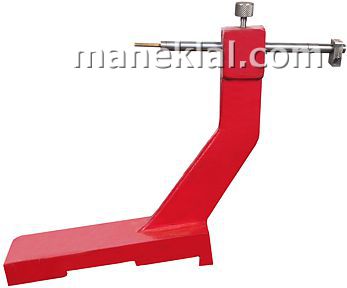

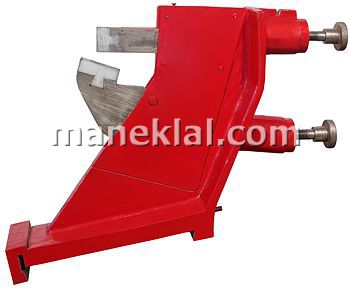

| Crank Centering V-Gauge | Steady Rest |
|---|---|
|
|
| Wheel Balancing Stand and Arbour | Wheel Dresser for Face |
|
|
| Side Dresser | Radius Dresser |
|
|

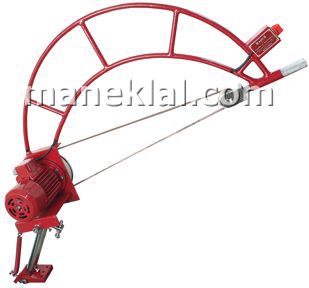

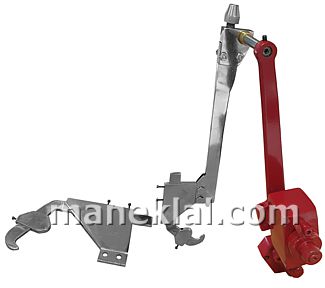

| Automatic Sizing Gauge | Belt Polisher |
|---|---|
|
|

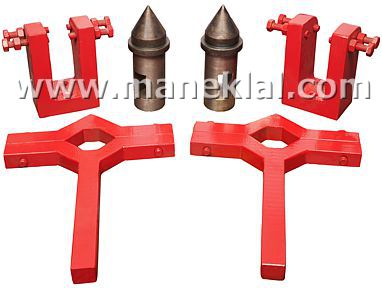

| Fixture for Grinding Between Centres | Length of Stroke Device |
|
|

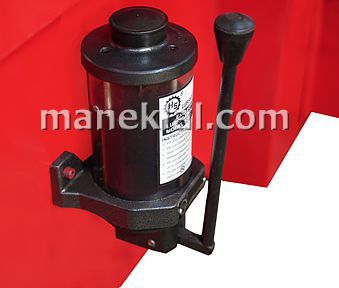

| Truing Device | Lubrication Pump |
|
|
| Hydraulic Unit for Hydraulic Movement to Wheel Head | AC Drive in Control Panel for Slide |
