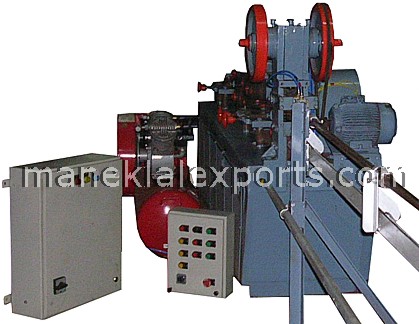

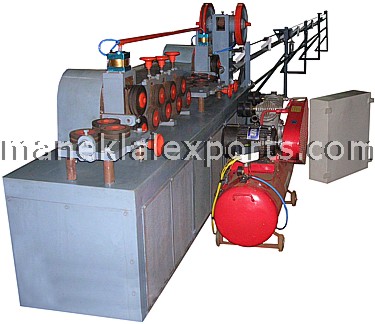

Wire Straightening & Cutting Machines for TMT/Ribbed/Deformed Wire
| Killing Roller Type Machines | Spinner / Rotor Type Machines |
|
|
Specifications:
| Model: | KRWSC-10 | KRWSC-12 | KRWSC-16 |
|---|---|---|---|
| Diameter of TMT / Hot or Cold Rolled Ribbed / Deformed wire*: | 6 to 10 mm | 8 to 12 mm | 10 to 16 mm |
| Speed (Feet / Minute): | 320 | 240 | 240 |
| Speed (Meters / Minute): | 97 | 73 | 73 |
| Main Motor (HP): | 7.5 | 10 | 15 |
| Motor for Cutting (HP): | 2 | 3 | 5 |
| Compressor (HP): | 3 | 3 | 5 |
| Net / Gross weight (Kg.): | 1400 / 1900 | 1500 / 2000 | 1700 / 2200 |
| Shipping Volume (m3 ): | 8.0 | 8.5 | 9.0 |
* -
Machine can be supplied
for any other required diameter of wire
# -
Machine can be supplied with cutting attachment suitable for any
maximum length required
VIDEO OF KILLING ROLLER TYPE WIRE STRAIGHTENING &
CUTTING MACHINE
Standard Accessories:
- Electric Motor
- Control Panel
- Compressor
- Reduction Gear Box
- Horizontal and Vertical Killing Rollers
- Pinch and Groove Rollers of HC HCr material suitable for any 2 wire diameters
- 12 meters cutting gauge (fixed length)
- Coil Stand of 500 kg capacity
Optional Accessories:
- Pinch and Groove Rollers of HC HCr material suitable for other wire diameters
- 6 or 9 meters cutting gauge (fixed length)
- Heavy Duty Coil Stand of 1 Ton or 2 Ton capacity with Brake
|
|
| Heavy Duty Coil Stand | Automatic Cutting Attachment - up to 12 meters |
|---|

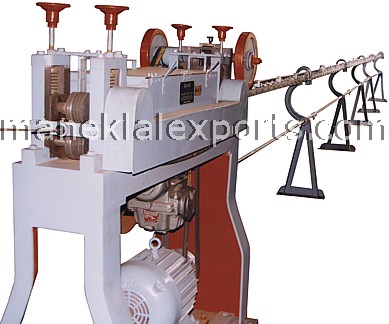

Movable Spinner / Rotor Type Wire Straightening and Cutting Machine
Specifications:
| Model: | WSC-6R | WSC-8R | WSC-10R | WSC-16R |
|---|---|---|---|---|
| Diameter of Plain Wire*: | 3.5 to 6 mm | 4.5 to 8 mm | 6 to 10 mm | 12 to 16 mm |
| Diameter of Cold Rolled Ribbed / Deformed wire*: | 3.5 to 6 mm | 4.5 to 8 mm | 6 to 10 mm | 12 to 14 mm |
| Diameter of TMT / Hot Rolled Ribbed / Deformed wire*: | -- | 6 mm | 6 to 8 mm | -- |
| Speed (Feet / Minute): | 140 | 160 | 160 | 120 |
| Speed (Meters / Minute): | 42 | 48 | 48 | 36 |
| Main Motor (HP): | 5 | 7.5 | 10 | 15 |
| Net / Gross weight (Kg.): | 800 / 1000 | 850 / 1075 | 900 / 1150 | 1200 / 1500 |
| Shipping Volume (m3 ): | 4.0 | 4.5 | 5.0 | 7.0 |
* - Machine can be supplied
for any other required diameter of wire
# - Machine can be supplied with cutting attachment suitable for any
maximum length required
VIDEO OF SPINNER TYPE WIRE STRAIGHTENING & CUTTING MACHINE
