Machinery for making Cold Rolled Ribbed Wire / Deformed Wire for Construction
Features:
- Machinery to manufacture Cold Rolled Ribbed / Deformed Wire in diameters 3.5 mm to 12 mm

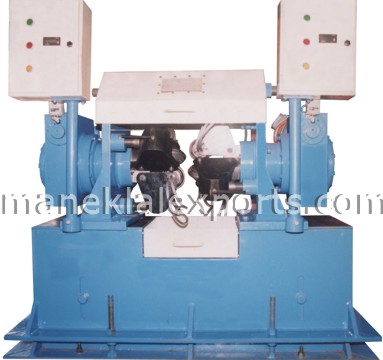

- Main Ribbing Machine made of heavy duty MS fabricated base frame on which a side support and movable support are linked with a stabilizing bar.
- Ribbing done by two Turk Heads each supported with three roller holders.
- A worm gear unit driven by geared motor unit moves each shaft axially in its support.
- Individual Turk Heads for adjustment of Rollers
- Water circulation in the machine provided for cooling
- All the roller holders controlled with a Digital Control
- Complete set of machinery offered including main Ribbing Machine and auxiliary machines like: Wire Drawing Machines, Wire Pointing Machine, Butt Welding Machine, Descaling Machine, Electric Control Panel Board, Automatic Wire Straightening and cutting Machine.
- Cold Rolled Ribbed / Deformed Wire is used in concrete reinforcement, RCC spun pipes, electricity poles, railway sleepers, precast units, runways, as skin reinforcement, slabs, beams, pre-stressed concrete units etc.

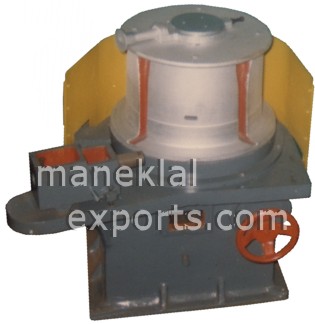

Heavy Duty Bull block Wire Drawing Machine Fitted in-line with Main Ribbing Machine to pull and to coil the Ribbed wire
| VIDEO OF COLD ROLLED RIBBED WIRE MAKING MACHINE |
|---|
|
|
|
Electric Control Panel
An M.S. Fabricated cabinet with Voltmeter & Ammeter, Pilot Lamp, Timer, Auxiliary Relay Starters, Contactors, Overload Relay, H.R.C. Fuses, etc. |
Wire Pointing Machine
Suitable to reduce diameter of rod to insert the rod in wire drawing die to start the drawing operation |
|---|---|
|
|
|
Mechanical Descaling Attachment
Suitable to fit with the wire drawing machines to remove the scales from the inlet wire rod. |
Butt Welding Machine
In range 4 KVA to 15 KVA for welding wires |
|
|
| Killing Roller Type Wire Straightening and Cutting Machines for Cold Rolled Ribbed Wire - 'KRWSC' SERIES | |
|---|---|
|
|
| SPINNER Type Wire Straightening and Cutting Machines for Cold Rolled Ribbed Wire - 'WSC' SERIES | |
VIDEO OF 'KILLING ROLLER' TYPE STRAIGHTENING & CUTTING MACHINE VIDEO OF 'SPINNER' TYPE STRAIGHTENING & CUTTING MACHINE
