Machines for Making 'U' Nail / Fence Staple with Barbs
|
|

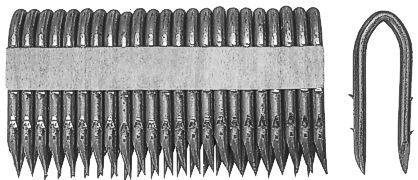

| Samples of 'U' Nails with Barbs | Collated 'U' Nails |
|---|---|
|
|
| Model: UNM-100N | Model: UNM-80N/T |
Specifications:
| Model | UNM-100N | UNM-80N/T |
|---|---|---|
| Type: | Loose 'U' Nails | Collated 'U' Nails |
| Wire Diameter | 10 to 17 Gauge (1.4 to 3.2 mm) | 9 to 14 Gauge (2.0 to 3.6 mm) |
| Production Capacity | 100 U-Nails / Minute | 80 U-Nails / Minute |
| Taping Attachment | No | Yes |
| Motor | 3 HP | 3 HP |
| Net / Gross Weight (Kg) | 425 / 525 | 450 / 550 |
| Approx. Dimensions (m) | 2.2 × 1.2 × 1.7 | 2.2 × 1.2 × 1.7 |
| Shipping Volume (m³) | 4.50 | 4.50 |
|
|

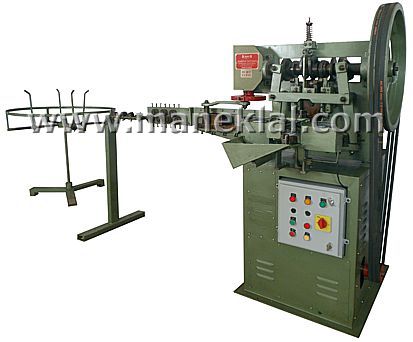

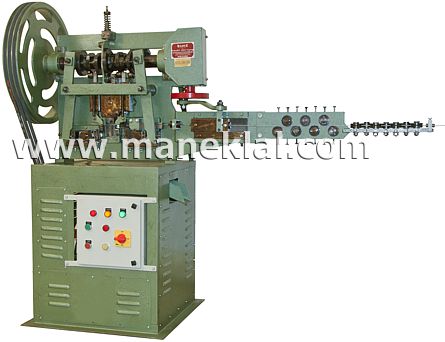

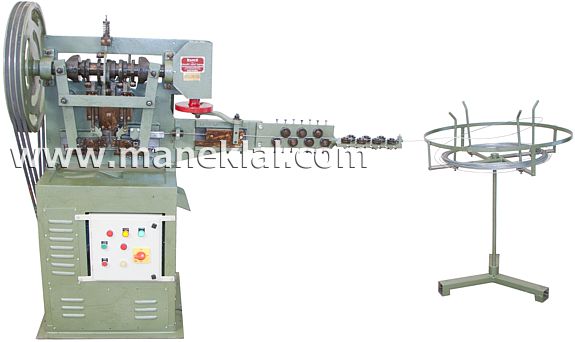

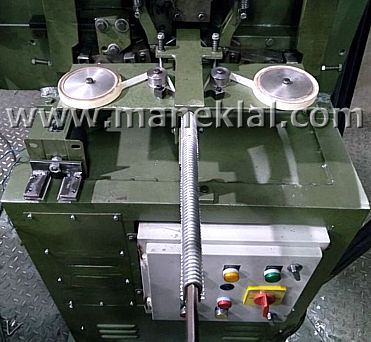

| Model: UNM-100N | Model: UNM-80N/T with Taping Attachment |
|---|---|
|
|

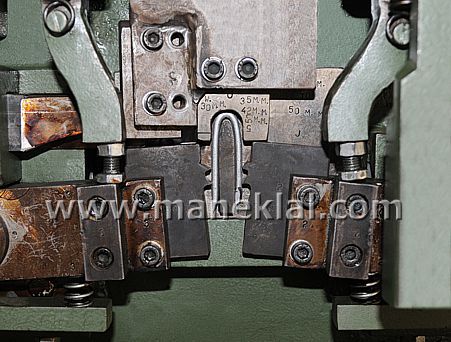

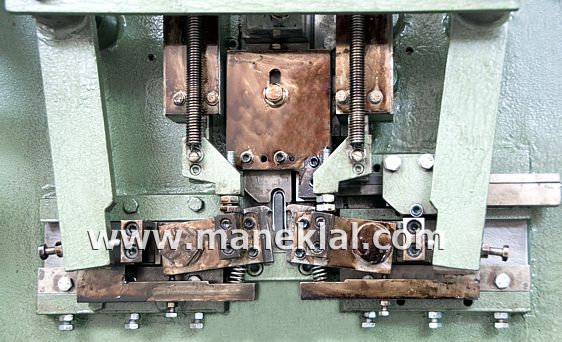

| Die for 'U' Nail with single notch | Die for 'U' Nail with 2 notches |
Standard Accessories:
- Electric Motor
- Starter
- Coil Stand
- One Set of Toolings (for any one size of Nail)
- Taping Attachment (only with model UNM-80N/T)
Extra Accessories:
- Additional Sets of Toolings for:
- 'U' Nails with 1 Notch
- 'U' Nails with 2 Notches
- 'U' Nails without Notches
- 'J' Nails
VIDEO OF THE MACHINE UNM-80N/T (Making Double Notch Nail with Taping)
VIDEO OF THE MACHINE UNM-100N (Making Single Notch Nail)
VIDEO OF THE MACHINE UNM-100N (Making Single Notch Nail)
VIDEO OF THE MACHINE UNM-100N (Making Double Notch Nail)
