'U' Nail / Fence Staple Making Machines

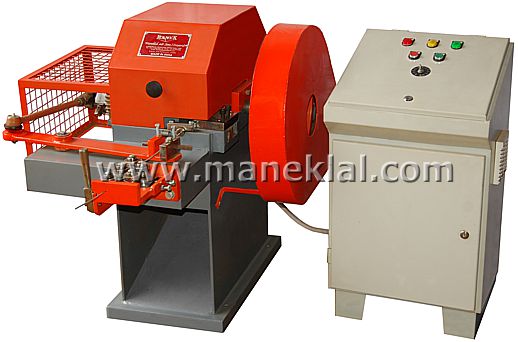

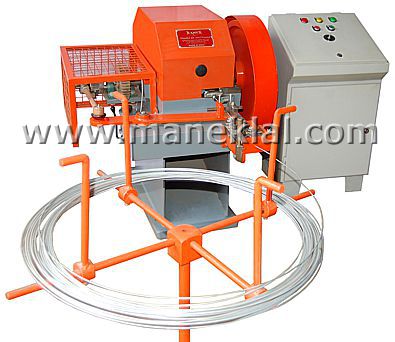

Model: UNM-400/ACD
Specifications:
| Model | UNM-150 | UNM-300 | UNM-300/ACD | UNM-400/ACD |
|---|---|---|---|---|
| Type: | SINGLE Stroke | DOUBLE Stroke | DOUBLE Stroke | TRIPLE Stroke |
| Wire Diameter (SWG): | 18 to 6 Gauge | 18 to 6 Gauge | 18 to 6 Gauge | 18 to 6 Gauge |
| Wire Diameter: | 1.2 to 4.8 mm | 1.2 to 4.8 mm | 1.2 to 4.8 mm | 1.2 to 4.8 mm |
| Length of ‘U’ Nail: | 1/2" to 1-1/2" (15 to 40 mm) | 1/2" to 1-1/2" (15 to 40 mm) | 1/2" to 1-1/2" (15 to 40 mm) | 1/2" to 1-1/2" (15 to 40 mm) |
| Distance Between ends: | 6 to 12 mm | 6 to 12 mm | 6 to 12 mm | 6 to 12 mm |
| Production Capacity: | 125 to 150 ‘U’ Nails per Minute | 200 to 250 ‘U’ Nails per Minute | up to 250 ‘U’ Nails per Minute | up to 400 ‘U’ Nails per Minute |
| Motor: | 2.0 HP | 3.0 HP | 3.0 HP with AC Drive | 3.0 HP with AC Drive |
| Net / Gross Weight | 275 / 450 kilos | 325 / 500 kilos | 400 / 550 kilos | 450 / 600 kilos |
| Approx. Dimensions: | 1.60 x 0.90 x 1.10 m | 2.00 x 0.90 x 1.10 m | 1.50 x 1.10 x 1.10 m & 1.10 x 0.60 x 0.60 m | 1.60 x 1.10 x 1.20 m & 1.10 x 0.60 x 0.60 m |
| Shipping Volume: | 1.60 m3 | 2.00 m3 | 2.50 m3 | 2.80 m3 |
|
|
| Model: UNM-300 | Model: UNM-150 |
|---|
Standard Accessories:
- Electric Motor
- Starter (for models UNM-150 & UNM-300)
- AC Drive with Control Panel (for models UNM-300/ACD & UNM-400/ACD)
- Coil Stand
- Lubrication Pump
VIDEO OF 'U' NAIL MAKING MACHINE - SINGLE STROKE - MODEL: UNM-150
VIDEO OF 'U' NAIL MAKING MACHINE - DOUBLE STROKE - MODEL: UNM-300
VIDEO OF 'U' NAIL MAKING MACHINE - DOUBLE STROKE - MODEL: UNM-300/ACD with AC Drive for Variable Speed
|
|
| Model: UNM-300/ACD | Model: UNM-300 |
|---|
