Shoe Tacks Making Machines

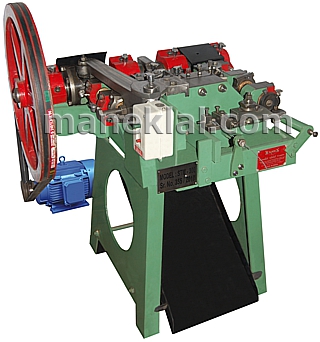

Main Shoe Tacks Making Machine
| Model: | STM-300 |
|---|---|
| Thickness of wire required: | 15 / 16 Gauge (1.8 / 1.6 mm) |
| Wire: | H.H.B. (Half Hard Bright) or H.B. (Hard Bright) |
| Production per minute: | 300 to 325 Shoe Tacks |
| Production in 8 hours: | 25 kg. for 1/2" (12 mm) Nail 32 kg. for 3/4" (20 mm) Nail |
| Motor: | 2.0 HP |
| Net / Gross Weight: | 375 / 450 kg. |
| Dimensions: | 1.0 x 1.0 x 1.1 m |
| Shipping Volume: | 1.10 m3 |
Standard Accessories: Electric Motor, Starter and a set of dies and cutters
Annealing Machine
For annealing and giving a blue colour to the tacks
| Model: | AM - 40 |
|---|---|
| Container Speed (rpm): | 36 - 40 |
| Motor HP: | 0.5 |
| Capacity per 15 minutes: | 25 to 30 kg. |
| Net / Gross Weight: | 150 / 200 kg. |
| Shipping Volume: | 1.10 m3 |
Standard Accessories: Electric Motor and Switch
Nail Polishing Drum
| Model: | No. 1 |
|---|---|
| No. of drums: | Single |
| Power Requirement: | 2.0 HP |
| Output / Charge: | 200 kg. |
| Net / Gross Weight: | 250 / 400 kg. |
| Shipping Volume: | 2.30 m3 |
Standard Accessories: Electric Motor, Starter and Belts
Tool and Cutter Grinder
| Model: | TCG-50 |
|---|---|
| Motor: | 1.5 HP |
| Grinding Wheels: | 2 nos. - 10" Diameter & 2 nos. 8" Diameter |
| Net / Gross Weight: | 500 / 600 kg |
| Dimensions: | 1.10 x 1.15 x 1.10 m |
| Shipping Volume: | 1.4 m3 |
Standard Accessories: Electric Motor and Switch
VIDEO OF SHOE TACKS MAKING MACHINE MODEL:
STM-300
