Roofing (Umbrella) Nail Making Machine
Features:
- The plant consists of the main machine, washer cutting press, polishing barrel and nail cutter and die grinding machine
- Suitable for Plain type and Twisted Type Roofing Nails
- Twisted Roofing Nails require an Optional Wire Twisting Machine to make Twisted Wire which is then fed to the Roofing Nail Machine to make Twisted Stem Nails.
- Plain Washers made on the press are fed in the hopper of the main machine. On every stroke, one washer is inserted, given shape and fixed into the nail
- Ready Nails are then polished in the Polishing Barrel

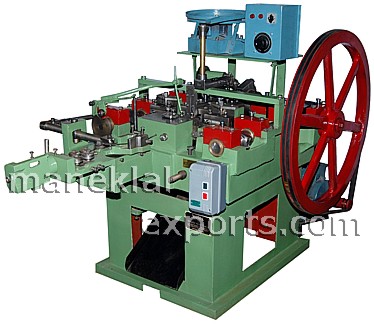

Model: RNM-100

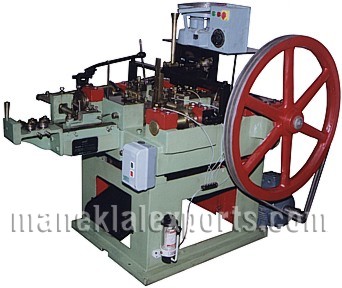

Model: RNM-75
Main Machine (nail & washer assembling)
(with motor, starter, coil stand & one set of tooling)
| Model: | RNM-75 | RNM-100 |
|---|---|---|
| Capacity - Length of Nail: | 25 to 75 mm | 25 to 100 mm |
| Thickness of Nail: | 12 to 8 swg (2.6 to 4.0mm) | 12 to 8 swg (2.6 to 4.0mm) |
| Production per minute: | 60 to 70 pcs. | 50 to 60 pcs. |
| Motor: | 3 HP | 5 HP |
| Net / Gross Weight (Kg.): | 1000 / 1200 | 1250 / 1600 |
| Case Dimensions (m): | 1.30 x 1.30 x 1.30 | 1.30 x 1.30 x 1.30 |
| Shipping Volume (m3 ): | 2.50 | 2.50 |
Model: RNM-75
VIDEO OF ROOFING NAIL MAKING MACHINE MODEL: RNM-100 making PLAIN stem nails VIDEO OF ROOFING NAIL MAKING MACHINE MODEL: RNM-75 VIDEO OF ROOFING NAIL MAKING MACHINE MODEL: RNM-100 making TWISTED stem nails VIDEO OF Auxiliary Machines - Wire Twisting Machine, Washer Cutting Press, Wire Pointing Machine and Nail Polisher
ECCENTRIC POWER PRESS: PP-20 WITH 2 CAVITY WASHER CUTTING
DIE WITH PNEUMATIC STRIP FEEDER

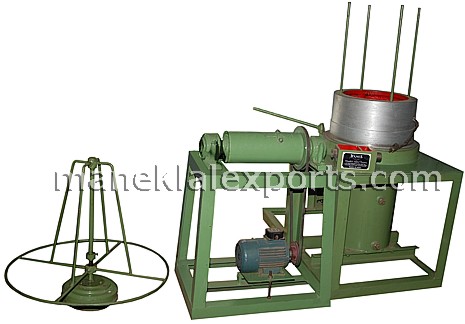

Wire Twisting Machine
(with motor, starter and belts)
| Model: | WT-20 |
|---|---|
| Motor (HP): | 1 |
| Wire Diameter: | up to 4 mm |
| Net / Gross Weight (Kg.): | 70 / 140 |
| Dimensions (m): | 0.90 x 0.60 x 1.10 |
| Shipping Volume (m3 ): | 0.60 |

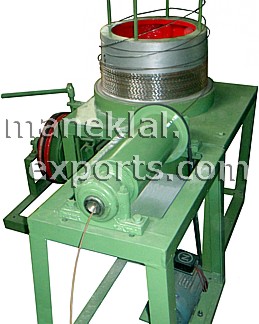

Wire Drawing Machine for Pulling & Coiling Twisted Wire
(with motor, starter and belts)
| Model: | WD-20 |
|---|---|
| Drum Diameter:: | 20" (500 mm) |
| Motor (HP): | 7.5 |
| Net / Gross Weight (kg): | 550 / 750 |
| Dimensions (m): | 1.35 x 0.90 x 1.15 |
| Shipping Volume (m³): | 1.50 |

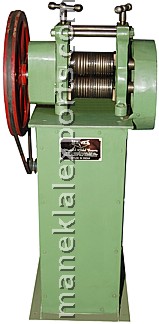

Wire Pointing Machine
For pointing / reducing diameter of wire to insert it in the Wire Twisting Die
(with motor, starter and belts)

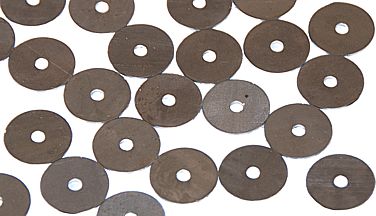

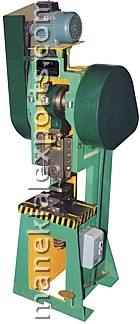

Power Press (for washer cutting)
(with motor, starter, die set for washer cutting)
|
 |
|
Model: PP-5 |
Model: PP-20 |
| Model: | PP-5 | PP-20 |
|---|---|---|
| Capacity: | 5 Tons | 20 Tons |
| Motor: | 2 HP | 3 HP |
| Washer Cutting Die: | Single Cavity, Manual Feeding | Two Cavity Manual Feeding or with Pneumatic Strip Feeder or with Pneumatic Roll Feeder |
| Net / Gross Weight (Kg.): | 400 / 600 | 1000 / 1250 |
| Dimensions (m): | 0.8 x 0.8 x 1.6 | 1.20 x 1.00 x 2.30 |
| Shipping Volume (m3 ): | 1.2 | 2.8 |

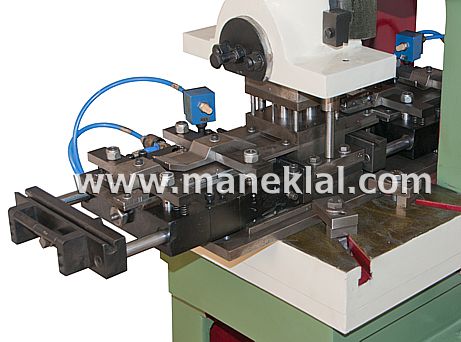

Two Cavity Washer Cutting Die with Pneumatic
Strip Feeder
Nail Polishing Drum
(with motor, starter and belts)
|
|
|---|
Nail Cutter and Die Grinder
(supplied with motor, Emery wheels and Pedestal Stand)
|
|
|
|---|
WE ALSO OFFER EQUIPMENT TO ELECTRO-GALVANIZE ROOFING NAILS FOR ZINC PLATING. KINDLY VISIT OUR PAGE ON THE ELECTRO-GALVANIZING EQUIPMENT FOR DETAILS.
