Machinery for making Rolling Shutters

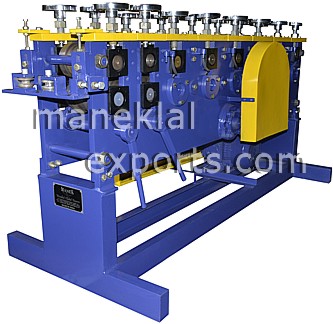

Rolling Shutter Strip Making Machine
Features:
- Machine constructed from steel
- Fitted with multiple rolls, each with forming dies through which a cut strip is passed
- Forms the desired strip in a single pass, suitable for making rolling shutters
- Driven by machine-cut gears
- Includes necessary guides and supports for strips passing through rolls
- Coil roll can be loaded
- 6-Station Machine for making one profile
- 7-Station Machine for making two profiles
- 8-Station Machine for making three profiles of rolling shutter strips/slats
|
|

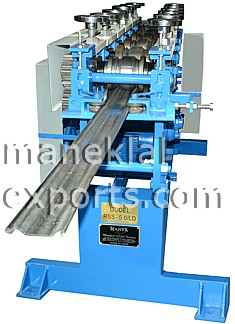

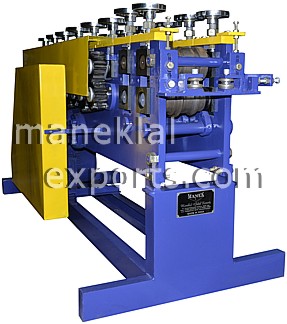

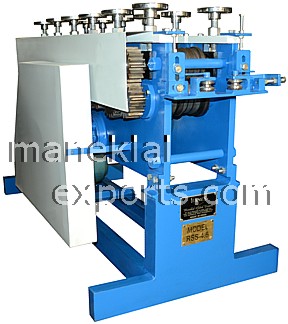

| Model: RSS-4.5 with 6 pairs of Rolls | Model: RSS-5.0/LD with 6 pairs of Rolls |
|---|
Specifications:
| Model: | RSS-4.5/LD | RSS-4.5 | RSS-5.0/LD | RSS-5.0 | RSS-6.0/LD | RSS-6.0 |
|---|---|---|---|---|---|---|
| Capacity - Width of Strip: | 4.5" / 115 mm | 4.5" / 115 mm | 5.0" / 127 mm | 5.0" / 127 mm | 6.0" / 152 mm | 6.0" / 152 mm |
| Capacity - thickness of sheet (mm): | 0.4 to 0.9 | 0.7 to 1.2 | 0.4 to 0.9 | 0.7 to 1.2 | 0.4 to 0.9 | 0.7 to 1.2 |
| Capacity - Max. length: | no limit | no limit | no limit | no limit | no limit | no limit |
| Size of formed rolling strip (round type): | 3" / 76 mm | 3" / 76 mm | 3.35" / 85 mm | 3.35" / 85 mm | 3.75" / 95 mm | 3.75" / 95 mm |
| Number of Rolls: | 6, 7 or 8 pairs | 6, 7 or 8 pairs | 6, 7 or 8 pairs | 6, 7 or 8 pairs | 6, 7 or 8 pairs | 6, 7 or 8 pairs |
| Machine Speed (Feet / Minute): | 20 | 20 | 20 | 20 | 20 | 20 |
| Machine Speed (Meters / Minute): | 6 | 6 | 6 | 6 | 6 | 6 |
| Motor (HP): | 5 | 5 | 5 | 5 | 5 | 7.5 |
| Net / Gross Weight (kg.): | 950 / 1300 | 950 / 1300 | 1100 / 1450 | 1100 / 1450 | 1200 / 1600 | 1200 / 1600 |
| Dimensions (m): | 2.0 x 1.4 x 1.1 | 2.0 x 1.4 x 1.1 | 2.2 x 1.5 x 1.2 | 2.2 x 1.5 x 1.2 | 2.5 x 1.6 x 1.4 | 2.5 x 1.6 x 1.4 |
| Shipping Volume (m3 ): | 4.0 | 4.0 | 5.0 | 5.0 | 6.0 | 6.0 |
|
|

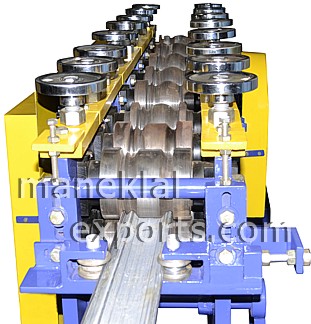

||||
| Model: RSS-4.5 with 8 pairs of Rolls | |||||
|---|---|---|---|---|---|
|
|||||
| Common Profiles / Designs of Rolling Shutter Strips / Slats | |||||
|
|
||||

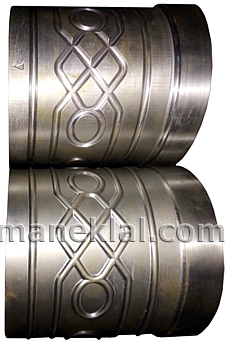

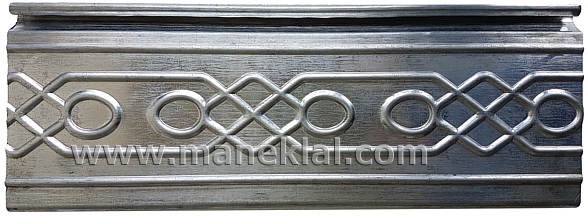

| Design Engraved Rollers to make Embossed Design Slats | Embossed Design Slats | ||||
|
|
||||

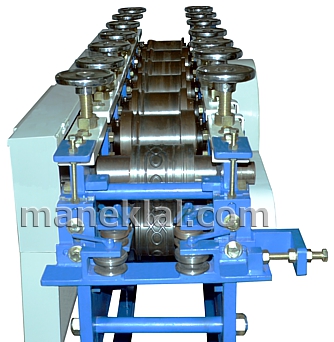

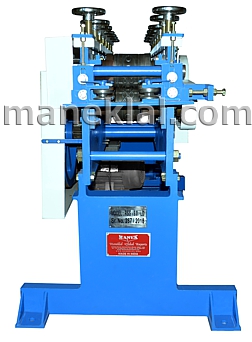

| Model: RSS-6.0 with 7 pairs of Rolls to make DESIGN SLATS | |||||
|
|
||||

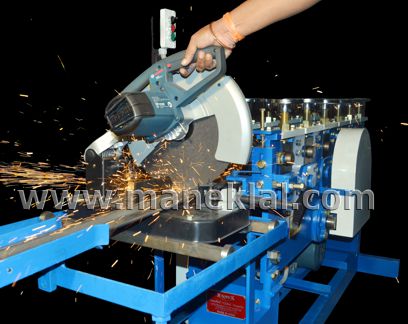

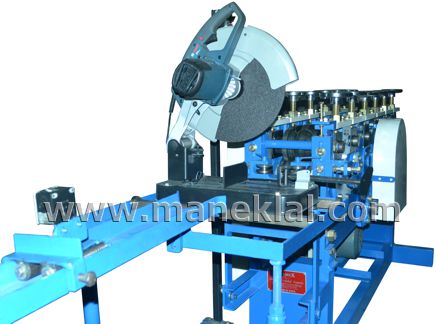

| Model: RSS-5.0 with Optional: Abrasive Cutter | |||||
|
|
||||

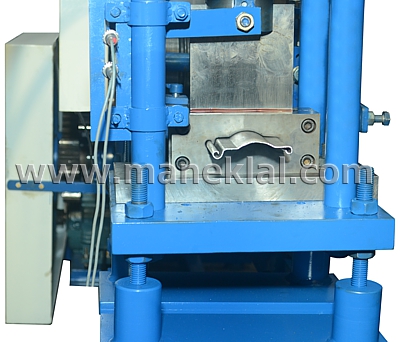

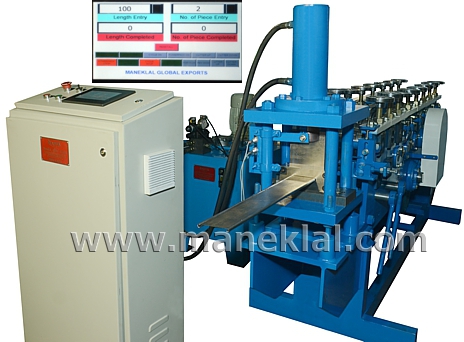

| Model: RSS-6.0 with 8 pairs of Rolls and Optional: PLC Based Automatic Programmable Cutting System | |||||
|
VIDEO OF OUR MODEL: RSS-6.0 WITH SEVEN PAIRS OF ROLLS TO MAKE DESIGN SLATS |
|---|
|
VIDEO OF OUR MODEL: RSS-6.0 WITH SIX PAIRS OF ROLLS TO MAKE SLATS WITH TWO VEINS |
|
VIDEO OF OUR MODEL: RSS-4.5 WITH EIGHT PAIRS OF ROLLS TO MAKE 3 DESIGNS OF SLATS |
|
VIDEO OF OUR ROLLING SHUTTER STRIP / SLAT MAKING MACHINE MODEL: RSS-5.0 WITH OPTIONAL ABRASIVE CUTTER |
|
VIDEO OF OUR MODEL: RSS-6.0 WITH EIGHT PAIRS OF ROLLS TO MAKE 3 DESIGNS OF SLATS, WITH OPTIONAL PLC BASED AUTOMATIC CUTTING SYSTEM |
|

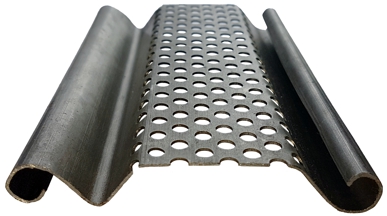

VIDEO OF OUR MODEL: RSS-6.0/SS USING MICRO-PERFORATED STAINLESS STEEL STRIPS |
|
VIDEO OF OUR MODEL: RSS-4.5/LD WITH SIX PAIRS OF ROLLS |
|
VIDEO OF OUR MODEL: RSS-6.0/LD WITH SIX PAIRS OF ROLLS |
|
VIDEO OF OUR MODEL: RSS-5.0/LD WITH SIX PAIRS OF ROLLS |
|
VIDEO OF OUR MODEL: RSS-4.5 WITH EIGHT PAIRS OF ROLLS |
|
VIDEO OF OUR MODEL: RSS-4.5 WITH SIX PAIRS OF ROLLS |
Model: RSS-4.5 with 8 pairs of Rolls
Standard Accessories:
- Electric Motor
- Starter
- ‘V’ Belts
- Coil Stand
- One set of rolls
Optional Accessories:
- Manual Abrasive Cutting Arrangement
- Automatic PLC-based Cutting Arrangement
Coil Stand

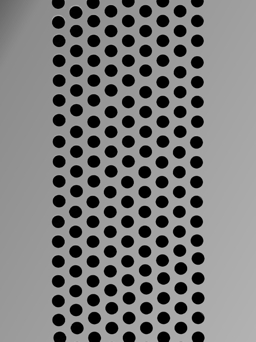

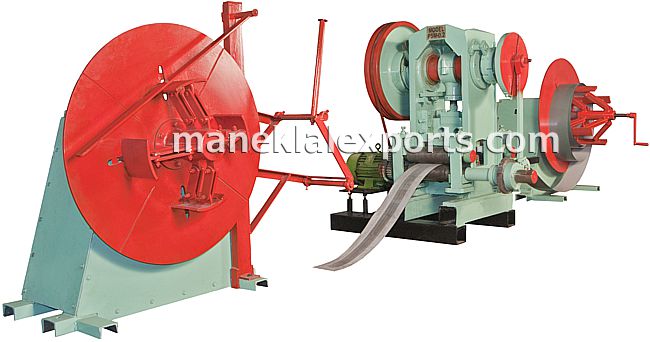

Micro-Perforating Machine
Model: PSM-0.2
Specifications:
| Perforating Machine Model: | PSM-0.2 |
|---|---|
| Capacity Width: | up to 200 mm |
| Diameter of Hole: | 3 mm or higher |
| Thickness of Sheet: | 0.6 to 1.2 mm |
| Strokes per minute: | 160 |
| Main Motor: | 3 HP |
| Net / Gross Weight: | 750 / 1100 kg |
| Dimensions: | 1.5 x 1.2 x 1.4 m |
| Shipping Volume: | 3 m3 |
| De-Coiler Capacity: | 800 to 1200 kg |
| Type: | Flexible |
| Max. Strip Width: | 200 mm |
| De-Coiler Motor: | 2 HP |
| Net / Gross Weight: | 225 / 450 kg |
| Dimensions: | 1.1 x 1.3 x 1.3 m |
| Shipping Volume: | 2 m3 |
| Coiler Capacity: | 800 to 1200 kg |
| Max. Strip Width: | 200 mm |
| Coiler Motor: | 2 HP |
| Speed: | Synchronized with perforating machine with Frequency Drive |
| Net / Gross Weight: | 250 / 500 kg |
| Dimensions: | 1.5 x 1.1 x 1.3 m |
| Shipping Volume: | 2.5 m3 |

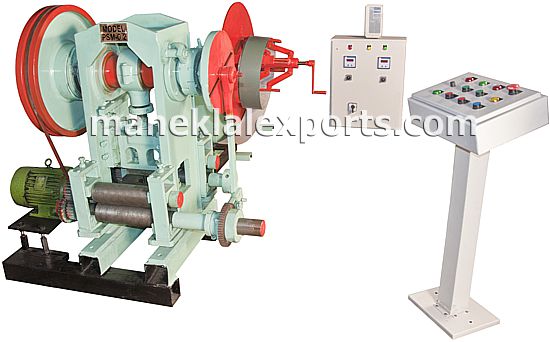

Model: PSM-0.2
VIDEO OF OUR MICRO-PERFORATING MACHINE MODEL: PSM-0.2
Standard Accessories:
- Main Machine: Electric Motor, Control Panel, Operation Panel, One pair of dies for micro-perforation of any one diameter above 3 mm
- De-Coiler: Electric Motor
- Coiler: Electric Motor and AC Drive
Optional Accessories:
- Additional pair of dies for round or capsule-shaped perforation

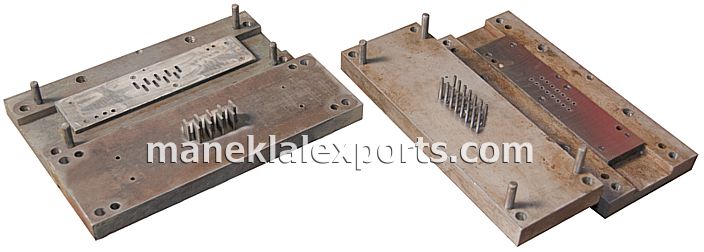

Perforating Dies

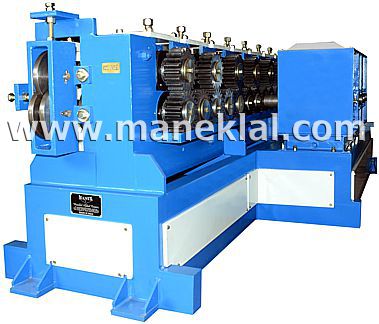

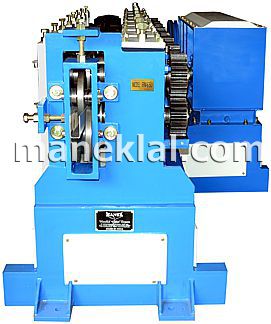

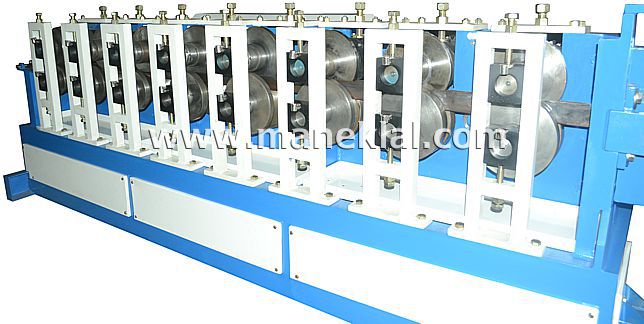

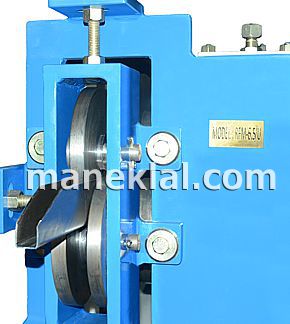

Roll Forming Machine to make Guides ('U' Channels)
Features:
- Machine constructed from steel
- Machine fitted with a number of rolls with forming dies, through which a cut strip is passed
- In a single pass, the desired 'U' Channel is formed
- Drive of the machine through machine cut gears
- Rolls rotate in bearings having lubrication arrangement
- Necessary guides and supports are provided for the strips to pass through rolls
- Coil roll can be loaded
Specifications:
| Model: | RFM-6.5/U |
|---|---|
| Capacity - Width of Strip: | up to 6.5" (165 mm) |
| Capacity - Max. thickness of sheet: | 3/32" (2.4 mm) |
| Capacity - Min. thickness of sheet: | 1/16" (1.6 mm) |
| Capacity - Max. length: | no limit |
| Number of Rolls: | 8 pairs |
| Machine Speed: | 900 Feet / Hour 270 Meters / Hour |
| Motor: | 15 HP |
| Net / Gross Weight: | 3850 / 4250 kg |
| Dimensions: | 3.75 x 1.75 x 1.55 m |
| Shipping Volume: | 10 m3 |
|
|
VIDEO OF OUR ROLL FORMING MACHINE TO
MAKE GUIDES / 'U' CHANNELS MODEL: RFM-6.5/U

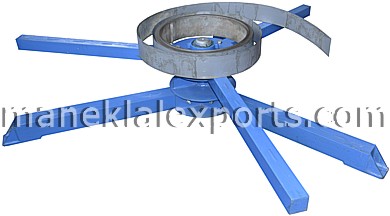

Coil Stand of 3.5 ton capacity
Standard Accessories:
- Electric Motor
- Starter
- 'V' Belts
- Coil Stand
- One set of rolls for making any one size of 'U' Channel
Optional Accessories:
- Additional sets of rolls or spacers for making other sizes of 'U' Channels
- Manual Abrasive Cutting Arrangement or Automatic PLC-based Cutting Arrangement
Roll Forming Machine to make 'L' Type Bottom Strips
Features:
- Machine constructed from steel
- Machine fitted with a number of rolls with forming dies, through which a cut strip is passed
- In a single pass, the desired 'L' Type Bottom Strip is formed
- Drive of the machine through machine cut gears
- Rolls rotate in bearings having lubrication arrangement
- Necessary guides and supports are provided for the strips to pass through rolls
- Coil roll can be loaded
|
|
Specifications:
| Model: | RFM-7.0/L |
|---|---|
| Capacity - Width of Blank Strip: | 195 mm |
| Width of Finished / Formed Strip: | 130 mm |
| Capacity - Max. thickness of sheet: | 2.2 mm |
| Capacity - Min. thickness of sheet: | 1.8 mm |
| Capacity - Max. length: | no limit |
| Number of Rolls: | 8 pairs |
| Machine Speed: | 900 Feet / Hour 270 Meters / Hour |
| Motor: | 15 HP |
| Net / Gross Weight: | 3850 / 4250 kg |
| Dimensions: | 3.75 x 1.75 x 1.55 m |
| Shipping Volume: | 10 m3 |
Coil Stand of 3.5 ton capacity
- Standard Accessories: Electric Motor, Starter, 'V' Belts, Coil Stand, one set of rolls for making 'L' Type Bottom Strip
- Optional Accessories: Manual Abrasive Cutting Arrangement or Automatic PLC-based Cutting Arrangement

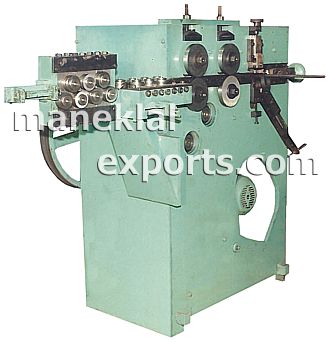

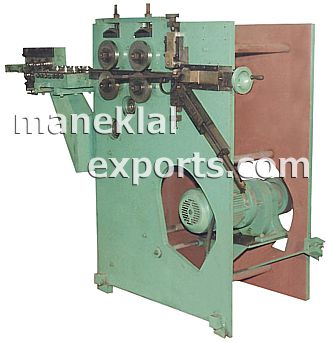

Rolling Shutter Spring Making Machine
|
|
Specifications:
| Model: | RSSM-8 | RSSM-9 |
|---|---|---|
| Capacity Wire Diameter: | 8 mm | 9.5 mm |
| Motor: | 5 HP | 5 HP |
| Net / Gross Weight: | 1000 / 1350 kg | 1000 / 1350 kg |
| Shipping Volume: | 4.5 m3 | 4.5 m3 |
Standard Accessories
- Electric Motor
- Gear Box
- Starter
- 'V' Belts
- Coil Stand
