Perforated Sheet Making Machine
|
|
Operation:
- The machine is used for perforating sheets of metal, plastic, paper, etc.
- The sheet is fed to the machine by means of a Roller System Mechanism.
- The die is preloaded on the machine.
- On feeding the sheet, the upper section of the machine starts stroking.

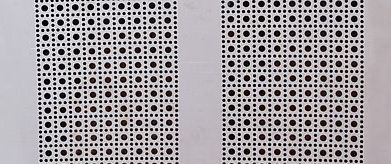

- The sheet is perforated as per the die and is advanced by the amount of the perforated pitch set on the machine, with the next stroke of the slide.
- This cycle of feeding and perforating continues automatically.
|
|

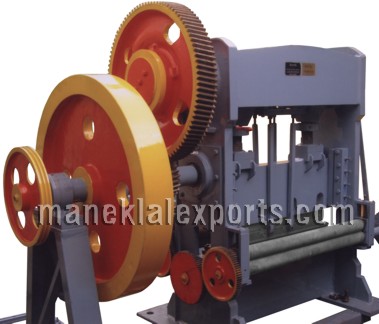

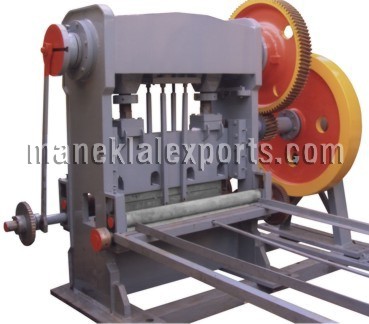

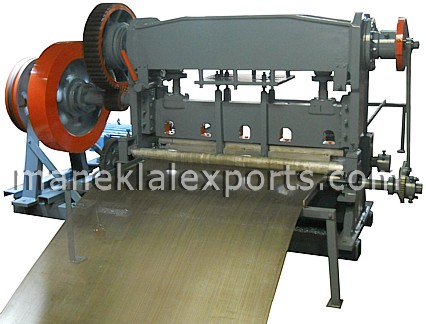

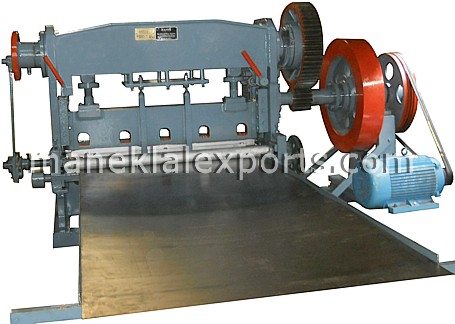

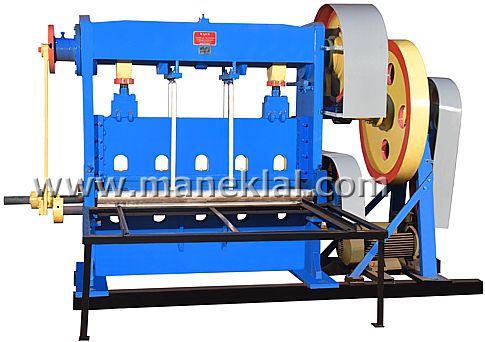

| Model: PSM-1.0 | Model: PSM-1.2L |
|---|
Specifications:
| Model: | PSM-0.2 | PSM-0.7 | PSM-1.0 | PSM-1.2L | PSM-1.2H |
|---|---|---|---|---|---|
| Capacity Width (mm): | 200 | 700 | 1000 | 1250 | 1200 |
| Diameter of Hole (mm): | 1 to 8 | 1 to 8 | 1 to 8 | 3 to 10 | 5 to 20 |
| Thickness of Sheet (mm): | 0.6 to 1.2 | 0.4 to 0.7 | 0.2 to 0.7 | 0.4 to 1.24 | 1.0 to 3.0 |
| Strokes per minute: | 160 | 100 | 60 | 50 | 40 |
| Motor (HP): | 3 | 5 | 5 | 10 | 20 |
| Net / Gross Weight: | 975 / 1200 | 1900 / 2100 | 2600 / 3000 | 5500 / 6500 | 8000 / 9000 |
| Dimensions (m): | 1.5 x 1.5 x 1.0 | 2.5 x 1.0 x 1.8 | 2.6 x 1.1 x 1.9 | 3.3 x 1.2 x 1.9 | 3.3 x 1.3 x 2.0 |
| Shipping Volume (m3 ): | 2.50 | 5.00 | 6.00 | 8.00 | 9.00 |
 |
 |

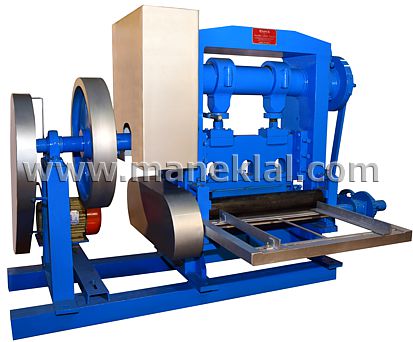

| Modelo: PSM-0.2 (con equipo auxiliar opcional: desbobinadora y bobinadora) | Modelo: PSM-0.7 |
|---|
Accesorios Estándar: Motor, Arrancador, Bandas en ‘V’, Un juego de matriz para el diámetro de perforación requerido
Equipo Auxiliar: Desbobinadora, Bobinadora, Cizalla
Modelo: PSM-1.0
VIDEO OF OUR MICRO-PERFORATING MACHINE MODEL: PSM-0.2
VIDEO OF OUR PERFORATING MACHINE MODEL: PSM-0.7
VIDEO 1 OF OUR PERFORATING MACHINE MODEL: PSM-1.2L
VIDEO 2 OF OUR PERFORATING MACHINE MODEL: PSM-1.2L
