Guillotine Paper Cutting Machines

Automatic Hydraulic Paper Cutting Machine Automatic Mechanical Paper Cutting Machine Semi-Automatic Mechanical Paper Cutting Machine
Standard Paper Cutting Machine Three Knife Trimming Machine

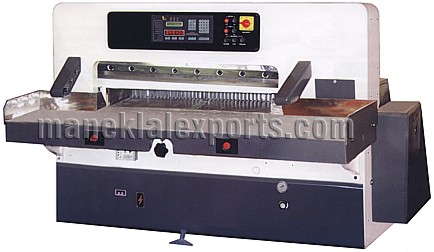

Fully Automatic, Programmable, High Speed Hydraulic Guillotine Paper Cutting Machine

Features:

  • Machine suitable for Paper, Board, Veneers, Plastic & Metal Foils
  • Programme: The machine can store 99 programmes and the capacity of one programme is 99 cuts. Accuracy of the programme is 0.01 mm or 0.001 inch. Conversion in inch and mm fractions is also possible
  • Mode: Single Cut & Multi Cut
  • Back Gauge Accuracy Control through Ground Guide System
  • Air cushion table for easy movement of heavy stock
  • Infrared photo cell safety device
  • Adjustable variable clamping pressure: 300 to 4500 kg
  • Hydraulic Power Pack unit with double pressure cylinder
  • Precision cutting
  • Lighting on cutting edge
  • Knife easily changeable & adjustable by single operator
  • Extended side tables for stocking
  • Drive Gears in oil bath
  • Frame, Tables & Knife holder of graded cast iron

Model AHC-45
Max. Cutting Width: 1150 mm
Feed Depth: 1150 mm
Clamp Opening: 160 mm
Front Table: 700 mm
Table Height: 900 mm
Smallest Cut: 20 mm
Clamp Pressure min. / max.: 300 / 4500 kg
Cuts per minute: 40 - 42
Power - Main Drive: 5 HP
Power - Back Gauge: 1 HP
Power - Blower: 1 HP
Net / Gross Weight: 3500 / 3800 kg
Dimensions: 2.6 x 1.8 x 1.6 m
Shipping Volume: 8.0 m3

Standard Accessories:

Automatic Mechanical Paper Cutting Machine (with electromagnetic clutch)

Model AMC-43
Machine Size 43"
Max. Cutting Width 43"
Max. Cutting Depth 43"
Max. Lift (Pile Cut) 5"
Table length in front of cutting line 24"
Cuts per minute (continuous running) 25
Motor 5.0 HP
Gross Weight 3000 kg
Shipping Volume (m3 ) 4.0

Standard Accessories:

  • Electricals
  • 2 knives
  • Set of tools

Optional Accessories:

  • Auto Measure Back Gauge

Semi-Automatic Mechanical Paper Cutting Machine

Model SMC-33 SMC-36 SMC-43
Machine Size 33" 36" 43"
Length of Cut 33" 36" 43"
Width of Cut 33" 36" 43"
Pile Cut 4" 4.5" 5"
Cuts per Minute 30 28 25
Motor 2.0 HP 3.0 HP 3.0 HP
Gross Weight 1600 kg. 1800 kg. 2000 kg.
Shipping Volume (m3 ) 3.5 3.75 4.00

Standard Accesories:

  • Electricals
  • 2 knives
  • Set of tools

Standard Paper Cutting Machine

Model SPC-18 SPC-26 SPC-32 SPC-36 SPC-42 SPC-52
Machine Size 18" 26" 32" 36" 42" 52"
Length of Cut 18" 26" 32" 36" 42" 52"
Width of Cut 18" 26" 32" 36" 42" 52"
Pile Cut 3.5" 4" 4" 4.5" 5" 5.5"
Cuts per Minute 35 33 30 28 25 20
Motor (HP) 0.75 1.0 2.0 2.0 3.0 3.0
Gross Weight (kg) 500 800 1100 1400 1700 2000
Shipping Volume (m3 ) 1.15 2.85 3.45 3.65 4.00 5.50

Standard Accesories:

  • Electricals
  • 2 knives
  • Set of tools

Three Knife Trimming (Three Edge Trimming) Machine

Features:

  • Suitable for trimming of books, magazines, catalogues, etc.
  • Automatic pre-clamping of pile of books
  • Automatic pile slide into cutting station
  • Feeding of books away from the knife zone (cutting station)
  • Stepless, auto-adjustable, hydraulic book clamping
  • Electromagnetic drive clutch & brake system
  • Automatic cycle control
  • Quick change knife setting
  • Easy set-up & job change over
  • Centralized lubrication system

Specifications:

Model: TKT-20
Speed: 20 cycles / minute
Trimmed Size (min.): 70 x 100 mm
Trimmed Size (max.): 260 x 370 mm
Pile Height (min.): 8 mm
Pile Height (max.): 110 mm
Pre-Clamping Opening (max.): 125 mm
Pre-Clamping Pressure: 2500 kilos
Total Power: 6 HP
Net / Gross Weight: 3000 / 3500 kg
Shipping Volume: 6.0 m3

Standard Accessories

  • Electricals
  • Knives
  • Set of tools
