Paint Roller Handle / Wire Making Machine
|
|
|
Model: PRH-30
Specifications:
| Model: | PRH-30 | PRH-30/T |
|---|---|---|
| Threading Attachment: | NO | YES |
| Wire Size (mm): | 3 - 6 | 3 - 6 |
| Production Capacity (pieces / minute): | 30 | 30 |
| Motor: | 3 HP | 5 HP |
| Net / Gross Weight (kg): | 1900 / 2350 | 2000 / 2500 |
| Dimensions (m): | 3.3 x 1.4 x 2.1 | 3.3 x 1.4 x 2.1 |
| Shipping Volume (m3 ): | 10 | 10 |

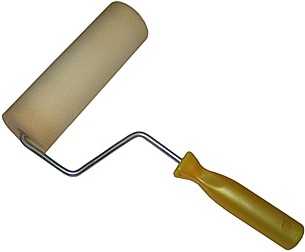

NOTE: The automatic machine straightens, cuts, bends, makes notches on the wire to make the handle for paint rollers. The PRH-30/T also makes the threads on the handle.
Standard Accessories:
- Electric Motor
- Control Panel
- Wire Coil Stand
- Die for making any one size of Handle
Optional Accessories:
- Guard for Flywheel (guard shown on photographs is optional accessory)
- Additional Dies for other sizes of Handles
|
|

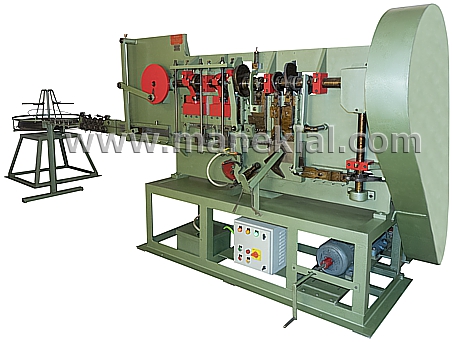

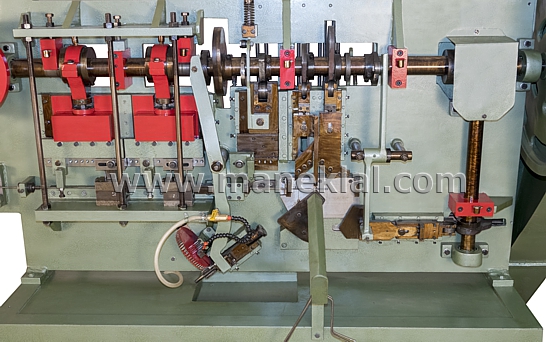

| Model: PRH-30/T | |
|---|---|
|
VIDEO OF THE PAINT ROLLER HANDLE WIRE MAKING MACHINE MODEL: PRH-30 |
|---|
|
VIDEO 1 OF THE PAINT ROLLER HANDLE WIRE MAKING MACHINE MODEL: PRH-30/T with Threading Attachment |
|
VIDEO 2 OF THE PAINT ROLLER HANDLE WIRE MAKING MACHINE MODEL: PRH-30/T with Threading Attachment |
|
|

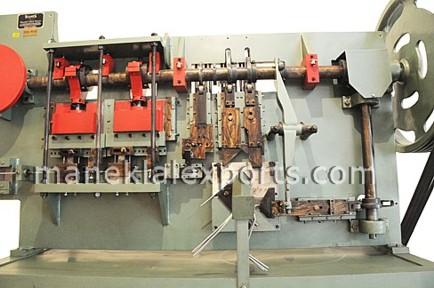

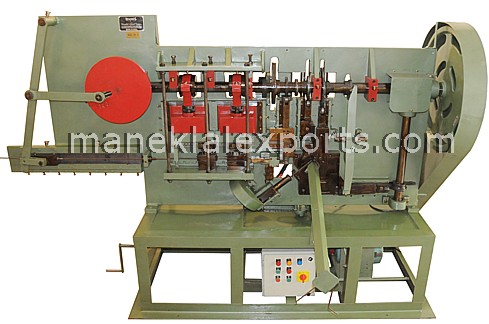

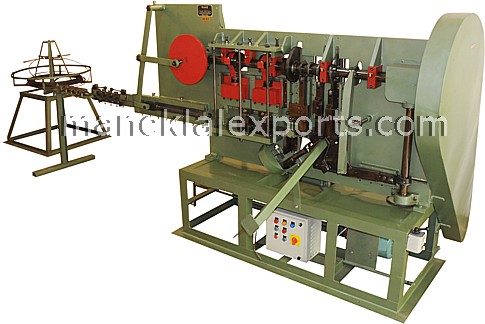

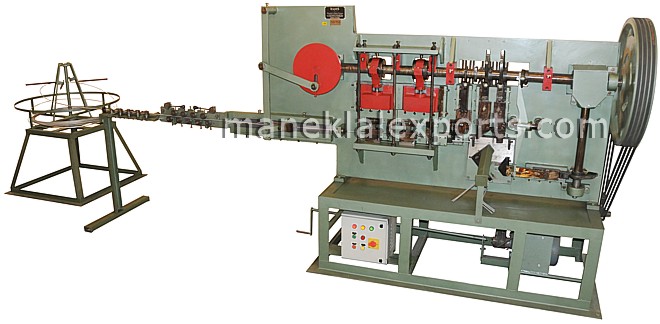

| Model: PRH-30 | Model: PRH-30/T |
|---|---|
|
|
| Model: PRH-30/T | |

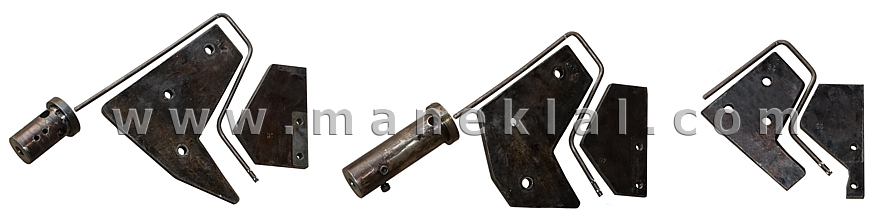

Additional Dies for Different Sizes of
Paint Roller Handles for Model: PRH-30/T
