Cement Terrazzo / Mosaic / Encaustic Cement Flooring Tile Making Machines

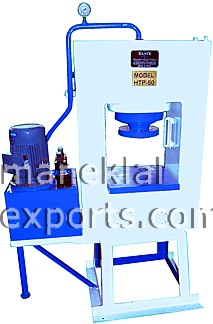

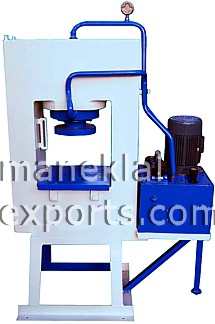

Model: HTP-50	Model: HTP-80	Model: HTP-50

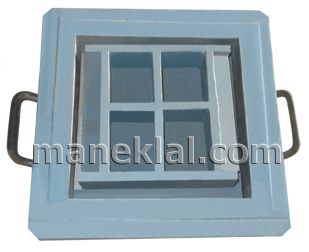

Plain Square Tile Moulds	Hexagonal Tile Moulds	Trianglular Tile Moulds

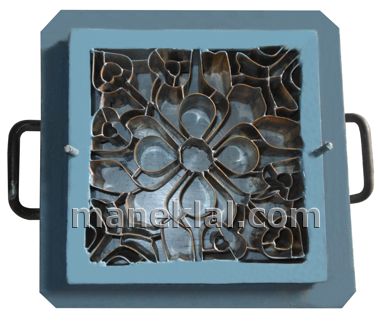

Design Tile Moulds

Textures Tile Moulds


Automatic Grinder for Tiles - AG-32	Super Leveling Machine for Polishing - TP 20
Requires sand for grinding. Flexible working pressure. Sharp edges and corners assured. Hydraulic pressure in grinding the tiles ensures smooth, symmetrical and uniform tiles. Automated wash facility following grinding. Production: 3200 tiles per 8 hours. Motor: 10 HP	Diameter of disc: 5.5’ (1650 mm) Batch Capacity: 24 tiles of 8” x 8” (200 x 200 mm) 20 tiles of 10” x 10” (250 x 250 mm) 16 tiles of 12” x 12” (300 x 300 mm) Batch Cycle Time: 15 minutes Motor: 5 HP

Automatic Grinder for Tiles - AG-32

Super Leveling Machine for Polishing - TP 20

Requires sand for grinding. Flexible working pressure. Sharp edges and corners assured.
Hydraulic pressure in grinding the tiles ensures smooth, symmetrical and uniform tiles.
Automated wash facility following grinding.
Production: 3200 tiles per 8 hours.
Motor: 10 HP

Diameter of disc: 5.5’ (1650 mm)
Batch Capacity:
- 24 tiles of 8” x 8” (200 x 200 mm)
- 20 tiles of 10” x 10” (250 x 250 mm)
- 16 tiles of 12” x 12” (300 x 300 mm)
Batch Cycle Time: 15 minutes
Motor: 5 HP


Marble Chips Jaw Crusher - MCJ-8/4	Chip Mixer - CM-1/2 & Vibrating Screen - VS-2
Size: 8" x 4" with 5 HP motor Vibrating screen with 2 HP motor	Half Bag capacity mixer with drum fabricated from M.S. sheet. A set of thick M.S. blades provided for uniform mixing. Drum Speed: 25 to 30 rpm. With 2 HP motor.

Marble Chips Jaw Crusher - MCJ-8/4

Chip Mixer - CM-1/2 & Vibrating Screen - VS-2

Sand Mixer - SM-3

Ball Mill Drum (Colour Mixer) - BM-150

Pan & Roller type Colour Mixer - PR-115


Tile Cutting Machine - TCM-14	Floor Polishing Machine - FPM-1
14" Cutter. Max. tile size: 300 x 300 mm. With 2 HP motor	Driven by 1.5 HP Motor

Tile Cutting Machine - TCM-14

Floor Polishing Machine - FPM-1

14" Cutter. Max. tile size: 300 x 300 mm. With 2 HP motor

Driven by 1.5 HP Motor

Sand Mixer - SM-3	Ball Mill Drum (Colour Mixer) - BM-150	Pan & Roller type Colour Mixer - PR-115

Half Bag capacity mixer, half round, fabricated from M.S. sheets. A set of thick M.S. blades provided for uniform mixing. With 3 HP motor.	Barrel made from dual M.S. cones size 3' x 2'. Arrangement provided for speed control. Leak proof lid. Fast and accurate in colour mixing. Capacity 150 kgs. per batch. Ideal speed: 38 to 42 rpm. With 2 HP motor.	Main shaft and Roller shaft of Mild Steel. Special Gun Metal bush provided to resist against friction and load. Thrust bearings provided. Capacity 115 kgs. Recommended rpm: 60. With 5 HP motor.
