Marble and Granite Cutting and Polishing Machines
| Slide Cutting Machine | Trolley Type Cutting Machine | Polishing Machine (Hand Operated) | |||
| Polishing Machine (Pneumatically Operated) | Twin Head Auto Polisher | ||||

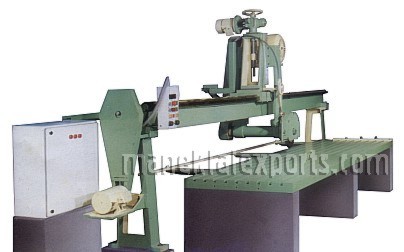

Slide Cutting Machine
| Size of Slide | Max. Cutting Length | Vertical Movement | Horizontal Movement |
|---|---|---|---|
| 5' | 4' x 2.5' | Light Duty / Manual | -- |
| 7' | 6' x 2.5' | Light Duty / Manual | -- |
| 10' | 8' x 2.5' | Light Duty / Manual / Auto | -- |
| 10' | 8' x 3' | 100 mm | 50 mm |
| 12' | 10' x 3' | 100 mm | 50 mm |
| 15' | 12' x 3' | 150 mm | 50 mm |
Minimum Water Requirement: 15 Liters per Minute

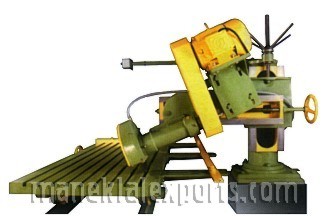

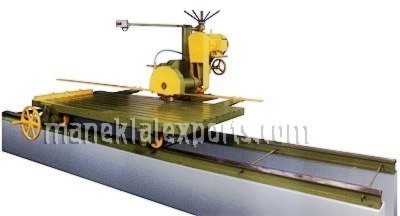

Trolley Type Cutting Machine
Features and Specifications:
- Size of Trolley: 7' x 3' (Standard)
- Maximum Capacity to cut marble / granite size: 8' x 4'
- Rail: 15' Long, 2 numbers (one 'V' type and one 'Square' Type)
- Minimum Water Requirement: 15 Liters per Minute
- Spindle Vertical Movement: 540 mm
- Spindle Horizontal Movement: 500 mm
- Spindle Angular Adjustment from vertical: 45° on either side
- Cutter Speed: 2800 rpm (Depends on the disc diameter and material to be sawed. It is recommended that you provide this information when placing the order)
- Motor: 7.5 HP or 10 HP
Also available in following sizes
- 4' x 2.5' with rail length: 10'
- 6' x 2.5' with rail length: 12'
- 8' x 3' with rail length: 15'
- 10' x 3' with rail length: 18'

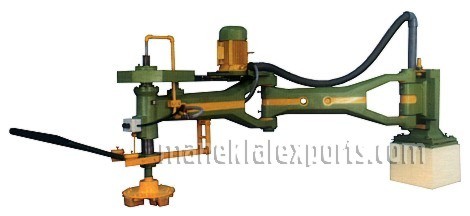

Polishing Machine (Hand Operated)
Size: 8' x 4'
| Size | 8' x 4' | 10' x 6' |
|---|---|---|
| Size of Front Arm | 1118 mm | 1230 mm |
| Size of Rear Arm | 1080 mm | 1280 mm |
| Vertical Movement | 150 mm | 175 mm |
| Head for Polishing Stone (Frankfurt Type) | 250 mm | 250 mm |
| RPM of head | 450 | 450 |
| Max. size of stone polished in one setting | 8' x 4' | 10' x 6' |
| Motor | 3 HP | 5 HP |
| Size of Installation | 10' x 10' | 12' x 12' |
| Net. Weight | 500 kg. | 600 kg. |

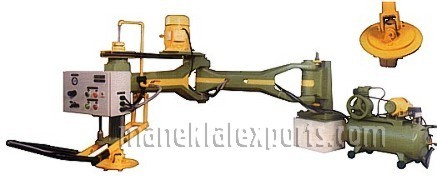

Polishing Machine (Pneumatically Operated)
Size: 8' x 4'
| Size | 8' x 4' | 10' x 6' |
|---|---|---|
| Size of Front Arm | 1195 mm | 1270 mm |
| Size of Rear Arm | 1080 mm | 1498 mm |
| Vertical Movement | 150 mm | 210 mm |
| Head for Polishing Stone (Frankfurt Type) | 250 mm | 250 mm |
| RPM of head | 450 | 450 |
| Max. size of stone polished in one setting | 8' x 4' | 10' x 6' |
| Motor (Spindle) | 5 HP | 5 HP |
| Motor (Compressor) | 1 HP | 1 HP |
| Size of Installation | 10' x 10' | 12' x 12' |
| Net Weight | 600 kg. | 1115 kg. |
| Gross Weight | 1435 kg. | |
| Shipping Volume: | 2.2 m3 |
| Number of Spindles | 2 |
|---|---|
| Electric Motor on each spindle: | 15 HP |
| Water Pump: | 3 HP |
| Max. Working Width: | 2000 mm |
| Max. Polishing Length: | 40' |
| Max. Working Thickness: | 100 mm |
| Diameter of Polishing Head: | 450 mm |
| Bridge Travel ('X' movement): | 3 HP |
| Head Travel ('Y' movement): | 2 HP |
| Min. Water Requirement: | 40 Liters / Hr. |
| Space Requirement: | 1500 x 450 x 240 cm. |
| Machine Weight (Approx.) | 4000 kg. |
