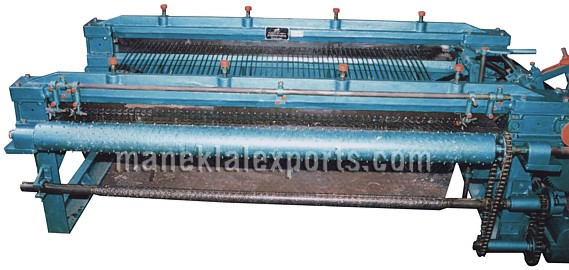

Hexagonal Wire Netting Machine
Features:
- Machine produces TRIPLE TWIST type of mesh.
- Machine produces netting from spiral coil and pre-coiled bobbins.
- Both a Bobbin Winding and a Spiral Winding machine are required to make the spiral coil and pre-coiled bobbins required to make the mesh on these machines.
- Machine supplied with toolings to make any one size of mesh in different gauge thickness. Other mesh sizes can be made with additional main rack and parts supplied as optional equipment at additional cost.
Operation:

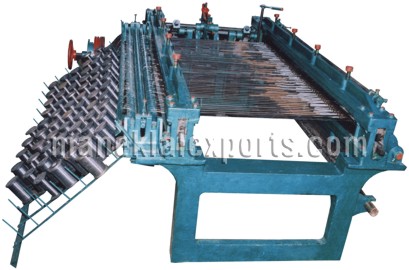

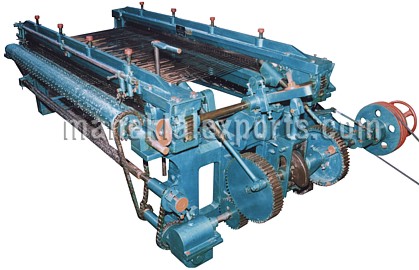

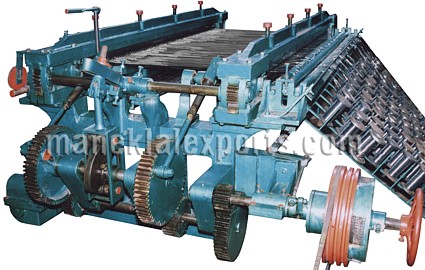

- Hexagonal Wire Netting Machine has a circular pinion holder on the front and rear of the machine.
- The wires fed from the bobbins and the spiral coils (prepared in spiral coiling machine) placed on the front and rear rack of the machine produces the netting.
- The net is pulled out by the take-up roller with stands on the surface of the machine and wound automatically on the winding roller.
- When the required length of netting is produced, the net is cut and removed from the roller manually.
Specifications:
| Model: | HWN-2L | HWN-2M | HWN-2H | HWN-2HD |
|---|---|---|---|---|
| Weaving Width (mm): | 2000 | 2000 | 2000 | 2000 |
| Mesh Size (mm): | 15 - 20 | 25 | 40 - 50 | 50 |
| Thickness Range (mm): | 0.4 - 0.9 | 1.0 - 1.2 | 1.2 | 1.2 - 1.6 |
| Motor (HP): | 3 | 5 | 7.5 | 15 |
| Net / Gross Weight (Kg.): | 2500 / 3500 | 2500 / 3500 | 2500 / 3500 | 3000 / 4000 |
| Overall dimensions (m): | 3.20 x 2.00 x 1.10 | 3.20 x 2.00 x 1.10 | 3.20 x 2.00 x 1.10 | 3.20 x 2.00 x 1.10 |
| Shipping Volume (m3 ): | 7.10 | 7.10 | 7.10 | 7.10 |
VIDEO OF HEXAGONAL WIRE NET MAKING MACHINE MODEL: HWN-2M & AUXILIARY BOBBIN & SPIRAL WINDING MACHINES
VIDEO OF HEXAGONAL WIRE NET MAKING MACHINE MODEL: HWN-2M
Standard Equipment:
- Electric Motor
- Toolings suitable to make any one mesh size in different thickness wire
Optional Equipment:
- Additional Main Rack and parts suitable to make other mesh sizes

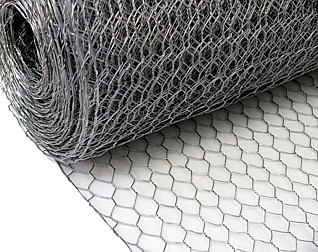

Production Chart of Hexagonal Wire Rolls
(in Number of Rolls Per shift of 8 Hours) Roll Size: Width: 900 mm x Length: 45 meters
| Gauge (SWG) | 15 mm Mesh | 20 mm Mesh | 25 mm Mesh | 40 mm Mesh | 50 mm Mesh |
|---|---|---|---|---|---|
| 18 | -- | -- | 4 | 8 | 10 |
| 20 | 3 | 6 | 8 | 12 | 14 |
| 22 | 6 | 8 | 10 | 12 | 14 |
| 24 | 8 | 10 | 12 | -- | -- |
| 26 | 8 | 10 | -- | -- | -- |
In weight of Hexagonal Wire Roll (kg). Roll Size: Width: 900 mm x Length: 45 meters
| Gauge (SWG) | 15 mm Mesh | 20 mm Mesh | 25 mm Mesh |
|---|---|---|---|
| 20 | 31 | 26 | 20 |
| 22 | 22 | 16 | 11.5 |
| 24 | 15 | 10 | 8 |
Auxiliary Equipment:
Bobbin Winding Machine:
- Model: BWM-5 (for 5 bobbins) with 1 HP Motor
- Net / Gross Weight (Kg.): 300 / 400
- Overall Dimensions (m): 2.00 x 1.50 x 1.05
- Shipping Volume (m3 ): 3.15
Spiral Winding Machine
- Model: SWM-1 with 1 HP Motor
- Net / Gross Weight (Kg.): 175 / 250
- Overall Dimensions (m): 1.80 x 0.90 x 1.60
- Shipping Volume (m3 ): 2.60
