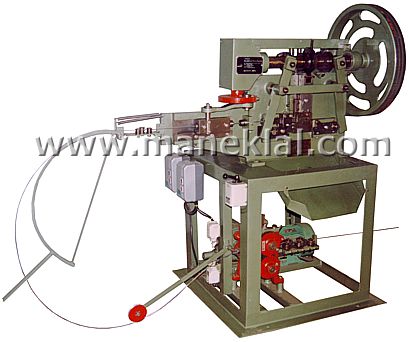

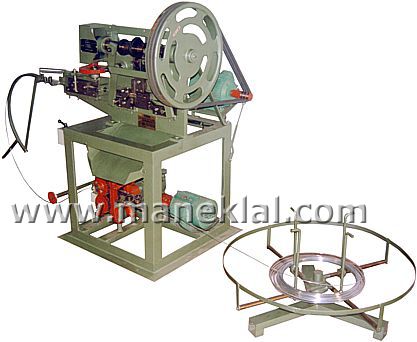

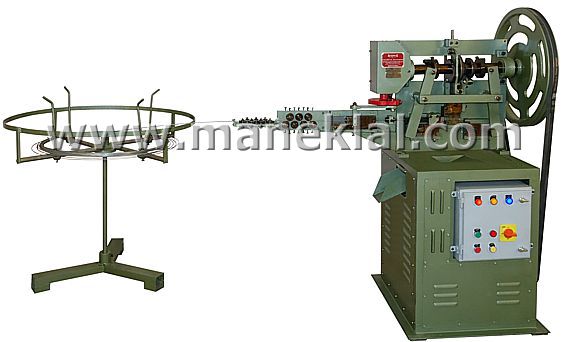

'G' Nail / Wool Bale Clip / Bale Fastener Making Machines
|
|
| Model: GNM-120 | Model: GNM-120F (with wire flattening) |
|---|
Specifications:
| Model: | GNM-120 | GNM-120F |
|---|---|---|
| Wire Flattening: | NO | YES |
| Wire Gauge Size (SWG): | 10 to 17 Gauge | 10 to 17 Gauge |
| Production Capacity: | 80 to 100 ‘G’ Nails per Minute | 80 to 100 ‘G’ Nails per Minute |
| Motors (HP): | 3 HP | 3 HP & 2 HP |
| Net / Gross Weight (Kg.): | 250 / 400 | 500 / 600 |
| Approx. Dimensions (m): | 2.0 x 1.0 x 1.7 | 2.0 x 1.2 x 1.7 |
| Shipping Volume (m3 ): | 3.50 | 4.00 |
Standard Accessories:
- With GNM-120: Electric Motor, Control Panel, Coil Stand, One Set of Toolings (for any one size of Nail)
- With GNM-120F: Two Electric Motors, Control Panel, Coil Stand, One Set of Toolings (for any one size of Nail)
Extra Accessories:
- Additional Set of Toolings (for other sizes of 'G' Nails)
