Poultry and Cattle Feed Equipment

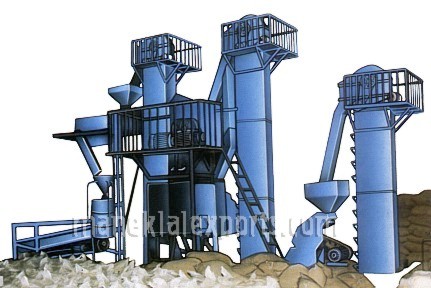

Complete Feed Mill of
Capacity Two Metric Tons and 4 Metric Tons per Hour comprising of the following three
sections:
Section I: GRINDING SECTION : Comprising of a Bucket Elevator, a Hammer Mill (Grinder) and a Magnetic Separator
Section II: MIXING SECTION : Comprising of a Bucket Elevator, a Horizontal Feed Mixer and a Batch Bin above the mixer
Section III: PALLETING SECTION : Comprising of a Bucket Elevator and a Pallet Mill
Section I (Grinding Section)
BUCKET ELEVATOR: Heavy Duty 18 Feet High to carry raw feed ingredients to the hammer mill with 3 HP electric motor
HAMMER MILL: The Hammer Mill is a high output gravity flow mill and has the functions of Grinding and Grading. The fineness of the grinding is adjusted by changing the perforated screens, which can be changed within minutes.
Features and Specifications of the Hammer Mill:
- Swinging Hammers
- Simple feeding adjustment
- Magnetic Plate fitted in the hopper above the grinder to catch iron trash etc., entering the feed grinder
- Capacity: 2 MT / Hr. and 4 MT / Hr.
- Electric Motor: 15 HP or 20 HP
Section II (Mixing Section)
BUCKET ELEVATOR: Heavy Duty 21 Feet High to carry raw feed from Hammer Mill to Batch Bin above the Mixer with 3 HP electric motor

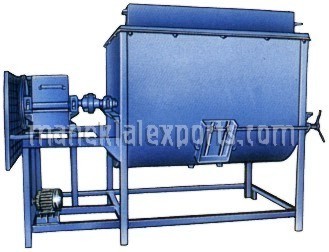

HORIZONTAL FEED MIXER: The horizontal mixers are most suitable for processing animal feeds i.e. for Poultry, Cattle, Pigs, Sheep and Aqua Feeds. These mixers are a versatile machine and produce a homogenous mix of ingredients. Molasses, liquids, fats, etc. can be directly added.
Features and Specifications of the Mixer:
- Unique tumbling action gives good uniform and homogenous mixing
- Slow moving 'Soft Mix' action eliminates product damage and degradation
- Within a matter of five minutes an excellent and homogenous mix is prepared
- Size: 50 Cubic Feet and 100 Cubic Feet
- Capacity: 2 MT per Hour OR 4 MT per Hour
- Electric Motor: 15 HP or 20 HP
Section III (Palleting Section)
For Cattle Feed Only:
- Bucket Elevator: Heavy-duty to carry mixed ingredients to Palletizer with 3 HP electric motor.
- Palleting Machine: Vertical type with one die of size 9 x 18 mm, capacity of 1.5 to 2 MT/Hr, with 75 HP electric motor.
- Pallet Cooling Sieve with Exhaust Fans: To cool the pallets, with a 2 HP electric motor.
- Batch Bin: Over the Palleting Machine.
For Poultry and Cattle Feed:
- Bucket Elevator: Heavy-duty to carry mixed ingredients to Palletizer with 3 HP electric motor.
-
Palleting Machine: Horizontal type with one die of size 3 mm and another of 9 mm.
- 2 MT/Hr with 75 HP electric motor
- 4 MT/Hr with 125 HP electric motor
- Steam Boiler with Pressure Reducing Station and 5 HP motor.
- Pallet Cooling Sieve with Exhaust Fans: To cool the pallets, with a 2 HP electric motor.
- Batch Bin: Over the Palleting Machine.
