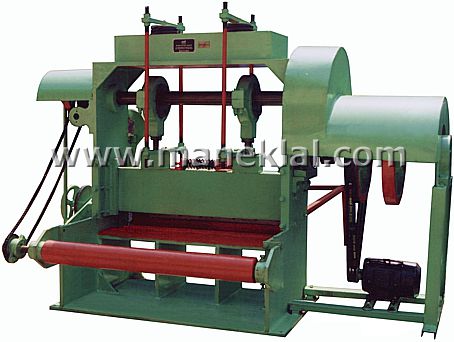

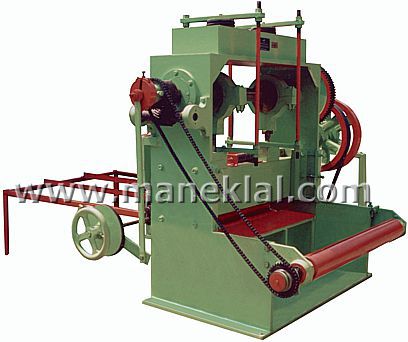

Machine for making Expanded Metal Mesh

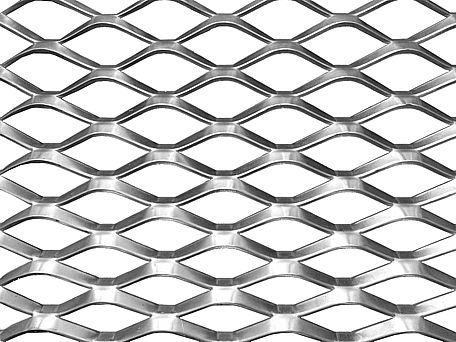

Steel, Aluminium, Brass and other non-ferrous metal sheets formed into mesh by cutting and stretching
Operation:
- The sheet is fed to the blades by means of rollers.
- A toothed upper blade cuts the sheet in conjunction with the straight stationary lower blade at right angle to the feed direction.
- A web of certain width remains standing, which is stretched when the upper blade goes down.
- With the next stroke of the slide, the cycle is repeated.
- The operation of Cutting - Stretching - Feeding is automatic.
Specifications:
| Model: | EMM-0.6 | EMM-1.0 | EMM-1.2/HS | EMM-1.2 | EMM-1.2/HD | EMM-1.5 | EMM-2.5 |
|---|---|---|---|---|---|---|---|
| Capacity of Width (mm): | 600 | 1000 | 1220 | 1220 | 1220 | 1500 | 2500 |
| Minimum Mesh (mm): | 3 x 6 | 3 x 6 | 5 x 10 | 5 x 10 | 5 x 10 | 5 x 10 | 12 x 25 |
| Thickness (mm): | 0.3 - 0.7 | 0.3 - 0.9 | 0.4 - 0.9 | 0.9 - 2.0 | 2.0 - 3.5 | 0.9 - 2.0 | 1.0 - 3.0 |
| Speed (Stroke per Minute): | 70 | 60 | 120 | 60 | 40 | 50 | 60 |
| Motor (HP): | 3 | 5 | 7.5 | 15 | 30 | 25 | 30 |
| Net / Gross Weight (Kg.)*: | 1500 / 2000 | 2700 / 3000 | 3000 / 3800 | 5000 / 5900 | 7000 / 8000 | 6000 / 7000 | 13000 * |
| Overall Dimensions (m): | 1.8 x 1.3 x 1.8 | 2.8 x 1.5 x 2.2 | 3.0 x 1.75 x 2.3 | 3.0 x 1.8 x 2.5 | 3.0 x 1.9 x 2.7 | 3.5 x 1.9 x 2.6 | 5.0 x 2.0 x 3.0 |
| Shipping Volume (m3 ): | 4.5 | 9.5 | 12.5 | 13.5 | 15.5 | 17.5 | 30.0 |
*Note: EMM - 2.5 is shipped in a open top container in unpacked condition.
Standard Accessories:
- Suitable Electric Motor
- Starter
- ‘V’ Belts
- One die set suitable for any one mesh size and sheet thickness
Optional Accessories:
- Decoiler
- Coiler
- Flattening Machine
- Straightening Machine
- Brushing Unit
- Die sets for different sizes of mesh
