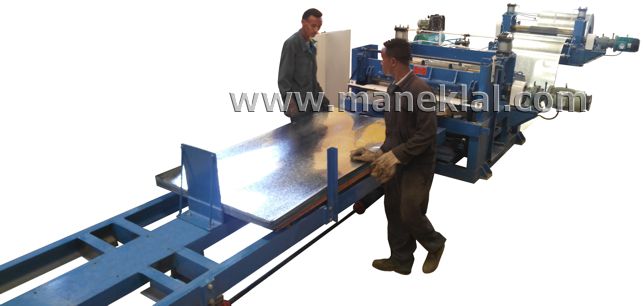

Cut to Length Line
Automatic Cut to Length Line consisting of:

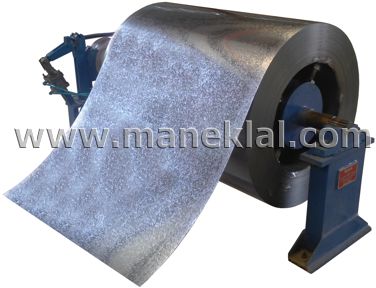

- De-Coiler Shaft
- Pinch Roll Assembly
- Looping Device
- Feed Roll Assembly
- Mechanical Down Cut Shear
- Piling Table
- Electric Control Panel
- Air Compressor
NOTE: We can also offer Cut to Length Lines with:
- Hydraulic De-Coiler
- Coil Car & Lifter with Coil Saddle
- Belt / Roller Conveyor
- Lifter Table
- 4
- Wheeled Trolley Table
- Air Actuated Auto Stacker
|
|

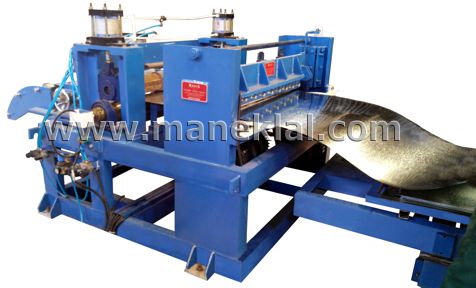

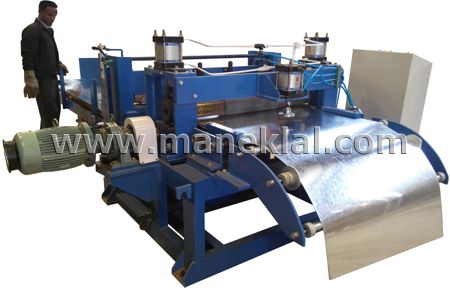

| Looping Device, Feed Roll Assembly and Mechanical Down Cut Shear | De-Coiler Shaft |
|---|---|
|
|

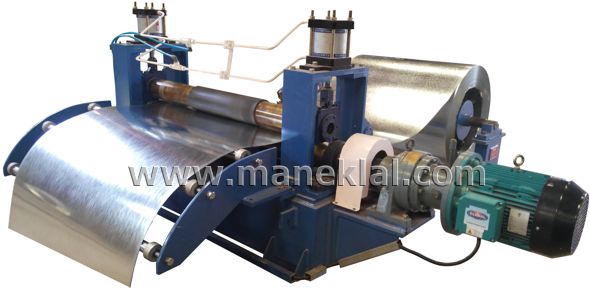

| Looping Device, Feed Roll Assembly and Mechanical Down Cut Shear | De-Coiler Shaft, Pinch Roll Assembly and Looping Device |
Specification Range:
- Weight of Coil: 200 to 25,000 kg.
- Coil Width: 100 to 2000 mm
- Material Thickness: 0.1 to 20.0 mm
- Length of Cut: min.: 300 mm, max.: 4000 mm
- Line Speed (Variable): 10 to 95 m/min
Coil Material Processed on our Lines:
- Hot Rolled Mild Steel Coils
- Cold Rolled Mild Steel Coils
- Stainless Steel Coils
- Brass Coils
- Copper Coils
- Aluminium Coils
- C. R. G. O. / C. R. N. G. O. Coils
VIDEO 1 OF CUT TO LENGTH LINE
VIDEO 2 OF CUT TO LENGTH LINE
VIDEO 3 OF CUT TO LENGTH LINE

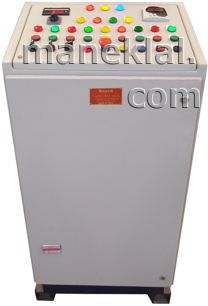

Electric Control Panel
