Paper Cone & Tube Making Machines

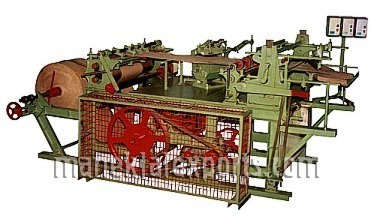

Pattern Cutting Machine (Reel type):

A heavy-duty clutch type machine, fitted with a pair of 10” length male & female embossing rollers, paper roll shaft, paper roll shaft adjustments, draw roller assembly carriage set with pattern cutting knife suitable for 9.15. A blower collects the grinding dust. Supplied with 2 HP motor for main drive and 1 HP motor for grinder drive with suitable starters.
Production: 23 Patterns / Minute

Paper Edge-Grinding Machine:

For continuous edge grinding with conveyor system. Dust collected by a blower. Supplied with 1.5 HP motor with speed reducer gearbox and suitable starter.

Semi Automatic Paper Cone Winding Machine:

A heavy-duty clutch type machine, which does all types of cone winding. It has a glue tank with glue applying rollers for the patterns. All type of cones can be manufactured on this machine simply by changing the cone making spindle & press bar. Pattern feeding has to be done manually to the spindle and ejection is by a pneumatic system. Machine supplied with one type of spindle. Other types of spindles can be supplied at extra cost. Supplied with 1.5 HP motor for main drive fitted with suitable starter

Production: 20 - 23 Cones / Minute

Paper Cone Cutting Machine:

For cutting the cone at top and bottom. Manual feeding to the spindle and automatic ejection by stripper mechanism. Supplied with 1 HP motor for main drive and suitable starter
Production: 20 - 23 Cones / minute

Paper Cone Nosing Machine:

For cone nosing and bottom cutting. Feeding to the spindle is manual and ejection is automatic by stripper mechanism. It is is fitted with 9.15 spindle. Other types of cone finishing spindles can be supplied at an extra cost. Supplied with 1.5 HP motor for spindle drive and 1 HP motor for main drive with suitable starter
Production: 20-23 cones / Minute

Printing Machine:

For printing at the top and bottom side of the cone. Cone loading to the spindle is manual and ejection is by stripper mechanism. Suitable for Water Colour Ink only. Supplied with one printing design, 0.5 HP motor and suitable starter. Other types of designs can be supplied at an extra cost.
Production: 23 cones / minute
Dimensions: 1.55 x 0.85 x 1.25 m

Turret Type Paper Cone Velveting Machine:

For cone velveting of all types of cones and bottom side grooving. Ejection of cone by stripper mechanism. The spindle can be changed quickly and the velvet roller adjusted to any angle. Supplied with 5o 57’ spindle, 1.5 HP motor for main drive, 1 HP motor for velveting drive and suitable starters. Other types of spindle can be supplied at an extra cost.
Production: 17 - 20 cones / minute
Dimensions: 2.05 x 1.55 x 1.80 m

Apart from the above machines, the following items are also required:

• Compressor with 2 HP motor and starter - for Paper Cone Winding Machine - Cone Ejection
• 5° 57’ attachment with carriage angle assembled with suitable 5° 57’ knife, change gear wheel, O.D. 5” x Bore 3” x Length 36” plain roller
• 2 Nos., winding spindle, nosing spindle, nosing cup and stripper plate
• Paper Cone Punching Machine – Manually Operated:
• Punching moon shape at the bottom of cone
• Winding Spindles
• Nosing Spindles
• Velveting Spindles

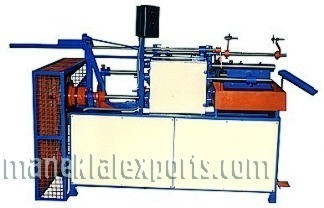

Semi-Automatic Paper Tube Making Machines - Capacity ID: 10 to 50 mm

Paper Edge-Grinding Machine:

For continuous edge grinding with conveyor system. Dust collected by a blower. Supplied with 1.5 HP motor with speed reducer gearbox and suitable starter.
Dimensions: 1.3 x 1.0 x 1.5 m

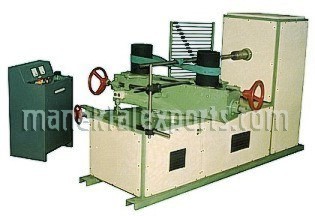

Spiral Tube winding machine:

Used for 16+1 winding and to produce tubes of I.D. 50 to 125mm. Size of the tube can be changed quickly. Supplied with 7.5 HP variable speed DC motor, reducer gearbox, panel board, reel stand, water pump (0.5 HP) heater, blower and one mandrel of required size. Other size mandrels available at extra cost.
Production speed: can be varied from 5 to 15 feet per minute.

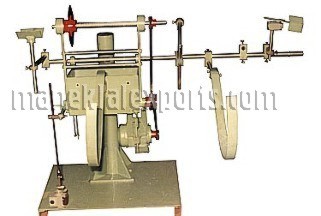

Auto Paper Rough Cutter Machine:

Used for cutting rough size of any length. Supplied with a circular saw blade, 2 HP motor, solenoid valve & dust collecting blower with starter.

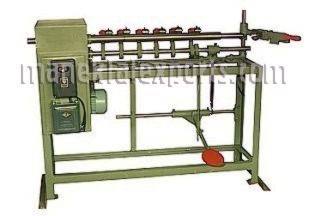

Paper Tube Trim Cutting Machine:

This machine has 6 circular knives and is supplied with 1 HP motor & starter. By adjusting this machine, any length of tube can cut (mandrel size maximum length 40")

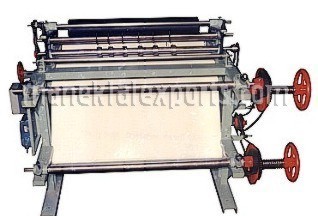

Paper Slitting Machine:

This machine has a high speed 36" reel paper slitting and rewinding system of any width and rotary knife holder with knives of 12 set (top & bottom). Supplied with a 3 HP motor & starter.
