Wax Candle Making Machines
CANDLE MAKING MACHINE - MODEL: WCM-SA
Hand Operated Semiautomatic Machine
- Simple operation (Pour melted wax, after cooling operate handle, cut threads and the candles are ready)
- Brass Pipe moulds provided for smooth seamless candles
- System provided for quick cooling with water circulation
- Candle Length adjustable
- Available for making Plain, Plain - Birthday type, Tapered, Spiral and Grooved / Fluted Candles
Specifications:
| Model: | WCM-SA/C6 | WCM-SA/C8 | WCM-SA/C10 | WCM-SA/C11 | WCM-SA/C13 | WCM-SA/C14 | WCM-SA/C16 | WCM-SA/C17 | WCM-SA/C19 | WCM-SA/C20 |
|---|---|---|---|---|---|---|---|---|---|---|
| Candle Diameter (mm): | 6.5 | 8 | 10 | 11.5 | 13 | 14.6 | 16 | 17.5 | 19 | 20 |
| Max. Candle Length (adjustable) (mm): | 125 | 200 | 225 | 225 | 250 | 250 | 250 | 250 | 250 | 250 |
|
Number of candles per operation:
|
200 / 300 / 400 | 200 / 240 / 300 | 200 / 240 / 300 | 200 / 240 / 300 | 200 / 240 | 200 / 240 | 200 / 240 | 200 / 240 | 200 / 240 | 200 / 240 |
| Type of Candle: | Birthday Candle | Plain / Cylindrical | Plain / Cylindrical | Plain / Cylindrical | Plain / Cylindrical | Plain / Cylindrical | Plain / Cylindrical | Plain / Cylindrical | Plain / Cylindrical | Plain / Cylindrical |
| Model: | WCM-SA/C21 | WCM-SA/C22 | WCM-SA/C24 | WCM-SA/C25 | WCM-SA/C30 | WCM-SA/C36 | WCM-SA/T20 | WCM-SA/S21 | WCM-SA/F21 |
|---|---|---|---|---|---|---|---|---|---|
| Candle Diameter (mm): | 21 | 22.5 | 24 | 25.5 | 30 | 36.5 | Base: 20 Tope: 18 | Base: 21.5 Tope: 9 | Base: 21.5 Tope: 18 |
| Max. Candle Length (adjustable) (mm): | 275 | 275 | 300 | 300 | 410 | 410 | 200 | 260 | 240 |
| Number of candles per operation: | 120 / 200 | 120 | 120 | 120 | 60 | 40 | 120 | 60 / 120 | 120 |
| Type of Candle: | Plain / Cylindrical | Plain / Cylindrical | Plain / Cylindrical | Plain / Cylindrical | Plain / Cylindrical | Plain / Cylindrical | Taper | Spiral, Taper | Grooved / Fluted |
Technical Details
| Model: | WCM-SA |
|---|---|
| Approximate Time Taken per Operation / Cycle: | 10 a 12 minutes |
| Approximate Dimensions: | 1.7 x 0.8 x 1.5 m |
| Net / Gross Weight: | 350 / 450 kg. |
| Approximate Shipping Volume: | 2.1 m3 |
Standard Accessories:
- Plastic Bobbins
- Knife
- Steel Wire for Threading
Optional Accessories:
- Candle Wick
- Hand Operated Bobbin Winding attachment
- Spare Wooden Bobbins
- Spare Brass Nozzle with Steel Piston
Note: Specifications mentioned for standard machines. We also supply Machines for making Candles of Dimensions as per customer’s requirement and Specifications
VIDEO OF PLAIN CANDLE MAKING MACHINE

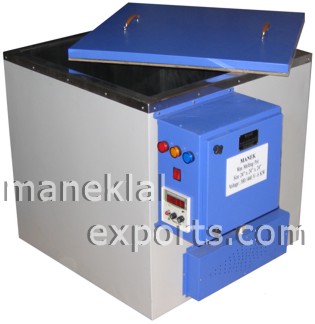

Wax Melting Oven - Electrically Heated
Construction Features of the Oven:
- Mild Steel Angle Frame & Mild Steel Sheet Welded
- Insulation of glass wool between the two walls to prevent heat loss
- Heating element provided at the bottom of the chamber
- Inner chamber made of Stainless Steel SS-304
- Top side lid provided
Specifications:
| Model | WMO-50 | WMO-100 | WMO-150 | WMO-200 |
|---|---|---|---|---|
| Capacity | 50 liters | 100 liters | 150 liters | 200 liters |
| Size of Chamber | 380 x 380 x 380 mm | 500 x 500 x 500 mm | 600 x 600 x 530 mm | 700 x 700 x 530 mm |
| Power Rating | 3.5 kW | 6 kW | 7.5 kW | 12 kW |
| Tapping | Manually from the bottom | |||
| Temp. Controller | Digital | |||
| Max. Operating Temp. | 100° Centigrade | |||
| Dimensions | 460 x 460 x 560 mm | 590 x 590 x 690 mm | 690 x 690 x 720 mm | 790 x 790 x 720 mm |
| Net / Gross Weight | 55 / 85 kg | 85 / 140 kg | 130 / 190 kg | 160 / 250 kg |
| Shipping Volume | 0.2 m³ | 0.3 m³ | 0.4 m³ | 0.5 m³ |
