Round
Can Making Machines
|
|
Treadle Shearing Machine:
|
Model:
|
TSM - 1
|
|
Capacity - width (mm):
|
1000
|
|
Capacity - thickness (mm):
|
0.3
|
|
Net / Gross Weight (Kgs.):
|
250 / 325
|
|
Shipping Volume (m3
):
|
1.00
|
|
Gang Slitting Machine:
|
Model:
|
GSM - 1
|
|
Capacity - width (mm):
|
1050
|
|
Capacity - thickness (mm):
|
0.3
|
|
Motor (HP):
|
1.0
|
|
Number of Cutter sets:
|
6
|
|
Net / Gross Weight (Kgs.):
|
400 / 500
|
|
Shipping Volume (m3
):
|
2.25
|
|
|
|
|
Power Press:
|
Model:
|
PPM - 35
|
|
Type:
|
Un-Geared
|
|
Bed Size (mm):
|
635 x 420
|
|
Max. distance between bed & ram (mm):
|
345
|
|
Number of strokes per minute:
|
110
|
|
Motor (HP):
|
5
|
|
Net / Gross Weight (Kgs.):
|
2000 / 2500
|
|
Shipping Volume (m3
):
|
4.0
|
|
Body Rolling Machine:
|
Model:
|
BRM - 1
|
|
Capacity - width (mm):
|
250
|
|
Capacity - thickness (mm):
|
0.3
|
|
Motor (HP):
|
0.5
|
|
Net / Gross Weight (Kgs.):
|
80 / 100
|
|
Shipping Volume (m3
):
|
0.70
|
|
|
|
|
Bump Flanger:
|
Model:
|
BFM - 1
|
|
Capacity - min. / max. diameter (mm):
|
50 / 200
|
|
Capacity - thickness (mm):
|
0.3
|
|
Motor (HP):
|
1.0
|
|
Net / Gross Weight (Kgs.):
|
220 / 300
|
|
Shipping Volume (m3
):
|
1.00
|
|
Can Seaming Machines:
|
Model:
|
GS - 250
|
|
Min. / Max. diameter (mm):
|
40 / 250
|
|
Max. height (mm):
|
356
|
|
Motor (HP):
|
1.5
|
|
Production (per 8 hours):
|
15000 seams
|
|
Net / Gross Weight (Kgs):
|
650 / 850
|
|
Overall dimensions (m):
|
0.75 x 1.10 x 2.00
|
|
Shipping Volume (m3
):
|
1.65
|
|
|

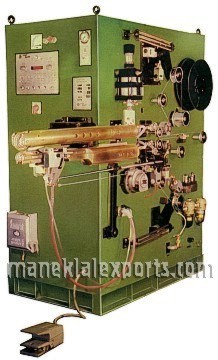

Note: Side Seam Welding Machine, Lug Welding
Machine, Air Compressor, Die Sets for Top and Bottom, Conveyer System, etc. are required
for which prices can be given against specific inquiry.
-
Uniform Narrow and Consistent Weld at high operating speed
achieved
-
Low production cost
-
Notching of roll-formed blanks not necessary
Facilities Required at Customer's End:
|
Main Supply Cable:
|
8 mm2
Copper / 12 mm2
Aluminium
|
|
Main Switch Fuses:
|
32 Amps HRC
|
|
Compressed Air:
|
5 kgf / cm2
|
|
Tinplate Thickness:
|
0.2 mm / 0.4 mm
|
|
Temper:
|
T3 / T4
|
|
Copper Wire:
|
Electrolytic equivalent bright shot annealed having 1.4 mm
dia. (oxygen free quality)
|
|
Water Cooling system:
|
In Built Cooling Unit OR 20
lpm at 3 kgf / cm2
at
18o
C free from impurities
|
|
Model:
|
15-T
|
|
Welding KVA:
|
15 KVA at 50% Duty Cycle
|
|
Arm length (mm)*:
|
200 / 325 / 450
|
|
Max. body diameter (mm):
|
85 / 100 / 300
|
|
Min. diameter (mm):
|
52 / 65 / 100
|
|
Max. sheet thickness (mm):
|
0.4
|
|
Standard overlap (mm):
|
4.5
|
|
Max. welding speed (m/min):
|
10 to 15
|
|
Net / Gross weight (kg.):
|
1500 / 2000
|
|
Overall Dimensions (m):
|
2.0 x 2.0 x 2.0
|
|
Shipping Volume (m3
):
|
8.0
|
*Note:
Machine supplied with any one of the three arm length
Optional Accessory: Water Cooler, 10 HP Two
Stage 120 PSI Air Compressor
