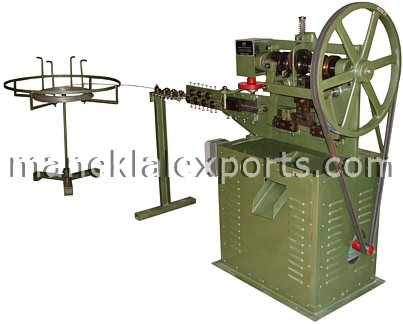

'C' Ring Staples / C-Clips / Hog Ring Clips / Gabion Rings Making Machine
|
|

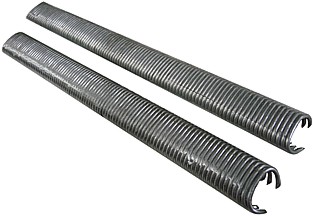

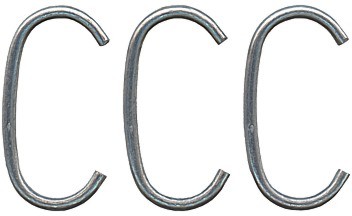

| 'C' Rings / Clips used for fixing Gabion Structures | Collated/Taped 'C' Rings / Clips for Pneumatic Clip Guns |
|---|---|
|
|
| Model: CRM-80 | Model: CRM-80/T |
Specifications:
| Model: | CRM-80 | CRM-80/T | CRM-60/HD |
|---|---|---|---|
| Type: | Loose 'C' Rings | Collated 'C' Rings | Loose 'C' Rings |
| Taping Attachment: | NO | YES | NO |
| Wire Diameter: | 3 mm | 3 mm | 5 mm |
| Production Capacity: | 80 ‘C’ Clips per Minute | 80 ‘C’ Clips per Minute | 60 ‘C’ Clips per Minute |
| Motor: | 2 HP | 3 HP | 3 HP |
| Variable Speed: | NO | YES | NO |
| Net / Gross Weight (Kg.): | 300 / 425 | 350 / 500 | 350 / 475 |
| Approx. Dimensions (m): | 1.4 x 1.2 x 1.6 | 1.6 x 1.2 x 1.7 | 1.6 x 1.2 x 1.7 |
| Shipping Volume (m3 ): | 2.70 | 3.30 | 3.30 |
Standard Accessories:
- Electric Motor
- Starter
- Coil Stand
- One Set of Toolings (for any one size of 'C' Ring)
Extra Accessories:
- Additional Set of Toolings (for other sizes of 'C' Rings)
Applications of 'C' Ring Staples:
- Car Seat Assembling
- Manufacturing of Spring Mattresses
- Fencing
- Golf Nets
- Engineering Works
- Wiring
- Insulation
- Camouflaged Nets
- Gardening
