Bolt Making Machines
| Automatic Cold Heading Machine - Double Stroke - Solid Die | Automatic Bolt Head Trimming Machine - Hexagonal Head | Automatic Cold Thread Rolling Machine |

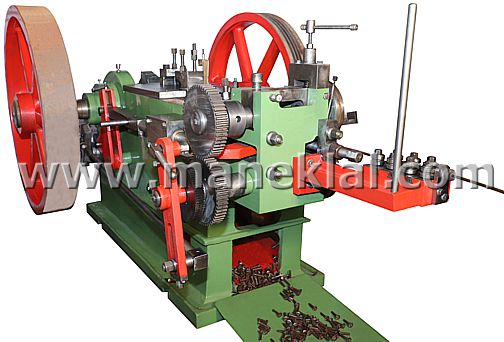

Automatic Cold Heading Machine - Double Stroke - Solid Die

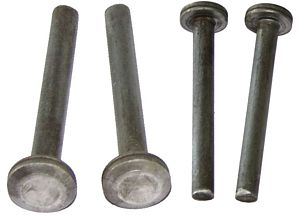

Model: BHM-4
Specifications:
| Model: | BHM-2 | BHM-3 | BHM-4 | BHM-5 | BHM-6 |
|---|---|---|---|---|---|
| Length of Blank: | 1/2" - 2" | 3/4" - 3" | 1" - 4" | 1 1/2" - 5" | 2" - 6" |
| Wire Diameter / Bolt Diameter: | 3/16" - 1/4" | 1/4" - 3/8" | 5/16" - 1/2" | 3/8" - 5/8" | 1/2" - 3/4" |
| Production (pieces per minute): | 60 - 80 | 50 - 60 | 40 - 45 | 30 - 35 | 25 - 30 |
| Motor: | 5 HP / 960 RPM | 7.5 HP / 960 RPM | 15 HP / 960 RPM | 25 HP / 960 RPM | 40 HP / 750 RPM |
VIDEO OF AUTOMATIC COLD HEADING MACHINE - DOUBLE STROKE - SOLID DIE MODEL: BHM-4
Standard Accessories: Electric Motor, Starter, One Set of Toolings of any one size of Bolt

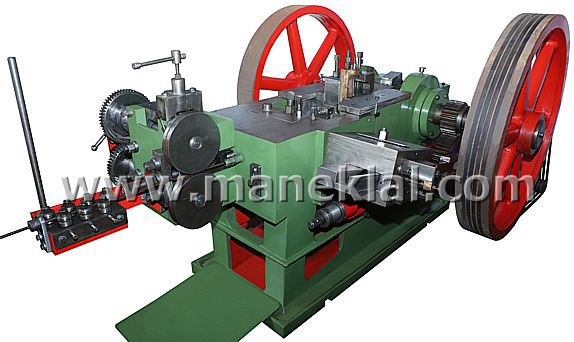

Model: BHM-4

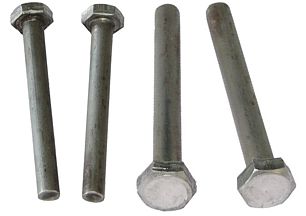

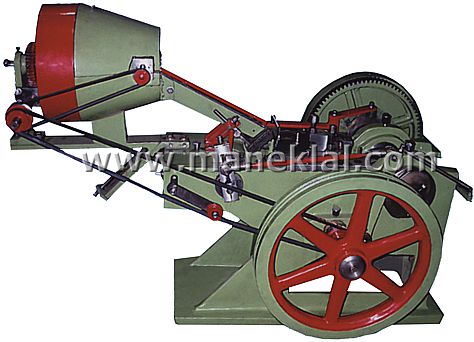

Model: BHT-3
| Model: | BHT-2 | BHT-3 | BHT-4 | BHT-5 | BHT-6 |
|---|---|---|---|---|---|
| Length of Blank: | 1/2" - 2" | 3/4" - 3" | 1" - 4" | 1 1/2" - 5" | 2" - 6" |
| Wire Diameter / Bolt Diameter: | 3/16" - 1/4" | 1/4" - 3/8" | 5/16" - 1/2" | 3/8" - 5/8" | 1/2" - 3/4" |
| Production (pieces per minute): | 60 - 80 | 50 - 60 | 40 - 45 | 30 - 35 | 25 - 30 |
| Motor: | 3 HP / 1440 RPM | 5 HP / 1440 RPM | 7.5 HP / 1440 RPM | 15 HP / 1440 RPM | 20 HP / 1440 RPM |
VIDEO OF AUTOMATIC BOLT HEAD TRIMMING MACHINE MODEL: BHT-3
Standard Accessories: Electric Motor, Starter, One Set of Toolings of Trimming Head of any one size of Bolt

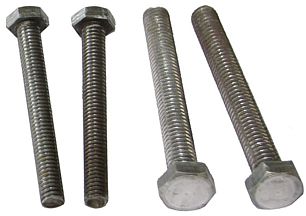

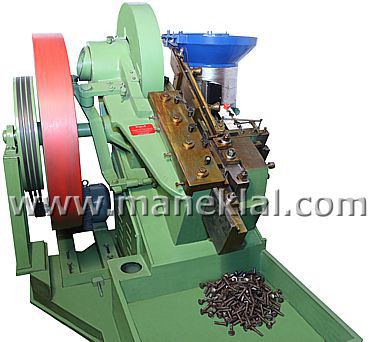

Model: BTR-4
| Model: | BTR-2 | BTR-3 | BTR-4 | BTR-5 | BTR-6 |
|---|---|---|---|---|---|
| Length of Blank: | 1/2" - 2" | 3/4" - 3" | 1" - 4" | 1 1/2" - 5" | 2" - 6" |
| Wire Diameter / Bolt Diameter: | 3/16" - 1/4" | 1/4" - 3/8" | 5/16" - 1/2" | 3/8" - 5/8" | 1/2" - 3/4" |
| Production (pieces per minute): | 60 - 80 | 50 - 60 | 40 - 45 | 30 - 35 | 25 - 30 |
| Motor: | 3 HP / 1440 RPM | 5 HP / 1440 RPM | 7.5 HP / 1440 RPM | 15 HP / 1440 RPM | 20 HP / 1440 RPM |
VIDEO OF AUTOMATIC COLD THREAD ROLLING MACHINE MODEL: BTR-4
Standard Accessories: Electric Motor, Starter, One Set of Threading Die of any one Pitch and Size of Bolt

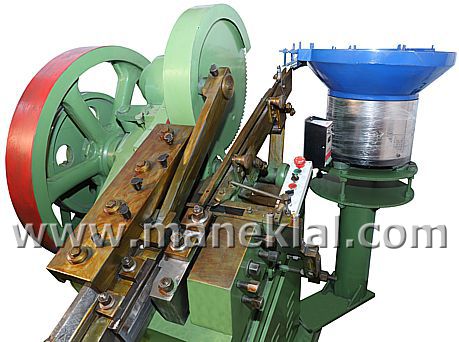

Model: BTR-4
Vibrator for Feeding
