Universal Ironworker / Hydraulic Steel Worker
|
|
| Model: UIW-60 | Model: UIW-80 |
|---|
Specifications:
| Model | UIW-60 | UIW-80 |
|---|---|---|
| Rated Punching Capacity (Tons) | 60 | 80 |
| Throat depth (mm) | 180 | 260 |
| Maximum Punching Capacity* | Diameter: 25 mm; Plate: 12.7 mm | Diameter: 27 mm; Plate: 18 mm |
| Open height (mm) | 205 | 225 |
| Shut height (mm) | 170 | 180 |
| Stroke (mm) | 30 | 45 |
| Bar Shear Rounds / Squares (mm) | 25 | 25 |
| Flat thickness max. (mm) | 20 x 100 | 20 x 240 |
| Flat width max. (mm) | 12 x 240 | 12 x 340 |
| Angle Shear Maximum size (mm) | 100 x 100 x 6 | 127 x 127 x 9 |
| Chopper Notcher Option (mm) | 50 x 75 x 8 | 65 x 100 x 13 |
| Brake Option | Thickness: 6 mm; Width: 180 mm | Thickness: 6 mm; Width: 280 mm |
| Channel Shear max. size | 100 x 50 mm (standard channel) | 100 x 50 mm (standard channel) |
| Hydraulic Tank Capacity | 35 Litres | 200 Litres |
| Motor | 5 HP | 7.5 HP |
| Approximate Net Weight (kilos) | 1200 | 1450 |
| Approximate Dimensions (mm) | 810 x 925 x 1650 | 1235 x 1270 x 1670 |
| Approximate Shipping Volume (m³) | 1.50 | 3.00 |
* - Oversized punching diameter can be provided for reduced plate thickness
Standard Accessories:
- Hydraulic system (without hydraulic oil)
- Angle cutting die
- Punching die
- Flat shearing die

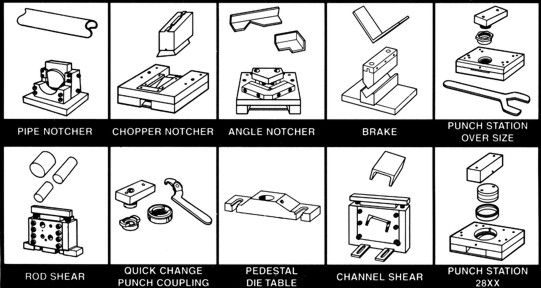

Optional Accessories:
- Rod shearing die
- Angle / triangle notcher
- Chopper notcher
- Channel shear
- Pipe notcher
- Brake attachment
- Extra die and punch
