Threading Machines
|
|

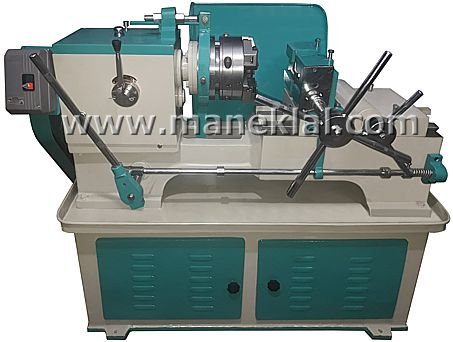

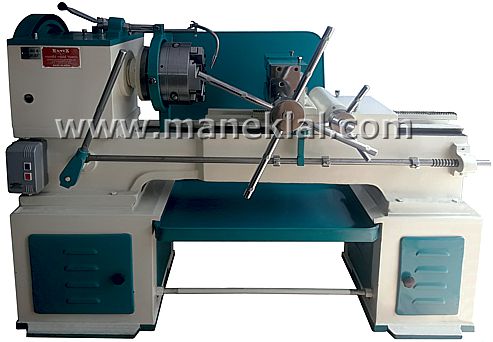

| Model: MDHT-60 | Model: MDHT-40 |
|---|
Specifications:
| Model: | MDHT-40 | MDHT-60 |
|---|---|---|
| Machine Bed Size: | 4' feet x 12" inches | 6' feet x 14" inches |
| Threading Capacity: | 38 mm (1.5") diameter in length up to 350 mm (14") 50 mm (2") diameter in length up to 38 mm (1.5") | 60 mm (2.5") diameter in length up to 450 mm (18") 75 mm (3") diameter in length up to 38 mm (1.5") |
| Minimum Threading Diameter: | 10 mm | 10 mm |
| Speed: | 60 & 90 RPM | 60 & 90 RPM |
| Motor: | 3 HP | 5 HP |
| Net / Gross Weight: | 650 / 900 kg | 1000 / 1300 kg |
| Approximate Dimensions: | 2.1 x 1.1 x 1.4 m | 2.2 x 1.2 x 1.5 m |
| Approximate Shipping Volume: | 3.5 m3 | 4.0 m3 |

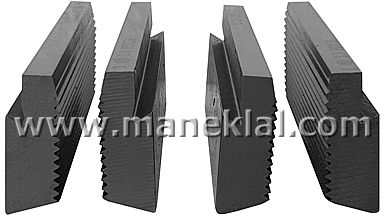

Tangential Threading Dies
Standard Accessories:
Electric Motor, Starter, V Belts, Coolant Pump
Extra Accessories:
Tangential Threading Dies
VIDEO OF OUR DIE HEAD THREADING MACHINES - 'MDHT' SERIES
VIDEO OF OUR DIE HEAD THREADING MACHINES - 'MDHT' SERIES - For Threading TMT / Construction Bars
