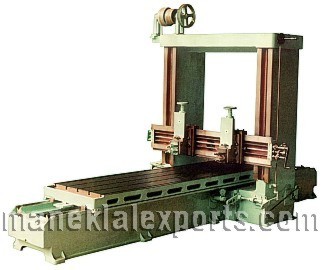

Double Column construction with a built-in gearbox
Automatic lubrication to 'V' guides
All main shafts are made of EN-9 steel
Provided with automatic lifting arrangement for quick and easy movement of cross slideThe carriage is heavy duty and long, to give balanced bearing to the bed even at the end of the stroke
BED: The bed is of heavy duty box type construction. It is ribbed through out the length and breadth giving vibration free movement under the heaviest cut. The bed has deep 'V' type grooves to receive the table and has oil collecting troughs at the end
TABLE: It is heavily ribbed and proportionally dimensioned heavy duty close grained cast iron box type construction. It has 'V' slides matching the 'V' grooves on the bed and is hand scrapped to give oil film lubrication
CROSS SLIDE: A box type construction carrying the tool slide which can be operated by hand as well as by automatic feed
GEARBOX: Machine cut gears running in anti friction bearings. Oil immersed.
TOOL POST: Rigid cast iron close grained construction. Tool holders machined out of steel blocks.
UPRIGHTS: Heavy duty cast iron construction bolted to the sides of the bed. Ribbed inside to avoid vibration. Dowelled to keep correct alignment.
Specifications
Model
PR-10
PR-12
PR-14
PR-16
PR-18
PR-20
PR-25
Planer Size:
10'
12'
14'
16'
18'
20'
25'
Length of Bed (mm):
4572
5486
6400
7915
7229
9144
11277
Length of Table (mm):
3352
3885
4572
5180
5790
6400
7924
Max. travel of Table (mm):
3048
3657
4267
4876
5486
6096
7620
Max. Planning width (mm):
1524
1524
1524
1524
1680
1828
1828
Max. height under Cross Rail
(mm):
1220
1524
1524
1524
1524
1524
1524
Tool Post down feed (mm):
254
254
254
254
300
300
300
Cutting Speed per minute:
480
480
480
425
425
384
384
Return Speed per minute:
640
640
640
637
637
412
412
No. of tool post on cross slide:
2
2
2
2
2
2
2
Motor (HP):
7.5
7.5
10.0
10.0
10.0
15.0
15.0
Standard Accessories:
Motor, starter, automatic lubrication, automatic lifting arrangement
