'SM' Series Gap Frame Precision Power Presses

Features:

Pneumatic Friction Clutch and Brake dissipate heat and reduce wear
Available in Geared and Un Geared Models
Adjustable Stroke

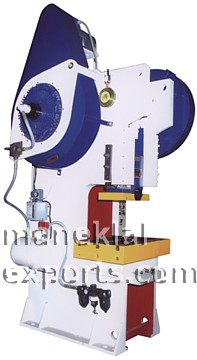

Model: SM-80

Specifications (in mm):

Model:	SM-16	SM-25	SM-32	SM-40	SM-50	SM-63	SM-80	SM-100	SM-160	SM-250
Press Capacity (Tons)	16	25	32	40	50	63	80	100	160	250
SLIDE
Stroke Fixed:	63	80	80	88	88	100	125	125	160	200
Adjustable (Optional):	8 - 63	8 - 80	8 - 80	8 - 88	8 - 88	8 - 100	8 - 125	8 - 125	12 - 160	20 - 160
Adjustment of Slide:	50	50	50	63	63	63	80	80	100	125
Area LR x FB:	315 x 200	355 x 220	355 x 220	400 x 250	400 x 250	450 x 280	500 x 315	500 x 315	800 x 600	900 x 650
Shank Hole:	40 x 75	40 x 75	40 x 75	50 x 85	50 x 85	50 x 85	63 X 85	63 X 85	--	--
SPEED
Non Geared:	125	112	112	100	100	90	80	80	--	--
Geared:	63	56	56	50	50	45	40	40	35	30
DIE SPACE
Shut Height Standard:	224	250	250	280	280	315	380	380	560	600
Shut Height Optional:	315	355	355	355	355	400	560	560	To Suit	To Suit
Depth of Throat Standard:	180	200	200	225	225	250	280	280	315	400
Depth of Throat Optional:	235	260	260	290	290	325	410	410	To Suit	To Suit
Width of Opening in Back:	280	315	315	355	355	400	450	450	650	700
BOLSTER PLATE
Area LR x FB Standard	560 x 355	630 x 400	630 x 400	710 x 450	710 x 450	800 x 500	900 x 560	900 x 560	1100 x 630	1250 x 800
Area LR x FB Optional	710 x 450	800 x 500	800 X 500	900 X 560	900 X 560	1000 X 630	1250 X 800	1250 X 800	To Suit	To Suit
Thickness:	70	75	75	80	80	85	100	100	110	125
Opening with Ring:	70	70	70	90	90	90	90	90	90	175
Opening without Ring:	180	200	200	225	225	280	315	315	325	350
BED
Opening LR x FB	224 x 180	250 x 200	250 x 200	280 x 225	280 x 225	315 x 250	355 x 280	355 x 280	450 x 355	560 x 450
Diameter:	224	250	250	280	280	315	355	355	450	560
MOTOR
Non Geared (kW):	1.50	2.20	2.20	3.70	3.70	5.50	7.50	7.50	--	--
Geared (kW):	1.50	2.20	2.20	3.70	3.70	5.50	7.50	7.50	11.00	15.00
GENERAL
Floor to Top of Bed:	800	800	800	800	800	800	900	900	900	900
Overall Height:	2450	2700	2700	2850	2850	3250	3550	3550	3900	--
Weight Non-Geared:	1350	2200	2400	3800	4200	5150	--	--	--	--
Weight Geared:	1650	2450	2650	4100	4500	5650	8250	8750	14500	20000
Inclination (Optional)	30	30	30	30	30	21	21	21	--	--
DIE CUSHION
Type:	--	DDC-72	DDC-72	DDC-82	DDC-82	DDC-102	DDC-123	DDC-123	DDC-144	DDC-164
Capacity (kg.):	--	3400	3400	4400	4400	6990	10000	10000	20000	25000
Stroke:	--	50	50	50	50	50	75	75	100	100
Pad Area LR x FB:	--	225 x --	225 x --	250 x --	250 x --	280 x --	410 x 300	410 x 300	535 x 425	600 x 475
Required Air Pressure:	--	7	7	7	7	7	7	7	7	7

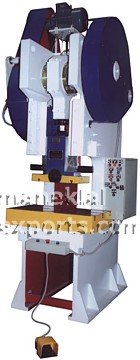

Model: SM-160

Standard Accessories:

Electricals
Control panel
Production counter
Bolster plate
Shot lubrication device
Electro-pneumatic safety control

Optional Accessories:

Pneumatic die cushion
Inclinable mechanism
Variable stroke
Motorized automatic lubrication (in lieu of shot lubrication device)
Photoelectric safety guard

VIDEO OF ECCENTRIC POWER PRESS WITH PNEUMATIC CLUTCH MODEL: SM-80

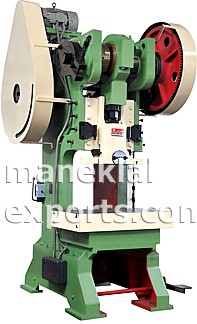

'PP' Series Steel Body Gap Frame Geared Power Presses

Frame made of fabricated steel construction
Revolving key clutch
Spring operated powerful heavy duty release type brake
Crankshaft made of EN-8 steel
Presses above 10 tons capacity fitted with knock-out brackets for stopping down the drawn parts
Ram made from high tensile cast iron / cast steel
Presses provided with adjustable stroke
Flywheel made of high grade cast iron
Available in both fixed body and inclinable type
20, 30, 40, and 50 tons presses are double geared; rest are single geared

Specifications (in mm):

Model:	PP-5	PP-10	PP-20	PP-30	PP-40	PP-50	PP-60	PP-75	PP-100	PP-150	PP-200	PP-250
Capacity (Tons):	5	10	20	30	40	50	60	75	100	150	200	250
Crankshaft Diameter:	51	63	76	83	95	101	108	121	134	145	160	170
Stroke Adjustment:	6 - 38	6 - 50	13 - 76	13 - 89	13 - 95	13 - 102	13 - 102	13 - 115	13 - 127	13 - 152	13 - 165	13 - 165
Max. distance - Bolster to Ram:	152	215	255	300	375	400	440	480	505	610	710	750
Slide Adjustment:	25	25	38	38	38	45	45	45	51	51	51	63
Slide Face (FB x LR):	75 x 85	101 x 260	125 x 300	145 x 335	170 x 365	210 x 380	210 x 380	240 x 430	285 x 550	315 x 600	340 x 625	360 x 700
Punch Hole (Dia. x Deep):	25 x 38	25 x 45	32 x 50	38 x 65	45 x 76	51 x 85	51 x 85	55 x 95	63 x 102	63 x 110	63 x 110	63 x 110
Throat Distance:	102	127	152	178	203	260	280	292	318	369	420	450
Size of Table (FB x LR):	203 x 355	254 x 430	305 x 508	355 x 558	405 x 660	520 x 750	560 x 787	585 x 863	635 x 1016	737 x 1016	840 x 1118	900 x 1150
Opening in Table (dia.):	63	76	102	127	190	203	210	222	228	242	260	275
Bolster Thickness	45	60	70	70	76	76	82	89	102	102	115	127
Height of table surface from floor:	660	720	750	750	800	800	800	875	863	863	850	850
Flywheel diameter:	355	405	508	558	660	762	838	914	991	1118	1270	1320
Strokes per minute:	80	70	45	40	35	35	45	45	45	35	32	30
Motor (HP):	1	1	2	3	5	5	7.5	10	10	15	20	25
Approximate net / gross weight (Kgs.):	305 / 370	550 / 660	1010 / 1225	1425 / 1750	2050 / 2500	2650 / 3200	3000 / 3600	4500 / 5400	5500 / 6600	7500 / 9000	9000 / 10500	11000 / 13000
Machine Dimensions (m):	1.00 x 0.84 x 1.90	1.1 x 0.92 x 2.25	1.20 x 1.00 x 2.30	1.25 x 1.05 x 2.35	1.35 x 1.03 x 2.55	1.45 x 1.15 x 2.73	1.55 x 1.23 x 2.85	1.73 x 1.40 x 3.25	1.91 x 1.55 x 3.53	2.11 x 1.76 x 3.79	2.39 x 2.02 x 4.13	2.50 x 2.20 x 4.50
Shipping Volume (m³ ):	1.6	2.3	2.8	3.1	4.4	5.5	6.5	9.2	12.0	16.0	24.0	26.0
