Hand Lever Shearing Machines
| Light Duty Machine | Light Duty Geared Machine | Geared Machine with Angle & Tee Cutting Attachments | Heavy Duty Geared Machine | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Rod Cutting Machine | Punching Machine | Combined Punching & Shearing Machines | |||||||||
Light Duty Lever Shearing Machine
Model: 3/3L
| Model: | 3/3R | 3/4R | 3/5R | 3/3L |
|---|---|---|---|---|
| Cutting Capacity up to, in M.S. (mm) | ||||
| Plate: | 2 | 2 | 3 | 3 |
| Flat (L x W): | 40 x 3 | 45 x 3 | 50 x 4 | 50 x 3 |
| Round (Diameter): | 8 | 8 | 10 | 10 |
| Approx. Length of Blade (mm): | 110 | 150 | 200 | 300 |
Standard Accessories:
Cutting Blade, Handle
Extra Spares:
Extra Cutting Blades
Light Duty Geared Lever Shearing Machine
|
|

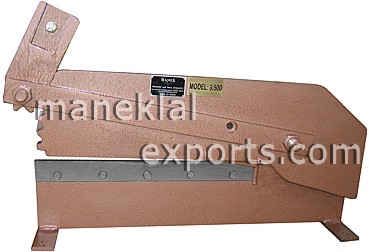

| Model: 3/500 | Model: 4/7R |
|---|
| Model | 6/200 | 5/300 | 4/400 | 3/500 | 4/7R |
|---|---|---|---|---|---|
| Cutting Capacity (M.S.) - Plate (mm) | 3.5 | 4 | 3.5 | 3 | 4 |
| Cutting Capacity (M.S.) - Flat (L x W) (mm) | 40 x 5 | 50 x 5 | 50 x 4 | 50 x 3 | 50 x 5 |
| Cutting Capacity (M.S.) - Round (Diameter) (mm) | 10 | 12 | 13 | 13 | 15 |
| Cutting Capacity (M.S.) - Square (mm) | -- | -- | -- | -- | 15 |
| Approx. Length of Blade (mm) | 175 | 300 | 400 | 500 | 175 |
Standard Accessories:
Sheet Cutting Blade, Ring Blade Round, Ring Blade Square, Handle
Extra Spares:
Extra Sheet Cutting Blade, Ring Blade Round, Ring Blade Square
Geared Lever Shearing Machine with Angle and Tee Cutting Attachments
Model: 8/C
| Model: | 8/C | 8/CH | 10/CH |
|---|---|---|---|
| Cutting Capacity up to, in M.S. (mm) | |||
| Plate: | 6 | 7 | 8 |
| Flat (L x W): | 50 x 8 | 60 x 8 | 75 x 10 |
| Round (Diameter): | 16 | 18 | 20 |
| Square: | 16 | 18 | 20 |
| Tee Cutting: | 50 x 5 | 50 x 6 | 60 x 6 |
| Angle Cutting (in one cut): | 50 x 6 | 60 x 6 | 75 x 6 |
| Approx. Length of Blade (mm): | 175 | 175 | 175 |
Standard Accessories:
Section Blade, Plate Cutting Blade, Round Blade, Square Blade, Plate
Guide for Section, Handle
Extra Spares:
Extra Section Blade, Plate Guide for Section, Plate Cutting Blade,
Round Blade, Square Blade
NOTE: Sections smaller then the machine capacity should not be cut. A separate section blade with plate guide for section should be purchased for every size of section
Heavy Duty Geared Lever Shearing Machine
|
|
| Model: 5S/13R | |
|---|---|
| Model | 5S/13R | 5S/16R |
|---|---|---|
| Cutting Capacity (M.S.) - Plate (mm) | 10 | 12 |
| Cutting Capacity (M.S.) - Flat (L x W) (mm) | 100 x 12 | 75 x 16 |
| Cutting Capacity (M.S.) - Round (Diameter) (mm) | 25 | 28 |
| Cutting Capacity (M.S.) - Square (mm) | 25 | 28 |
| Tee Cutting (mm) | 65 x 6 | 65 x 7 |
| Angle Cutting (in one cut) (mm) | 75 x 8 | 90 x 8 |
| Approx. Length of Blade (mm) | 175 | 175 |
Standard Accessories:
Section Blade, Plate Cutting Blade, Round Blade, Square Blade, Plate
Guide for Section, Handle
Extra Spares:
Extra Section Blade, Plate Guide for Section, Plate Cutting Blade,
Round Blade, Square Blade
NOTE: Sections smaller then the machine capacity should not be cut. A separate section blade with plate guide for section should be purchased for every size of section
Rod Cutting Machines
Model: 50/20
| Model: | 50/20 | 50/26 |
|---|---|---|
| Cutting Capacity up to, in M.S. (mm) | ||
| Round Bar (Diameter): | 18 | 22 |
| Square: | 16 | 20 |
Standard Accessories:
Rod Cutting Blade, Handle
Extra Spares:
Extra Rod Cutting Blades
Punching Machine
Model: 16/10
| Model: | 10/6 | 16/10 |
|---|---|---|
| Cutting Capacity up to, in M.S. (mm) | ||
| Round (Diameter): | 10 | 16 |
| Thickness of plate: | 6 | 8 |
| Depth of Gap: | 87 | 150 |
Standard Accessories:
Set of round die and punch, set of square die and punch, Handle
Extra Spares:
Extra Sets of round die and punch, sets of square die and punch
Combined Punching and Shearing Machines
Model: 30/5R
| Model: | 30/5R | 30/8C | 30/10CH |
|---|---|---|---|
| Cutting Capacity up to, in M.S. (mm) | |||
| Plate: | 3 | 6 | 8 |
| Flat (L x W): | 50 x 4 | 50 x 8 | 75 x 10 |
| Round (Diameter): | 10 | 16 | 20 |
| Square: | -- | 16 | 20 |
| Tee Cutting: | -- | 50 x 5 | 60 x 6 |
| Angle Cutting (in one cut): | -- | 50 x 6 | 75 x 6 |
| Approx. Length of Blade (mm): | 200 | 175 | 175 |
| Punching (Dia.) Capacity (mm): | 10 | 12 | 16 |
| Thickness of Plates (mm): | 6 | 7 | 8 |

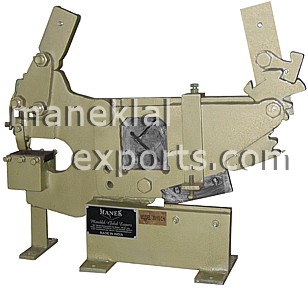

Model: 30/10CH
Standard Accessories:
- Round Punching Die Set
- Square Punching Die Set
- Sheet Blades
- Section Blade (with model 30/10CH)
- Handle
Extra Spares:
- Extra Round Punching Die Set
- Square Punching Die Set
- Sheet Blades
- Section Blade (with model 30/10CH)
NOTE: Sections smaller then the machine capacity should not be cut. A separate section blade with plate guide for section should be purchased for every size of section
GENERAL NOTE:
- Cutting capacity of Shears mentioned above are for prime quality Mild Steel Plates, Flats, Rounds, Squares and Sections
- Hard material having more carbon content may reduce cutting capacity and damage blades
- Spares, if required, can be supplied at additional cost
- In ratchet type shearing and rod cutting machines, the cut is made on number of strokes
- In the rod cutting machine, the cut cannot be smooth and clean, as it is made by cropping process
