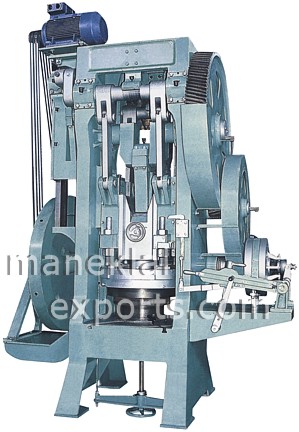

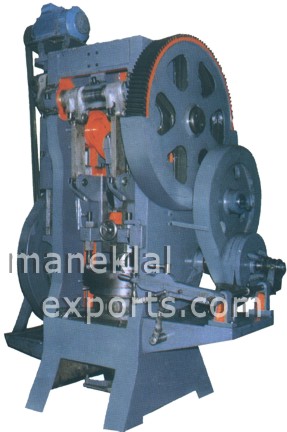

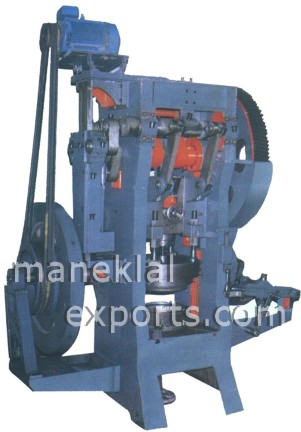

| Press Number | 4.5 | 5 | 5.5 | 6 | 6.5 | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|---|
| Diameter of Crankshaft | 5 3/8" | 5 3/4" | 6 1/2" | 7 1/2" | 7 3/4" | 8 1/2" | 10" | 12" | 14" |
| Largest Blank Admitted | 21" | 24" | 30" | 32" | 34" | 38" | 48" | 54" | 60" |
| Largest Punch Admitted | 14" | 18" | 22" | 24 1/2" | 27" | 30" | 36" | 42" | 48" |
| Deepest Draw | 6" | 7 1/2" | 9" | 11" | 12" | 13" | 16" | 18" | 21" |
| Stroke per Minute (usual) | 10 | 8 | 7 | 6 | 6 | 5 | 4 | 3 | 2 |
| Stroke of Punch | 12" | 15" | 19" | 22" | 24" | 26" | 30" | 36" | 42" |
| Stroke of Outer Slide (usual) | 8 3/4" | 10" | 12" | 14" | 14" | 16" | 17" | 20" | 22" |
| Adjustment of Pressure Plate | 4 1/2" | 5" | 5 1/2" | 6" | 6" | 7" | 8" | 9" | 10" |
| Adjustment of Punch Holder | 5 1/2" | 6 1/2" | 8" | 9" | 10" | 11" | 12" | 13" | 14" |
| Hole through Bed | 11 1/2" | 14 1/2" | 17" | 18 1/2" | 19" | 22" | 28" | 32" | 36" |
| Bed Size (R to L) | 23" | 27" | 32" | 34" | 36" | 40" | 51" | 57" | 63" |
| Bed Size (F to B) | 28" | 33" | 37" | 41" | 41" | 48" | 58" | 64" | 70" |
| Motor (HP) | 15 | 20 | 30 | 40 | 40 | 50 | 60 | 75 | 100 |
| Motor (RPM) | 960 | 960 | 960 | 960 | 960 | 960 | 960 | 960 | 960 |
| Motor Pulley Diameter | 6" | 7" | 7" | 7" | 7" | 8" | 9" | 10" | 10" |
| Motor Pulley Section | C | C | C | D | D | D | D | D | D |
| No. of V Belts | 3 | 4 | 4 | 4 | 4 | 4 | 5 | 5 | 5 |
| Overall Height with Motor | 10' | 11' | 13' | 15' | 15' | 17' | 18' | 21' | 24' |
| Net Weight (Kilos) | 5000 | 7500 | 11000 | 14500 | 15000 | 21000 | 24000 | 26000 | 28000 |
* Note: Press Number 6 onwards shipped in open condition (unpacked)
Standard Accessories: Motor, Starter and ‘V’ Belts
|
|
