Circle / Disc Cutting Machines
Circle / Disc Cutting Motorized Machines
- Steel Fabricated Body
- Inclined cutter axis for burr free cutting
- Thrust bearing centre obtains circle without centre mark

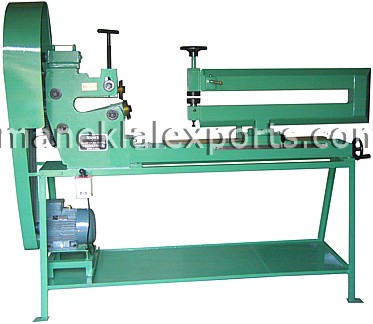

Model: HCC-48H
Specifications:
| Model: | HCC-24 | HCC-24H | HCC-36 | HCC-36H | HCC-48 | HCC-48H |
|---|---|---|---|---|---|---|
| Circle diameter: | 5" - 24" (130 - 600 mm) | 8" - 24" (200 - 600 mm) | 5" - 36" (130 - 910 mm) | 8" - 36" (200 - 910 mm) | 6" - 48" (150 - 1220 mm) | 8" - 48" (200 - 1220 mm) |
| Max. Sheet Thickness in Mild Steel: | 14 SWG (2.0 mm) | 10 SWG (3.2 mm) | 14 SWG (2.0 mm) | 10 SWG (3.2 mm) | 14 SWG (2.0 mm) | 10 SWG (3.2 mm) |
| Max. Sheet Thickness in Stainless Steel: | 20 SWG (0.9 mm) | 16 SWG (1.6 mm) | 20 SWG (0.9 mm) | 16 SWG (1.6 mm) | 20 SWG (0.9 mm) | 16 SWG (1.6 mm) |
| Motor (HP): | 1.0 | 2.0 | 1.0 | 2.0 | 2.0 | 3.0 |
| Net / Gross Weight (Kg): | 300 / 400 | 350 / 450 | 350 / 450 | 400 / 500 | 400 / 500 | 500 / 600 |
| Dimensions (m): | 1.6 x 0.8 x 1.6 | 1.6 x 0.8 x 1.6 | 1.7 x 0.8 x 1.9 | 1.7 x 0.8 x 1.9 | 2.2 x 0.8 x 1.9 | 2.2 x 0.8 x 1.9 |
| Shipping Volume (m3 ): | 2.1 | 2.1 | 2.6 | 2.6 | 3.4 | 3.4 |
Standard Accessories:
WPS Steel Cutters, Motor, Starter and 'V'
Belts.
Optional Accessories:
Spare set of Cutters,
High-Speed Steel Cutters, Strip Cutting Gauge, Spare Thrust Bearing Centre
|
|

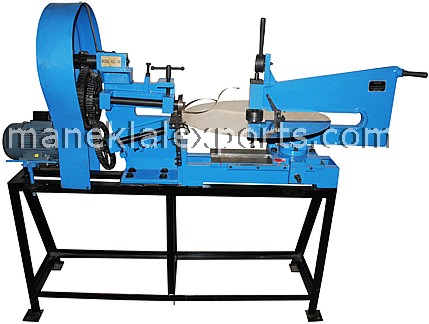

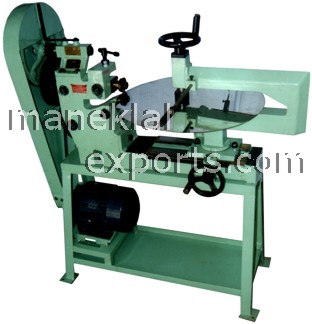

| 'HCC' Series Motorized Machines | 'HCC' Series Motorized Machines |
|---|
VIDEO OF CIRCLE / DISC CUTTING MACHINE MODEL: HCC-48H
VIDEO OF CIRCLE / DISC CUTTING MACHINE MODEL: HCC-24
Circle / Disc Cutting Manual Machines
- Rigid C. I. construction
- Inclined cutter axis for burr free cutting
- Thrust bearing centre obtains circle without centre mark
|
|

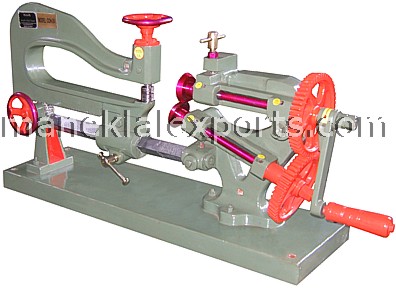

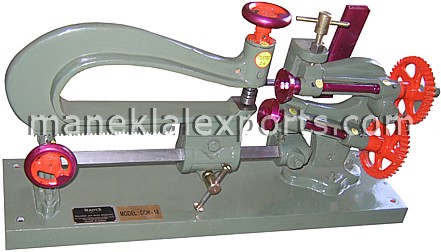

| Hand Operated Machine Model: CCH-24 | Hand Operated Machine Model: CCH-18 |
|---|
Specifications:
| Model: | CCH-15 | CCH-18 | CCH-24 | CCH-36 |
|---|---|---|---|---|
| Circle diameter: | 3" - 15" (80 - 380 mm) | 3" - 18" (80 - 455 mm) | 4" - 24" (100 - 600 mm) | 5" - 36" (130 - 910 mm) |
| Max. Sheet Thickness in Mild Steel: | 20 SWG (0.9 mm) | 20 SWG (0.9 mm) | 18 SWG (1.2 mm) | 18 SWG (1.2 mm) |
| Net / Gross Weight (Kg): | 35 / 55 | 65 / 90 | 70 / 100 | 130 / 175 |
| Shipping Volume (m3 ): | 0.13 | 0.22 | 0.22 | 0.42 |
Standard Accessories: WPS Steel Cutters. Optional Accessories: Spare set of Cutters, High-Speed Steel Cutters, Strip Cutting Gauge, Spares Thrust Bearing Centre
VIDEO OF CIRCLE / DISC CUTTING MACHINE MODEL: CCH-24
