Ice Cream Cone Baking Machinery

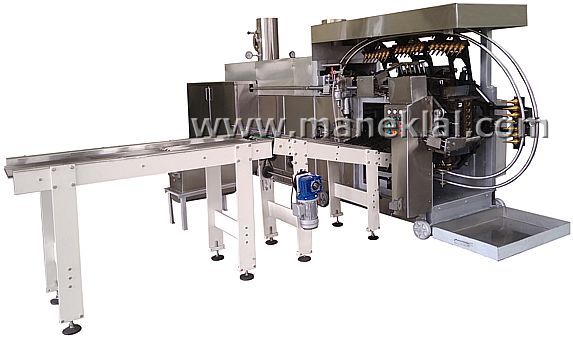

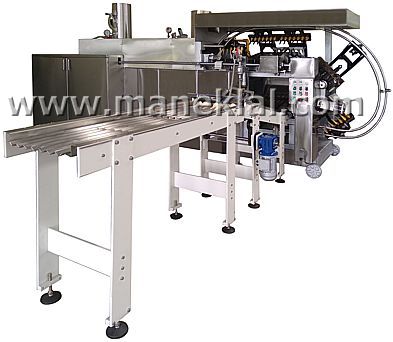

Automatic Cone Making Machine

Model: ACG-18

ACG Series, Fully Automatic machines deliver stacked cones / cups and moulded cones ready for packing
The machines have 12 / 18 / 24 / 30 or 36 moulds of special cast alloy each with 3 to 11 cavities depending on the cone size
An adjustable automatic pump guarantees precise and uniform injection of dough into the moulds
A stepless variable speed drive controls cycle, time and speed
A Scraping Knife trims off excess batter, after which the cones are ejected, discharged and stacked
Choice of heating by gas or with electricity
Special walled construction and thermal insulation ensures energy efficiency
Machine requires five workers to run it

Model:	ACG-12	ACG-18	ACG-24	ACG-30	ACG-36
Number of Sets of Moulds	12	18	24	30	36
Electrical Load in kW (in case of heating by LPG Gas):	3.2	3.2	3.2	3.2	3.2
LPG Gas Consumption (Kg. / Hour):	5 - 5	8 - 10	12 - 15	14 - 16	15 - 20
Approximate Dimensions (m): (without automatic stacking device)	3.5 x 1.1 x 1.7	4.3 x 1.1 x 1.7	5.5 x 1.1 x 1.7	6.7 x 1.1 x 1.7	7.6 x 1.1 x 1.7
Net / Gross Weight (kg.):	3000 / 4250	4000 / 5250	5000 / 6500	6000 / 7500	7000 / 8500
Shipping Volume (m³ ):	13.00	18.00	25.00	36.00	45.00

Model:	ACG-12	ACG-18	ACG-24	ACG-30	ACG-36
Cone diameter up to 29 mm (11 cones / mould):	5250 cones/hr	7900 cones/hr	10500 cones/hr	13200 cones/hr	15800 cones/hr
Cone diameter up to 32 mm (10 cones / mould):	4800 cones/hr	7200 cones/hr	9600 cones/hr	12000 cones/hr	14400 cones/hr
Cone diameter up to 36 mm (9 cones / mould):	4300 cones/hr	6500 cones/hr	8600 cones/hr	10800 cones/hr	13000 cones/hr
Cone diameter up to 41 mm (8 cones / mould):	3850 cones/hr	5800 cones/hr	7700 cones/hr	9600 cones/hr	11600 cones/hr
Cone diameter up to 47 mm (7 cones / mould):	3350 cones/hr	5000 cones/hr	6700 cones/hr	8400 cones/hr	10000 cones/hr
Cone diameter up to 56 mm (6 cones / mould):	2850 cones/hr	4300 cones/hr	5700 cones/hr	7200 cones/hr	8600 cones/hr
Cone diameter up to 68 mm (5 cones / mould):	2400 cones/hr	3600 cones/hr	4800 cones/hr	6000 cones/hr	7200 cones/hr

Batter Depositor	Stripping Device / Cone Ejector	Gas Burner

VIDEO OF AUTOMATIC ICE CREAM CONE MAKING MACHINE MODEL: ACG-18

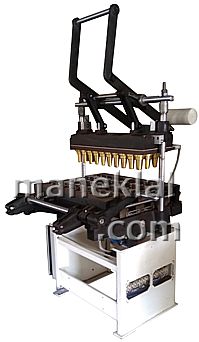

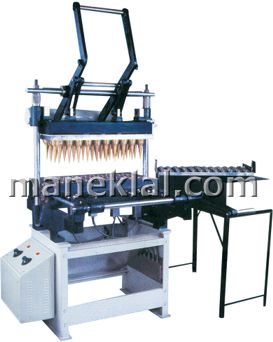

Model: GE-500

Semi-Automatic machine for baking Ice Cream Cones, Cups and deep hollow Wafers
Can also be used to make moulded sugar cones
Depending on the diameter and type of the product, lower section of mould consists of three to six rows
Cones are automatically ejected into a container to be placed below the machine
Machines requires low skill and only basic training to operate training

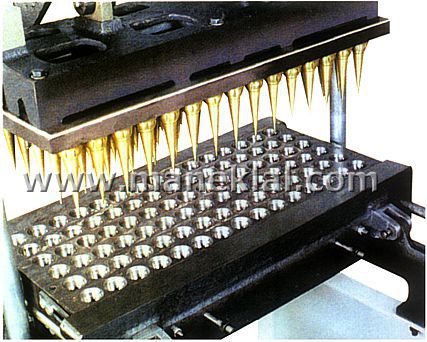

Machine consists of One Mould which can produce only one type of cone, however, the machine is designed for quick change-over of mould to produce different type of cone

Model:	GE-500
Electrical Connected Load:	10 to 15 kW
Hourly Power Consumption:	7 to 12 kW
Production per hour:	For cone diameter 20 mm (146 cones / mould): 4380 cones / hour For cone diameter 24 mm (130 cones / mould): 3900 cones / hour For cone diameter 27 mm (116 cones / mould): 3480 cones / hour For cone diameter 30 mm (96 cones / mould): 2880 cones / hour For cone diameter 38 mm (70 cones / mould): 2100 cones / hour For cone diameter 42 mm (60 cones / mould): 1800 cones / hour For cone diameter 46 mm (44 cones / mould): 1320 cones / hour For cone diameter 56 mm (40 cones / mould): 1200 cones / hour
Net / Gross Weight:	500 / 600 kg.
Approximate Dimensions:	1.3 x 1.1 x 1.6 m
Shipping Volume:	2.5 m³

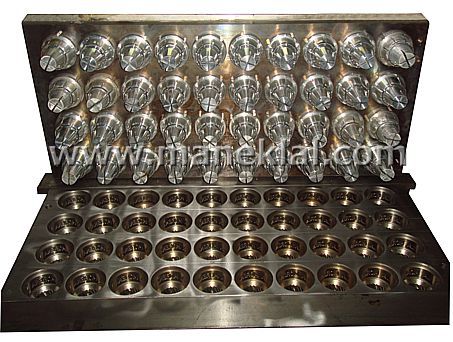

Die / Mould for Cup Cones

VIDEO OF SEMI-AUTOMATIC ICE CREAM CONE MAKING MACHINE MODEL: GE-500

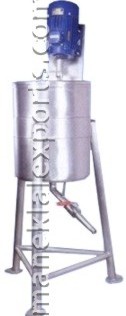

Batter Mixer Model: BM-60
