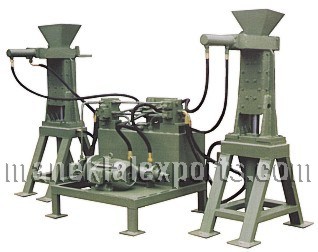

Interlock Wall Block Making Machine
Features of the Block:
- Eco-Friendly soil cement blocks
- Innovative design
- No mortar
- No Plastering
- Speedy Construction
- Aesthetic Look
Features of the Machine:
- Most suitable for making interlock blocks with 90% soil and 10% cement combination
- Hardened and Hardchromed mould inner wear plates
- Any type of mould as per requirement
- Two separate working stations powered by a 10 HP hydraulic power pack
- Each station (mould) has a separate hand operated valve to activate pressing and lid cylinders
| Model: | ILWB-20 |
|---|---|
| Pressing Capacity: | 20 Tons |
| Number of Stations: | 2 |
| Production Rate: | 30 seconds / cycle |
| Production Capacity in 8 hours: | 1000 blocks of size 10" x 8" x 5" 1500 blocks of size 8" x 9" x 4" 3000 blocks of size 9" x 4" x 3" |
| Motor: | 10 HP |
Standard Accessories:
- Electric motor
- Hydraulic power pack
Optional Accessories:
- Block moulds of required sizes
Auxiliary Equipment:
- Pan Mixer Model: PMX-150
- Pulveriser with 7.5 HP motor
- Screener with 0.5 HP motor
