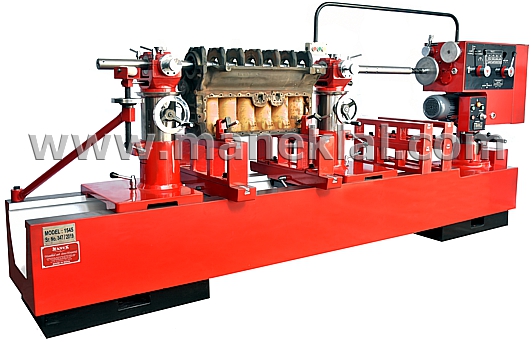

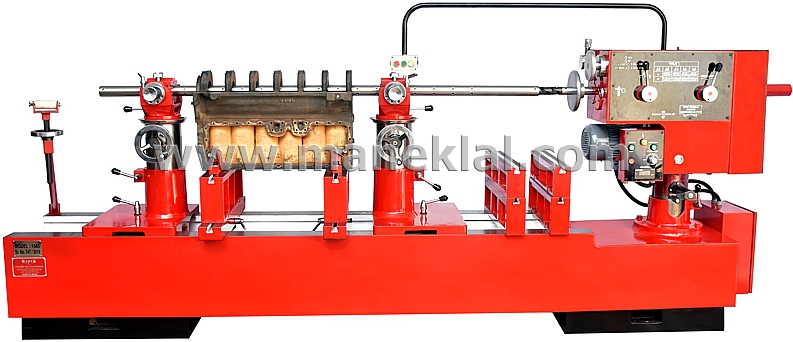

Line Boring Machines

Model:	LINEBORE-1545	LINEBORE-1800	LINEBORE-2400
Maximum Length of Block:	1545 mm	1800 mm	2400 mm
Distance from Built-in Parallels to Boring Bars Max / Min:	815 / 515 mm	815 / 515 mm	815 / 515 mm
Boring Capacity with standard boring bars:	34 - 150 mm	45 - 225 mm	45 - 225 mm
Boring Capacity with extra boring bars of 22 mm:	From 26 mm	From 26 mm	From 26 mm
Boring Capacity with extra boring bars of 60 mm:	Up to 225 mm	--	--
Spindle Speeds - infinitely variable in 2 steps:	50 - 750 rpm	50 - 750 rpm	50 - 750 rpm
Feed in both directions (automatic and manual) Roughening / Finishing:	0.15 / 0.04 mm	0.15 / 0.04 mm	0.15 / 0.04 mm
Max. travel of boring bar:	325 mm	325 mm	325 mm
Additional travel with Optional Extension Bar:	260 - 325 mm	260 - 325 mm	260 - 325 mm
Drive Motor:	1.5 HP	2.0 HP	2.0 HP
Net / Gross Weight:	2200 / 3000 kg	2700 / 3500 kg	2900 / 3750 kg
Overall Dimensions:	4.0 x 1.5 x 1.0 m	4.3 x 1.5 x 1.0 m	4.9 x 1.5 x 1.0 m
Shipping Volume:	6.0 m³	6.5 m³	7.5 m³

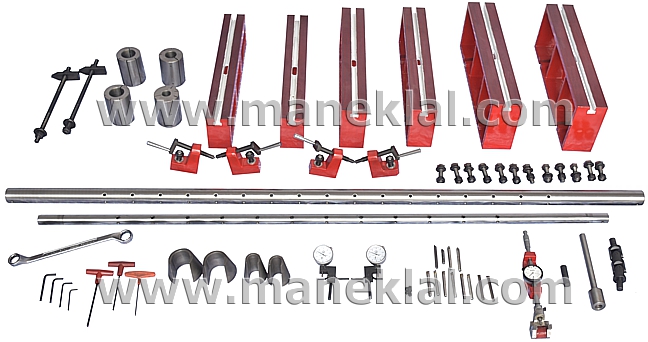

Model: LINEBORE-1545	Dial Micrometer with Magnetic Base for Tool Setting

Permanent Parallels, Parallels 130 mm, Parallels 160 mm high, Parallels 200 mm high
Bearings for boring bars (4 pcs.)
Tapered centering cones (4 pcs.)
Boring bars (30 and 50 mm with Linebore-1545 / 40 and 60 mm with Linebore-1800 & Linebore-2400)
Boring Bar Rest
Dial Micrometer with Magnetic Base for Tool Setting
Centering device with Dial Indicator (2 nos.)
Boring Facing and Chamfering Tools (12 pcs.)
Clamping Bolts
Spanners / Allan Keys
Electric Motor
Control Panel

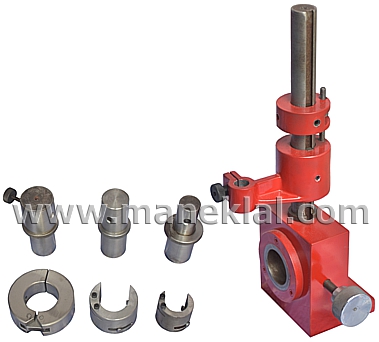

Optional: Tool-Setting device for cutter heads

Video 1: Lineboring Machine Model: Linebore-1545

Video 2: Lineboring Machine Model: Linebore-1545
